30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) GOVERNOR Parts Diagram

ProLine Rear-Engine Riding Mower

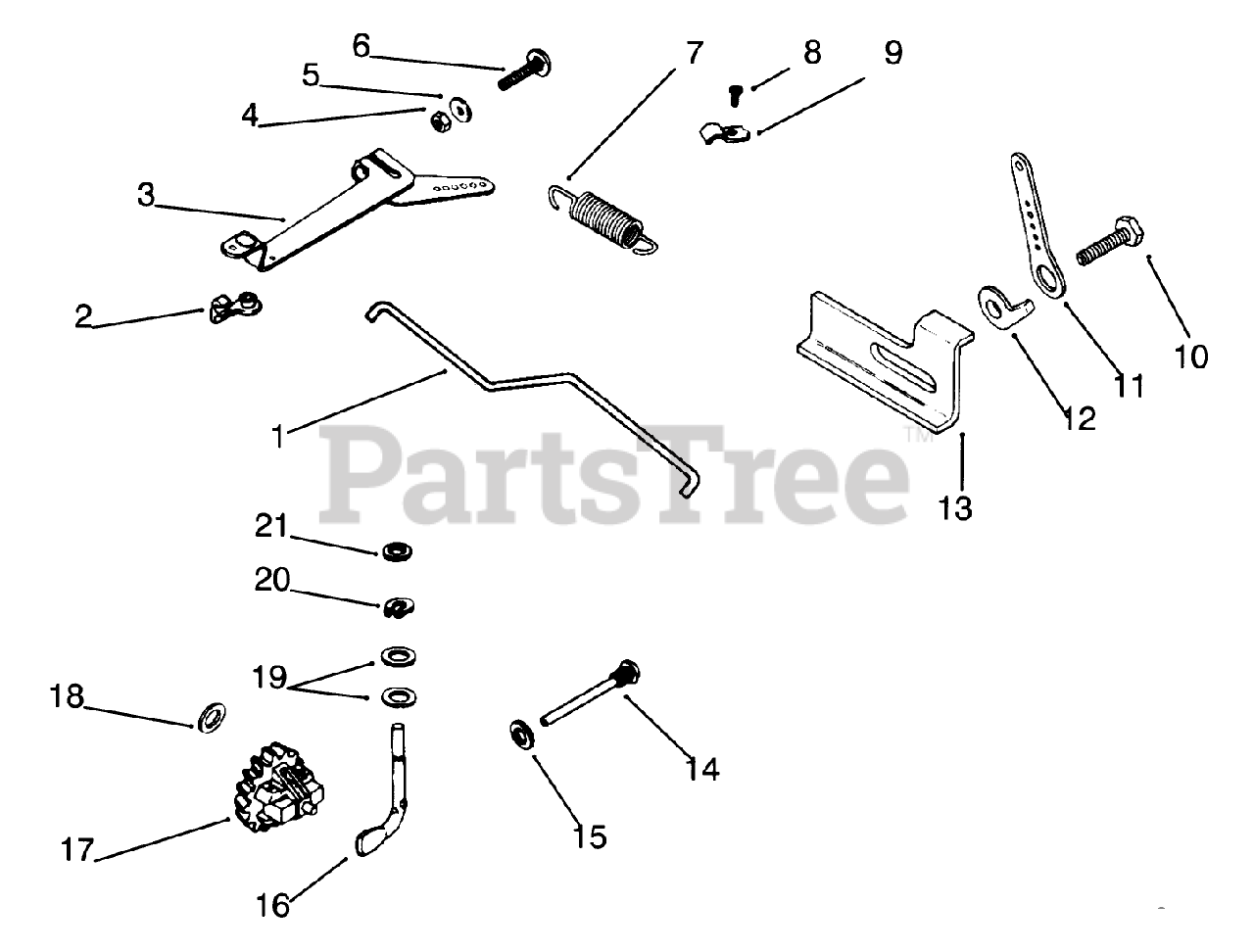

GOVERNOR Parts Diagram

  • Title

1

Toro 82_755_07

Kit-Governor Linkage (Incl. Ref. #2)

$

$

Currently unavailable

2

Toro 25_158_09

Bushing

$

$

Currently unavailable

3

Toro 52_186_06

Arm-Governor

$

$

Currently unavailable

4

Toro x-81-1

Nut

$

$

Currently unavailable

5

Kohler X-25-72

Washer
(Superseded to X-25-72-S)

$3.99

$

In Stock, only 1 left!

0

6

Toro 52_211_04

Screw-Round Hd.

$

$

Currently unavailable

7

Toro 52_091_04

Spring-Governor

$

$

Currently unavailable

8

Kohler 235778

Clip
(Superseded to 235778-S)

$10.99

$

Usually ships in 2-5 days

0

9

Toro x-67-97

Screw

$

$

Currently unavailable

10

Kohler X-67-62

Screw
(Superseded to X-67-62-S)

$3.49

$

Usually ships in 2-5 days

0

11

Toro 52_119_01

Lever-Speed Control

$

$

Currently unavailable

12

Kohler 234614

Stop-Govenor
(Superseded to 234614-S)

$

$

Not available

13

Toro 52_531_02

Stop-High Speed

$

$

Currently unavailable

14

Kohler 231355

Pin-GovemorStop
(Superseded to 231355-S)

$10.99

$

Usually ships in 2-5 days

0

15

Kohler X-25-12

Washer
(Superseded to X-25-12-S)

$3.49

$

In Stock, only 2 left!

0

16

Toro 52_078_04

Shaft-Govenor

$

$

Currently unavailable

17

Kohler A-235743-S

Governor Gear

$79.99

$

Usually ships in 2-5 days

0

18

Kohler 237022

Washer
(Superseded to 237022-S)

$7.49

$

Usually ships in 2-5 days

0

19

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

20

Kohler X-269-28

Retainer-Governor
(Superseded to X-269-28-S)

$3.99

$

Usually ships in 2-5 days

0

21

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 5

0
