30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) FUEL PUMP Parts Diagram

ProLine Rear-Engine Riding Mower

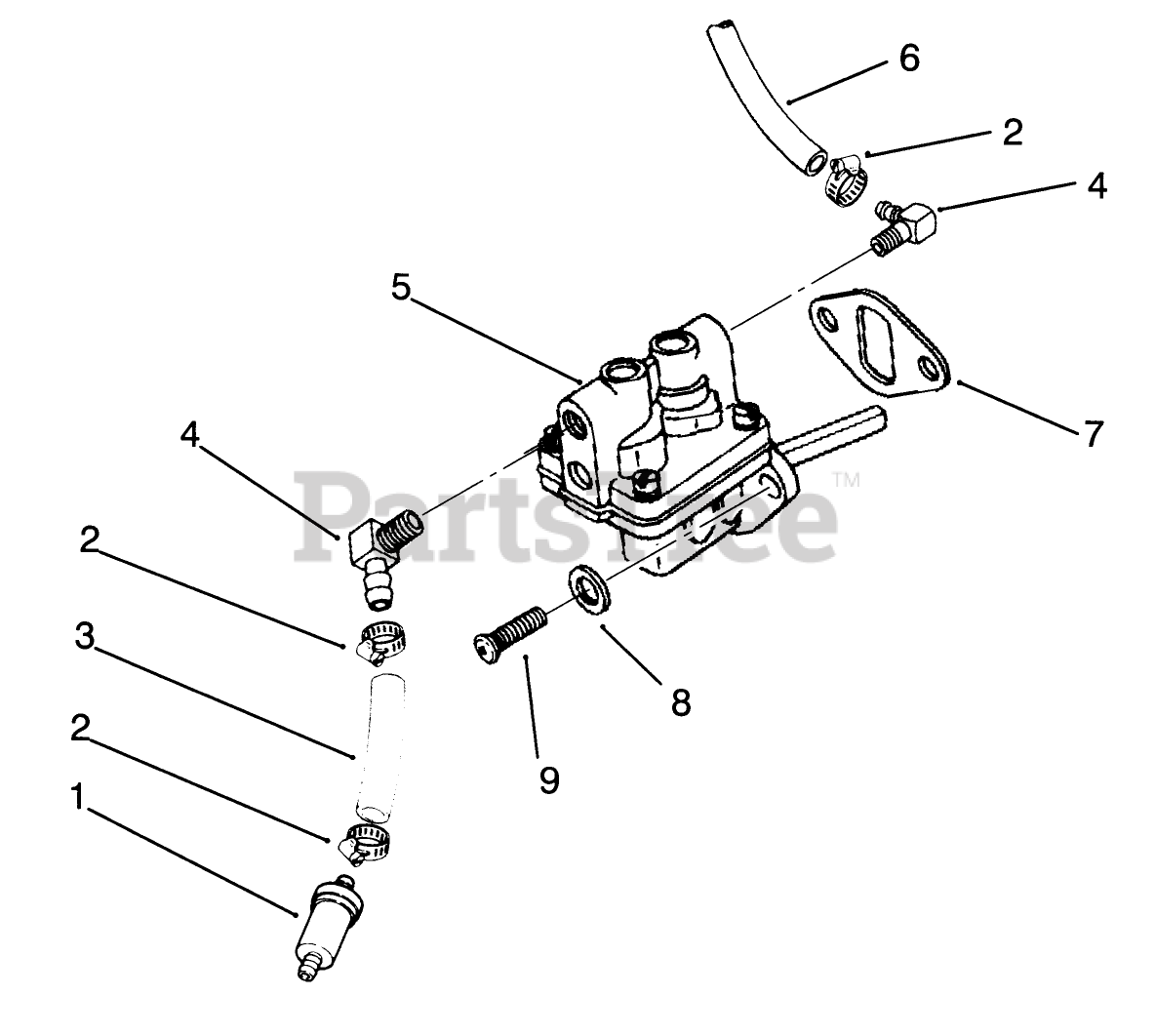

FUEL PUMP Parts Diagram

  • Title
1

Toro 45_050_01

Filter-Fuel

$

$

Currently unavailable

2

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

3

Toro 25_353_10

Line-Fuel

$

$

Currently unavailable

4

Toro 25_155_02

Connector-90deg.

$

$

Currently unavailable

5

Toro 52_559_01

Fuel Pump Assembly (Incl. Ref. #7 & 8)

$

$

Currently unavailable

$

$

Currently unavailable

7

Toro 25_041_05

Gasket-Fuel Pump

$

$

Currently unavailable

8

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

9

Toro 47_086_08

Screw-T.H.

$

$

Currently unavailable
