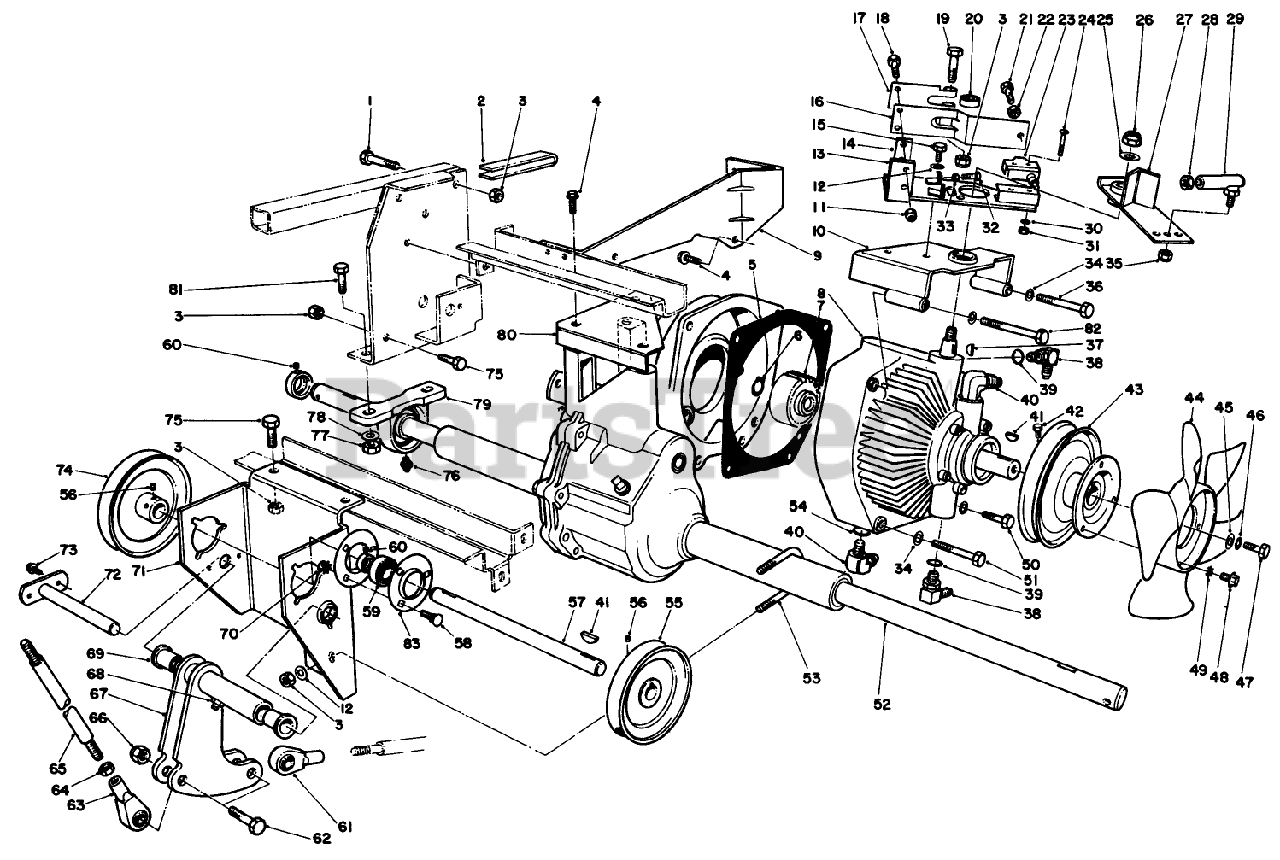

30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) TRANSMISSION & DIFFERENTIAL ASSEMBLY Parts Diagram

ProLine Rear-Engine Riding Mower

TRANSMISSION & DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title

1

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

2

Toro 80-3750

TUBE SPACER

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

5

Toro 55-4320

TRANS GASKET
(Superseded to 108319)

$10.99

$

In Stock, only 2 left!

0

6

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

7

Toro 54-0320

GEAR-SPUR

$

$

Not available

8

Toro 54-0080

HYDROSTATIC TRANS.

$

$

Not available

9

Toro 59-1620

Bracket-Transaxle
(Superseded to 59-1620-03)

$

$

Not available

10

Toro 54-2550

TR CONT BRKT WA B

$

$

Not available

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 66-1430

TRACT PLATE WA B

$

$

Not available

14

Toro 51-3150

SHIM-ARM, SPRING

$6.99

$

Usually ships in 3-6 days

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

16

Toro 29-6170

EXTENDED LEAF SPRING ASM

$51.99

$

Usually ships in 3-6 days

0

17

Toro 29-6150

SPRING-LEAF
(Superseded to 110-9650)

$45.99

$

Usually ships in 3-6 days

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 251-259

BEARING-BALL

$16.99

$

In Stock, only 4 left!

0

21

Toro 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 6

0

22

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

23

Toro 29-6162

SWITCH-MICRO

$129.99

$

Usually ships in 3-6 days

0

24

Toro 3249-11

SCREW-MACHINE

$0.99

$

Usually ships in 3-6 days

0

25

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

0

27

Toro 66-1420

TRACT LEVER WA B

$

$

Not available

28

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

29

Toro 2411-34

JOINT-BALL

$30.99

$

Usually ships in 3-6 days

0

30

Toro 3254-9

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

31

Toro 3217-16

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

32

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

33

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

34

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0

35

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

36

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

37

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

38

Toro 353-511

Fitting-Hydraulic 90deg. (Incl. Ref. #39)

$38.99

$

Usually ships in 3-6 days

0

39

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

40

Toro 353-370

Fitting-Hydraulic 90deg. (Incl. Ref. #54)

$78.99

$

Usually ships in 3-6 days

0

41

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

42

Toro 3241-2

SCREW-SQH
(Superseded to 3241-7)

$3.99

$

In Stock, only 2 left!

0

43

Toro 54-0930

TRANS PULLEY

$

$

Not available

44

Toro 54-0240

FAN 8"

$

$

Not available

45

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, only 1 left!

0

46

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

47

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

48

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

49

Toro 3255-5

WASHER-LOCK/EXT

$

$

Not available

50

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

51

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

52

Toro 13-5969

Differential Assembly
(Superseded to 98-2850)

$

$

Not available

53

Toro 54-8970

U-BOLT

$

$

Not available

54

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

55

Toro 54-2380

JACKSHAFT INPUT PULLEY

$109.99

$

Usually ships in 3-6 days

0

56

Toro 3241-1

SCREW-SET, SQH

$28.99

$

Usually ships in 3-6 days

0

57

Toro 54-1600

JACKSHAFT

$215.99

$

Usually ships in 3-6 days

0

58

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

59

Toro 251-288

BEARING-BALL

$100.99

$

In Stock, only 3 left!

0

60

Toro 3245-35

SCREW-SET, HSH

$0.99

$

In Stock, Qty 10

0

61

Toro 251-304

BALL JOINT LH

$89.99

$

Usually ships in 3-6 days

0

62

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

63

Toro 251-305

BALL JOINT RH

$89.99

$

In Stock, only 2 left!

0

64

Toro 3220-4

NUT-JAM

$2.99

$

Usually ships in 3-6 days

0

65

Toro 54-1490

Rod-Steering
(Superseded to 54-1490-03)

$

$

Not available

66

Toro 32152-9

NUT-HEX

$9.49

$

Usually ships in 3-6 days

0

67

Toro 54-2060

Bellcrank Assembly (Incl. Ref. #68 & 69)

$

$

Not available

68

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

69

Toro 46-6680

BUSHING PM

$27.99

$

In Stock, only 1 left!

0

70

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

71

Toro 60-9130

Bracket-Jackshaft
(Superseded to 60-9130-03)

$

$

Not available

72

Toro 59-1470

Shaft-Bellcrank
(Superseded to 59-1470-03)

$

$

Not available

73

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

74

Toro 54-2390

JACKSHAFT OUTPUT PULLEY

$

$

Not available

75

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

76

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

77

Toro 33296-44

Nut-Lock

$

$

Currently unavailable

78

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

79

Toro 72-4060

BEARING - PILLOW BLOCK

$

$

Not available

80

Toro 60-8990

TRANSAXLE PLATE

$

$

Not available

81

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

82

Toro 323-40

SCREW-HH

$

$

Not available

83

Toro 251-341

FLANGE

$19.99

$

In Stock, only 2 left!

0
