30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) IGNITION Parts Diagram

ProLine Rear-Engine Riding Mower

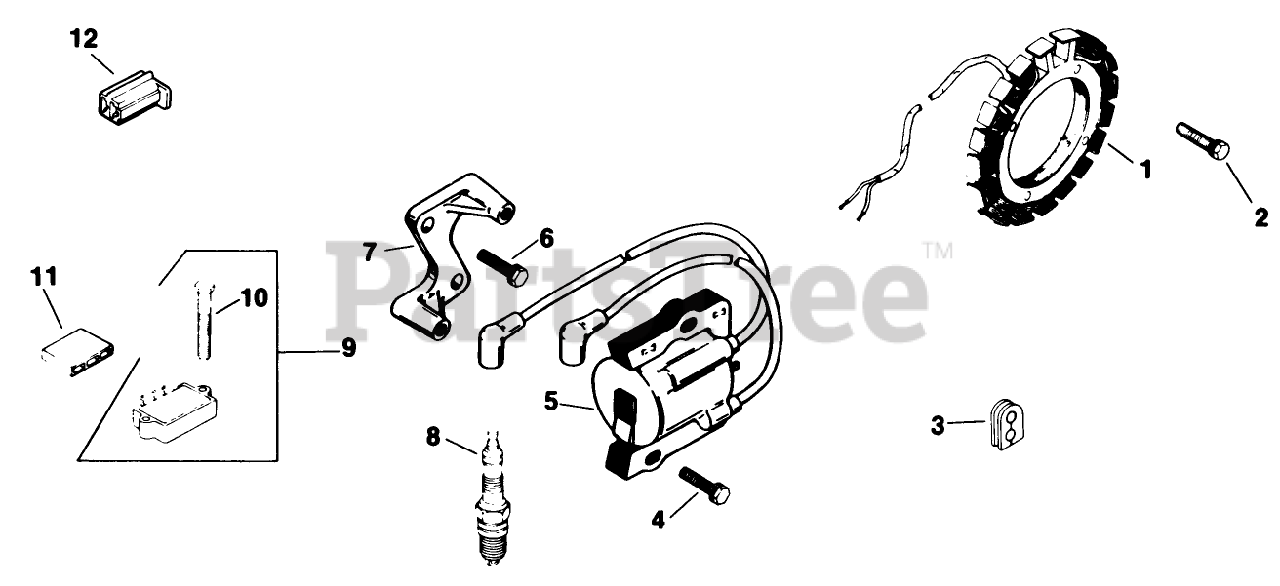

IGNITION Parts Diagram

  • Title

1

Kohler 237878

Stator
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 7

0

2

Kohler X-67-51

Screw
(Superseded to X-67-51-S)

$3.49

$

Usually ships in 2-5 days

0

3

Toro 52-313-02

Grommet

$

$

Currently unavailable

4

Toro 25-086-15

Screw-Hex Washer Hd.

$

$

Currently unavailable

5

Toro 52-584-02

Module-Ignition

$

$

Currently unavailable

6

Toro 25-086-16

Screw-Hex Washer Hd.

$

$

Currently unavailable

7

Toro 52-126-08

Bracket-Module

$

$

Currently unavailable

8

Toro 52-132-02

Plug-Spark

$

$

Currently unavailable

9

Toro 25-755-03

Kit-Rectifier/Regulator (Incl. Ref. #10)

$

$

Currently unavailable

10

Kohler X-132-5

Screw
(Superseded to X-132-5-S)

$3.49

$

In Stock, only 1 left!

0

11

Kohler 236602

Connector
(Superseded to 236602-S)

$24.99

$

In Stock, only 1 left!

0

12

Toro 41_155-03

Connector

$

$

Currently unavailable

Toro 25_518-05

Lead-Black Rectifier/Regulator (5"-14 gauge push on tab terminals)

$

$

Currently unavailable

Toro 52_518_17

Lead-White Module to Connector (12-1/2"-18 gauge insulated push on tab uninsulated push on tab terminals)

$

$

Currently unavailable
