30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) ELECTRIC START-ENGINE KOHLER MODEL NO. M18QS-24657 Parts Diagram

ProLine Rear-Engine Riding Mower

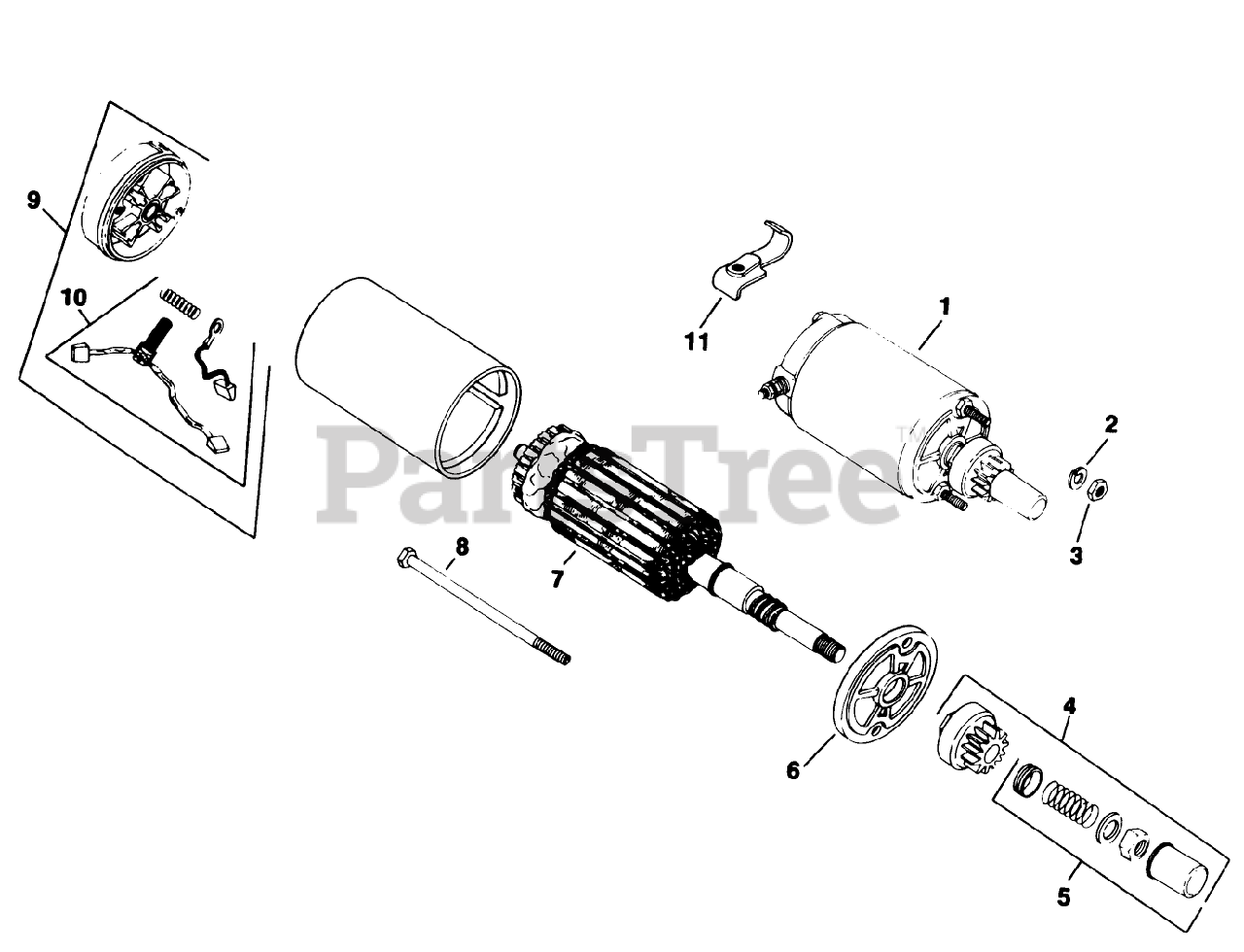

ELECTRIC START-ENGINE KOHLER MODEL NO. M18QS-24657 Parts Diagram

  • Title
1

Toro 52_098_06

Starter Assy. (Incl. Ref. #4-10)

$

$

Currently unavailable

2

Toro X-20-1

Washer

$

$

Currently unavailable

3

$

$

Currently unavailable

4

Toro 52_755_05

Kit-Drive (Incl. Ref. #5)

$

$

Currently unavailable

5

Toro 52_755_08

Kit-Drive Parts

$

$

Currently unavailable

6

Toro 52_227_01

Cap-Drive End

$

$

Currently unavailable

7

Toro 52_170_03

Armature

$

$

Currently unavailable

$

$

Currently unavailable

9

Toro 52_227_07

Cap-Commutator End (Incl. Ref. #10)

$

$

Currently unavailable

10

Toro 52_755_15

Kit-Brush

$

$

Currently unavailable

11

Toro 52_126_09

Bracket-Mounting

$

$

Currently unavailable

Toro 25_450_03

Tag-Caution

$

$

Currently unavailable
