30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) CUTTING UNIT MODEL NO. 30768 Parts Diagram

ProLine Rear-Engine Riding Mower

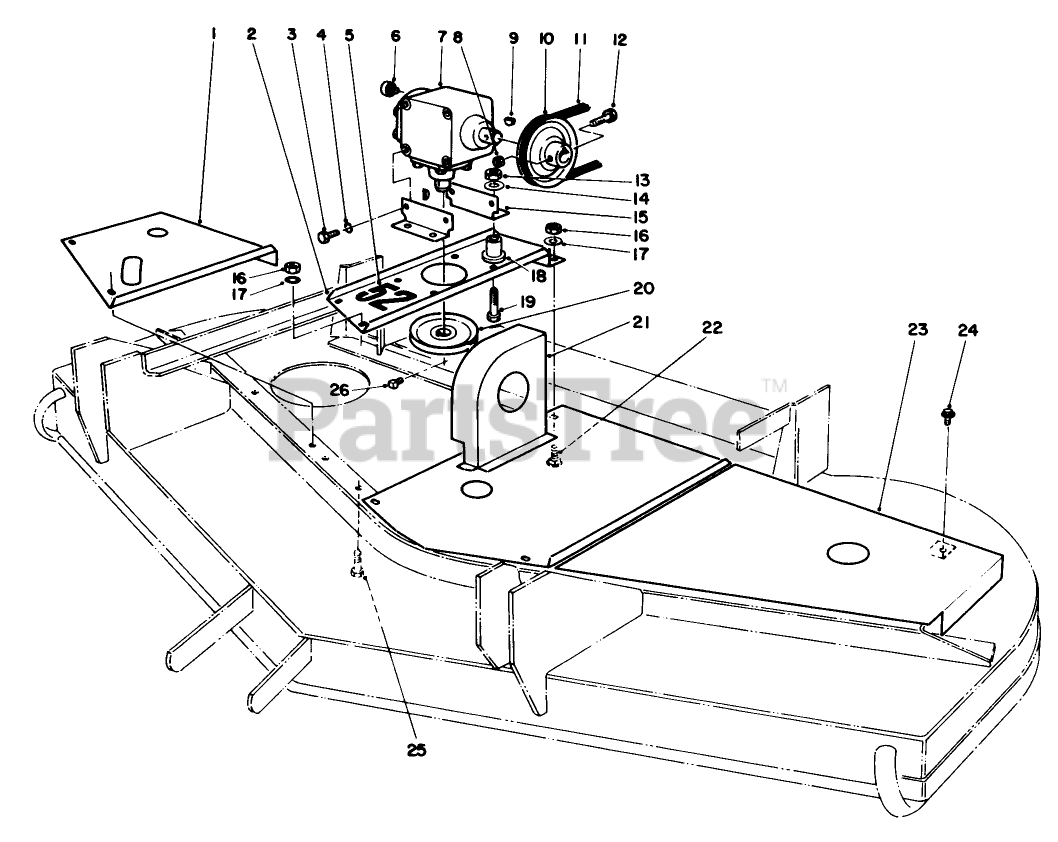

CUTTING UNIT MODEL NO. 30768 Parts Diagram

  • Title

1

Toro 56-5870

RH COVER WA R

$

$

Not available

2

Toro 63-9800

GEARBOX BASE

$

$

Not available

3

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

4

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 51-3960

DECAL

$27.99

$

Usually ships in 3-6 days

0

6

Toro 302-34

FITTING-LUBE

$11.99

$

Usually ships in 3-6 days

0

7

Toro 53-4600

Gear Box
(Superseded to 53-4600-01)

$

$

Not available

8

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3257-14

KEY

$6.99

$

Usually ships in 3-6 days

0

10

Toro 62-5940

PULLEY

$195.99

$

Usually ships in 3-6 days

0

11

Toro 56-5570

V-BELT, DECK

$43.99

$

Usually ships in 3-6 days

0

12

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

14

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

15

Toro 63-9810

Bracket Mounting
(Superseded to 63-9810-01)

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 63-9750

MOUNT

$20.99

$

In Stock, only 3 left!

0

19

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 62-5410

PULLEY

$149.99

$

Usually ships in 3-6 days

0

21

Toro 56-5840

CENTER COVER WA R

$

$

Not available

22

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

23

Toro 56-5860

LH COVER WA R

$

$

Not available

24

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

25

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 3241-1

SCREW-SET, SQH

$28.99

$

Usually ships in 3-6 days

0
