30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) CUTTING UNIT MODEL NO. 30544 Parts Diagram

ProLine Rear-Engine Riding Mower

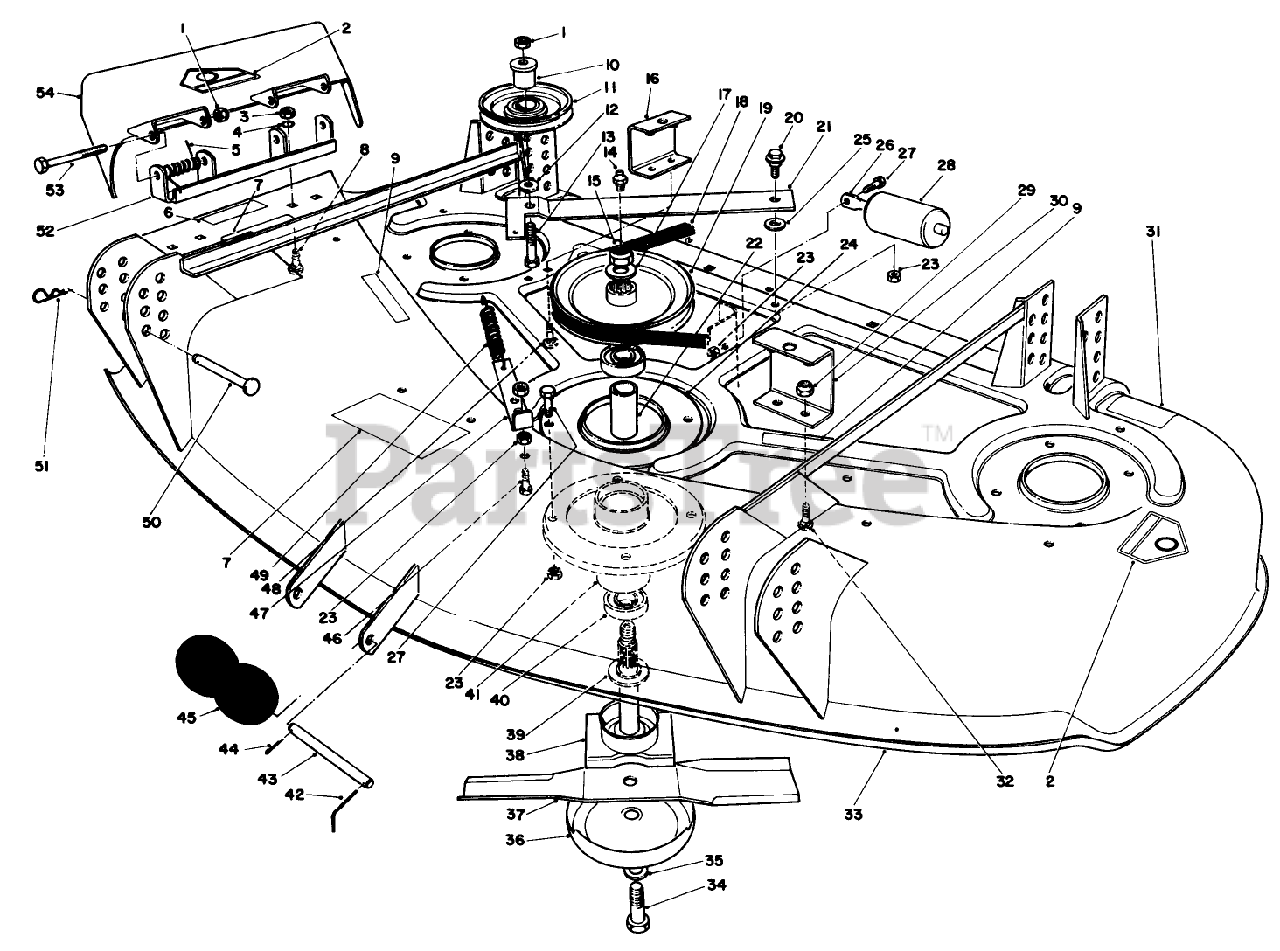

CUTTING UNIT MODEL NO. 30544 Parts Diagram

  • Title
1

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

2

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

3

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

4

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

6

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

7

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

8

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

9

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

10

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

11

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

12

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

13

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

14

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

15

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

16

Toro 55-7050

Bracket-Cover RH
(Superseded to 55-7050-03)

$

$

Not available

17

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

18

Toro 54-1370

V-BELT-DECK

$134.99

$

Usually ships in 3-6 days

0

19

Toro 67-7690

PULLEY-DECK

$90.99

$

Usually ships in 3-6 days

0

20

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

21

Toro 55-7430

Lever-Deck
(Superseded to 55-7430-01)

$95.99

$

Usually ships in 3-6 days

0

22

Toro 67-7580

SPACER-BEARING

$

$

Not available

23

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

24

Toro 55-8280

DECK RING
(Superseded to 55-8280-01)

$

$

Not available

25

Toro 23-1120

WASHER

$20.99

$

Usually ships in 3-6 days

0

26

Toro 62-4480

ROD-ROLLER

$19.99

$

Usually ships in 3-6 days

0

27

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

29

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

30

Toro 55-7060

Bracket-Cover LH
(Superseded to 55-7060-03)

$

$

Not available

31

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

32

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

33

Toro 13-4029

44" Deck Assembly (Incl. Ref. #2, 6,7, 9 & 31)
(Superseded to 94-6024)

$

$

Not available

34

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

35

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

36

Toro 67-7560

Anti-Scalp Cup
(Superseded to 67-7561)

$43.99

$

In Stock, only 2 left!

0

37

Toro 54-0010

Blade
(Superseded to 54-0010-03)

$33.99

$

In Stock, only 3 left!

0

38

Toro 71-2780

SHAFT-SPINDLE
(Superseded to 71-2780-03)

$333.99

$

Usually ships in 3-6 days

0

39

Toro 67-7570

SPACER-SPINDLE

$12.99

$

In Stock, only 2 left!

0

40

Toro 251-257

BEARING-BALL

$15.99

$

In Stock, Qty 11

0

41

Toro 67-7590

HOUSING-SPINDLE

$331.99

$

Usually ships in 3-6 days

0

42

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

43

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

44

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

45

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

46

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

47

Toro 54-1180

Anchor-Deck Spring
(Superseded to 54-1180-01)

$20.99

$

Usually ships in 3-6 days

0

48

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

49

Toro 54-1160

SPRING-EXTENSION, DECK

$55.99

$

In Stock, only 2 left!

0

50

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

51

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

52

Toro 55-8320

PIVOT BRKT WA R/B

$

$

Not available

53

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

54

Toro 13-3899

DEFLECTOR

$

$

Not available

Toro 67-7660

Spindle Assembly (Incl. Ref. #14,15,17,19,22,& 38-41)

$928.99

$

Usually ships in 3-6 days

0
