30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 010000001 - 019999999) (1991) CUTTING UNIT MODEL NO. 30768 Parts Diagram

ProLine Rear-Engine Riding Mower

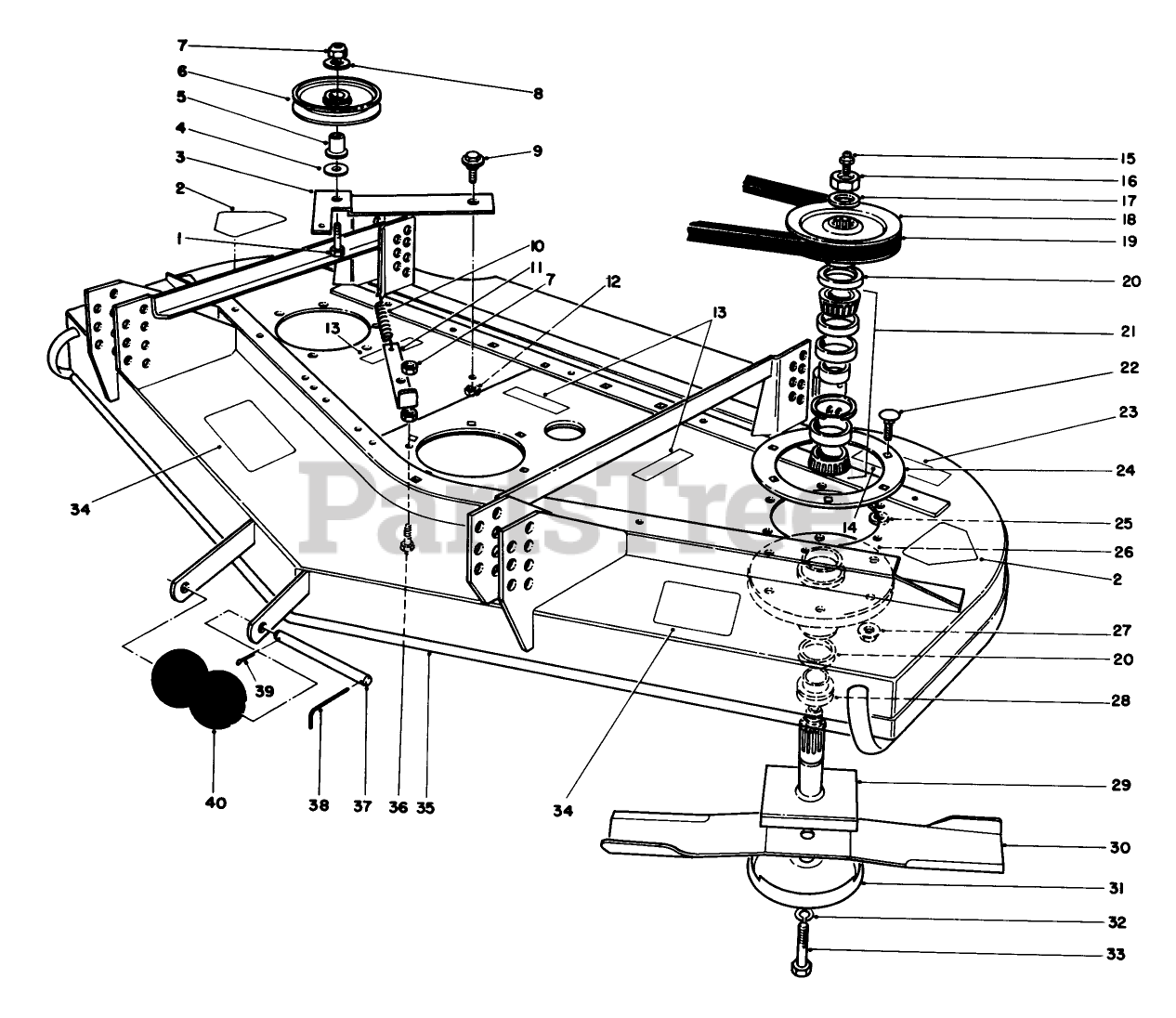

CUTTING UNIT MODEL NO. 30768 Parts Diagram

  • Title

1

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

3

Toro 56-5520

Lever-Deck
(Superseded to 56-5520-01)

$

$

Not available

4

Toro 31-3220

WASHER

$

$

Not available

5

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 20+

0

6

Toro 65-5940

Pulley (Incl. Ref. #4 & 5)

$43.99

$

In Stock, Qty 11

0

7

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

8

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

9

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

10

Toro 54-1160

SPRING-EXTENSION, DECK

$55.99

$

In Stock, only 2 left!

0

11

Toro 56-5540

Anchor-Spring
(Superseded to 56-5540-01)

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

14

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

15

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0

16

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

17

Toro 74150

Washer

$

$

Currently unavailable

18

Toro 56-2510

PULLEY & HUB WA
(Superseded to 56-2510-03)

$227.99

$

Usually ships in 3-6 days

0

19

Toro 56-5560

V-BELT, DECK

$131.99

$

In Stock, only 1 left!

0

20

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 11

0

21

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, Qty 7

0

22

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

23

Toro 68-7260

DECAL-WARNING

$

$

Not available

24

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

27

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 27-0950

SPACER

$31.99

$

In Stock, only 2 left!

0

29

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

30

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, Qty 8

0

31

Toro 72-9361

CUP-SCALP, ANTI

$42.99

$

Usually ships in 3-6 days

0

32

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

33

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

34

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

35

Toro 56-5700

RD CUTTING DECK WA R

$

$

Not available

36

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 15

0

37

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

38

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

39

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

40

Toro 29-4820

ROLLER

$18.99

$

In Stock, Qty 8

0

Toro 27-0871

Spindle Assy. (Incl. Ref. #15-18, 21, 26, 28, & 29)

$

$

Not available
