30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 010000001 - 019999999) (1991) CUTTING UNIT MODEL NO. 30753 Parts Diagram

ProLine Rear-Engine Riding Mower

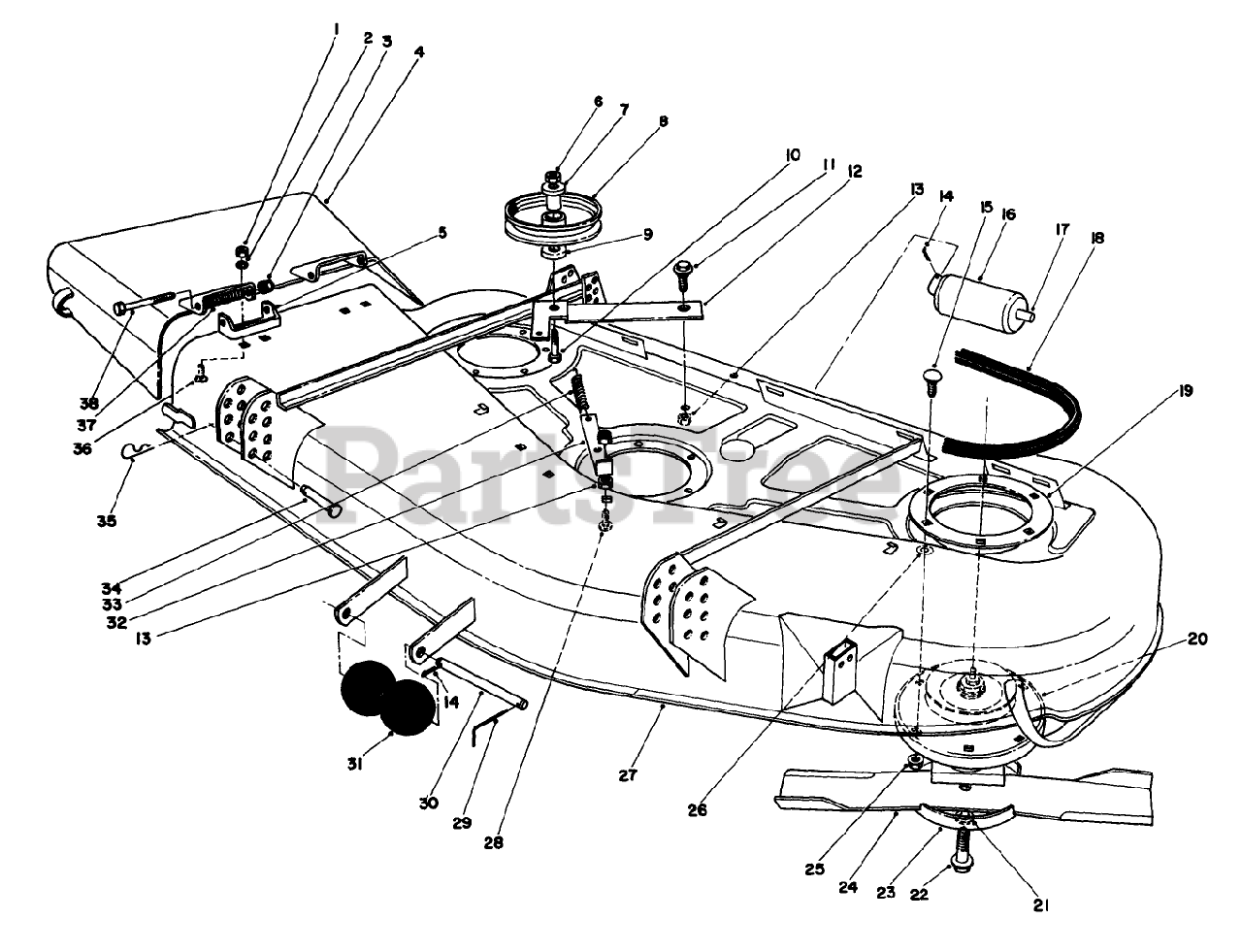

CUTTING UNIT MODEL NO. 30753 Parts Diagram

  • Title
1

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

4

Toro 13-3949

DEFLECTOR W/DECALS

$

$

Not available

5

Toro 29-5590

Bracket-Pivot
(Superseded to 29-5590-03)

$

$

Not available

6

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

7

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 20+

0

8

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 11

0

9

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

10

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

11

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

12

Toro 56-5520

Lever-Deck
(Superseded to 56-5520-01)

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

15

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

17

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

18

Toro 56-5560

V-BELT, DECK

$131.99

$

In Stock, only 1 left!

0

19

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

20

Toro 27-0871

SPINDLE HSG ASM

$

$

Not available

21

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

22

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

23

Toro 72-9361

CUP-SCALP, ANTI

$42.99

$

Usually ships in 3-6 days

0

24

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, Qty 8

0

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 14-2359

Housing
(Superseded to 94-6025)

$

$

Not available

28

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

29

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

30

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

31

Toro 29-4820

ROLLER

$18.99

$

In Stock, Qty 8

0

32

Toro 56-5540

Anchor-Spring
(Superseded to 56-5540-01)

$

$

Not available

33

Toro 54-1160

SPRING-EXTENSION, DECK

$55.99

$

In Stock, only 2 left!

0

34

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

35

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

36

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

37

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

38

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0
