30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) CUTTING UNIT MODEL NO. 30747 Parts Diagram

ProLine Rear-Engine Riding Mower

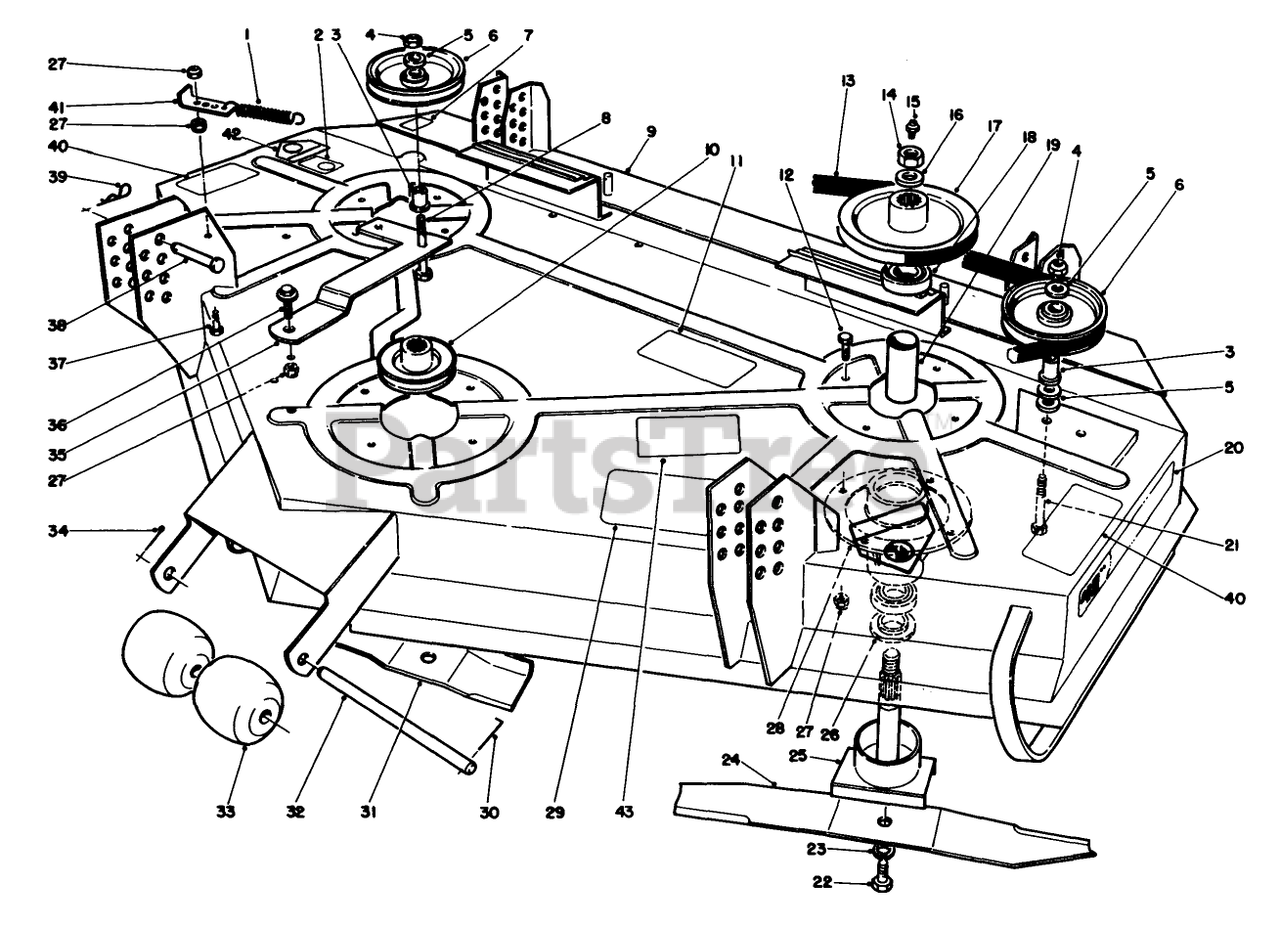

CUTTING UNIT MODEL NO. 30747 Parts Diagram

  • Title

1

Toro 54-1160

SPRING-EXTENSION, DECK

$55.99

$

In Stock, only 2 left!

0

2

Toro 61-5950

DECAL-NO STEP
(Superseded to 119-6807)

$7.99

$

Usually ships in 3-6 days

0

3

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

4

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

5

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

6

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

7

Toro 63-9920

DECAL-LEVEL, NOISE

$

$

Not available

8

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 72-8140

Deck W.A.
(Superseded to 14-3849)

$

$

Not available

10

Toro 72-8200

CENTER PULLEY

$

$

Not available

11

Toro 72-7750

DECAL - BELT ROUTING

$

$

Not available

12

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 57-0240

V-BELT (72)

$98.99

$

In Stock, only 3 left!

0

14

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

15

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

16

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

17

Toro 72-8190

OUTSIDE PULLEY

$122.99

$

Usually ships in 3-6 days

0

18

Toro 251-257

BEARING-BALL

$15.99

$

In Stock, Qty 11

0

19

Toro 67-7580

SPACER-BEARING

$

$

Not available

20

Toro 72-7640

DECAL - 48"

$

$

Not available

21

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

23

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 72-7730

L/H BLADE

$

$

Not available

Toro 72-7740

R/H BLADE
(Superseded to 72-7740-03)

$58.99

$

Usually ships in 3-6 days

0

25

Toro 71-2780

SHAFT-SPINDLE
(Superseded to 71-2780-03)

$333.99

$

Usually ships in 3-6 days

0

26

Toro 67-7570

SPACER-SPINDLE

$12.99

$

In Stock, only 2 left!

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 67-7590

HOUSING-SPINDLE

$331.99

$

Usually ships in 3-6 days

0

29

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

30

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

31

Toro 72-7690

CENTER BLADE

$42.99

$

Usually ships in 3-6 days

0

32

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

33

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

34

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

35

Toro 72-7610

IDLER LEVER WA R

$100.99

$

Usually ships in 3-6 days

0

36

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

37

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

39

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

40

Toro 72-7890

DECAL - DANGER

$

$

Not available

41

Toro 72-7590

ANCHOR SPRING R

$14.99

$

In Stock, only 1 left!

0

42

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

43

Toro 68-7270

DECAL - WARNING

$

$

Not available
