30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) CUTTING UNIT MODEL NO. 30747 Parts Diagram

ProLine Rear-Engine Riding Mower

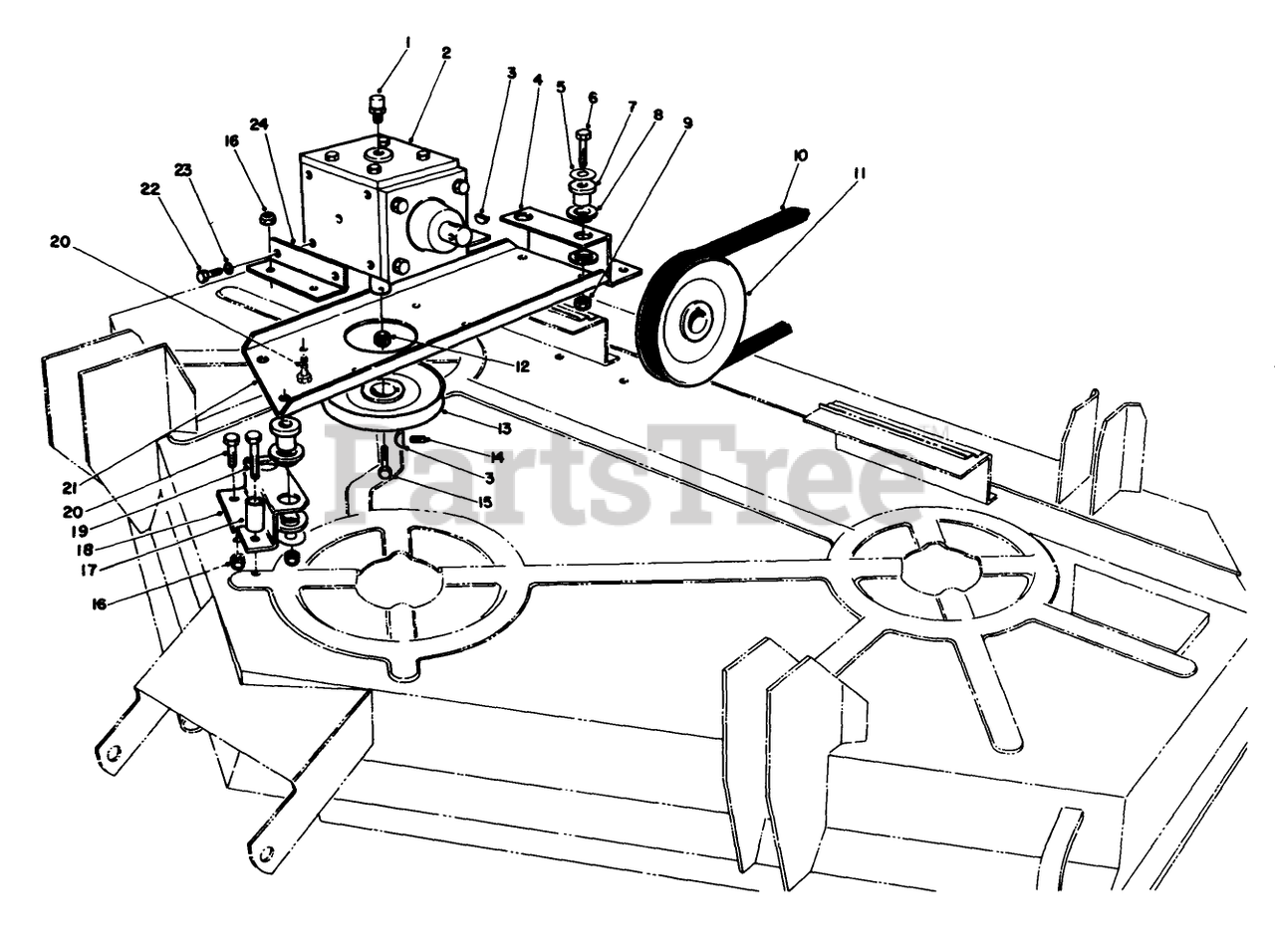

CUTTING UNIT MODEL NO. 30747 Parts Diagram

  • Title
1

Toro 302-34

FITTING-LUBE

$11.99

$

Usually ships in 3-6 days

0

2

Toro 53-4600

Gear Box
(Superseded to 53-4600-01)

$

$

Not available

3

$6.99

$

Usually ships in 3-6 days

0

4

Toro 72-8270

PLATE BRACKET R

$

$

Not available

5

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

6

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 63-9750

MOUNT

$19.99

$

In Stock, only 3 left!

0

8

Toro 72-7700

INSERT

$

$

Not available

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 72-8170

V-BELT

$113.99

$

Usually ships in 3-6 days

0

11

Toro 72-8220

PULLEY - INPUT

$139.99

$

Usually ships in 3-6 days

0

12

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

13

Toro 72-8180

PULLEY - OUTPUT

$

$

Currently unavailable

14

Toro 3241-1

SCREW-SET, SQH

$16.99

$

Usually ships in 3-6 days

0

15

Toro 321-16

SCREW-HH
(Superseded to 120-2011)

$6.49

$

Usually ships in 3-6 days

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

17

Toro 47-0420

Spacer

$

$

Currently unavailable

18

Toro 72-8280

PLATE BRACKET R

$

$

Not available

19

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

20

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 72-8460

PLATE - MTG GEAR BOX R

$

$

Not available

22

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

23

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

24

Toro 72-8450

ANGLE - GEAR BOX MTG R

$

$

Not available
