30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) CUTTING UNIT MODEL NO. 30747 Parts Diagram

ProLine Rear-Engine Riding Mower

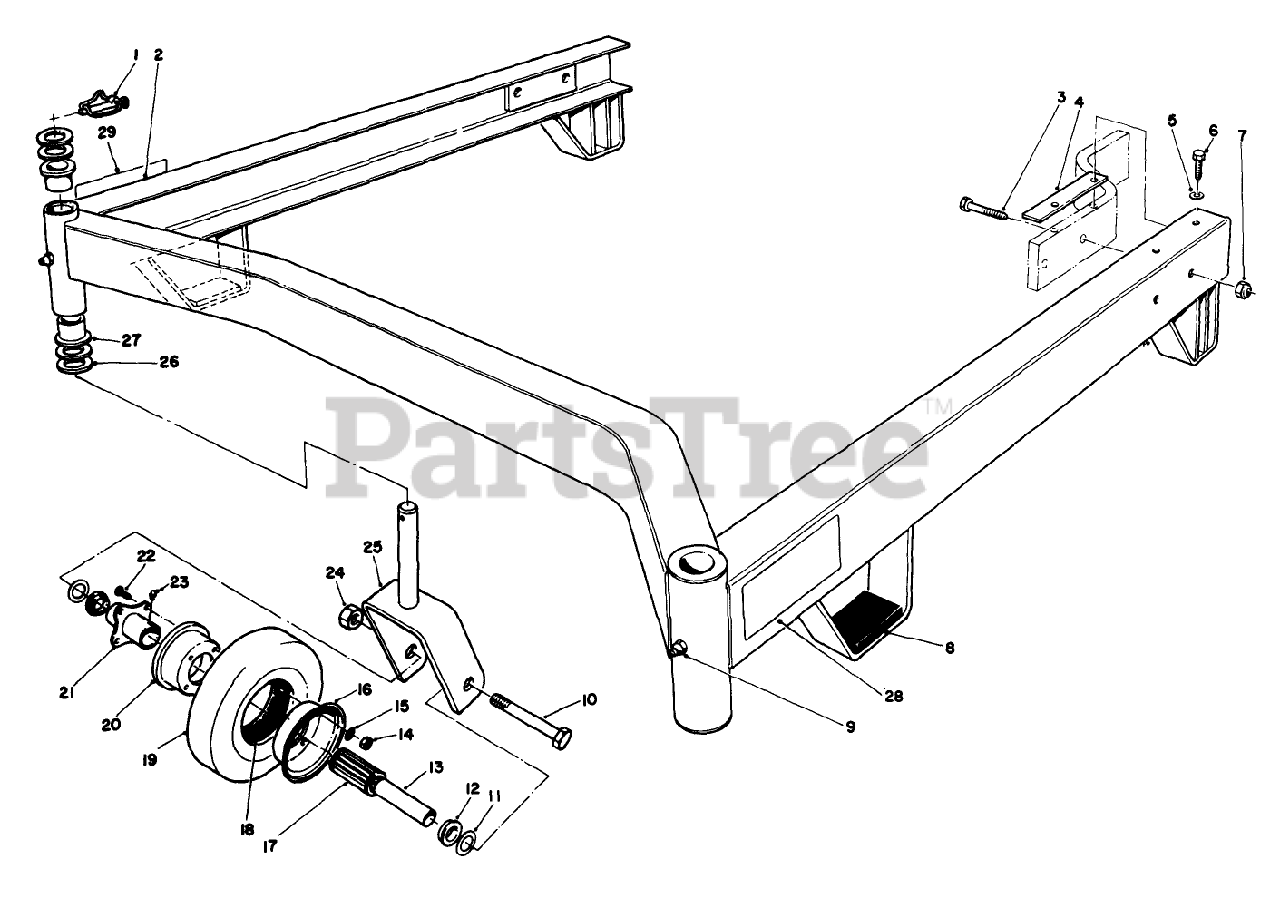

CUTTING UNIT MODEL NO. 30747 Parts Diagram

  • Title

1

Toro 3290-384

PIN-LYNCH

$23.99

$

Usually ships in 3-6 days

0

2

Toro 55-4630

Suspension Assembly (Incl. Ref. #9 & 27)
(Superseded to 94-4165)

$

$

Not available

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 62-6980

SHIM-CARRIER

$

$

Not available

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3235-21

SCREW W/PATCH

$

$

Not available

7

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 12

0

8

Toro 54-2700

Pad-Rubber
(Superseded to 74-0340)

$4.99

$

Usually ships in 3-6 days

0

9

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

10

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

11

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

12

Toro 62-5530

Bushing
(Superseded to 62-5580)

$7.49

$

In Stock, Qty 20+

0

13

Toro 68-8980

SPANNER-TIRE

$9.49

$

In Stock, Qty 9

0

14

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

17

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

18

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

19

Toro 68-8960

TIRE

$67.99

$

In Stock, only 1 left!

0

20

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

21

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

22

Toro 54-8890

WHEEL BOLT

$0.99

$

Usually ships in 3-6 days

0

23

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, Qty 7

0

24

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 10

0

25

Toro 68-8900

Castor Fork
(Superseded to 68-8900-01)

$125.99

$

Usually ships in 3-6 days

0

26

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

27

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 19

0

28

Toro 74-0940

DECAL-HOC, RH

$

$

Not available

29

Toro 68-8360

DECAL-HOC, LH

$30.99

$

Usually ships in 3-6 days

0

Toro 13-3869

Castor Wheel Complete (Incl. Ref. #11-22)
(Superseded to 68-8970)

$127.99

$

Usually ships in 3-6 days

0

Toro 24-5790

WEIGHT-REAR
(Superseded to 24-5790-01)

$539.99

$

Usually ships in 3-6 days

0

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0
