30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) CUTTING UNIT MODEL NO. 30544 Parts Diagram

ProLine Rear-Engine Riding Mower

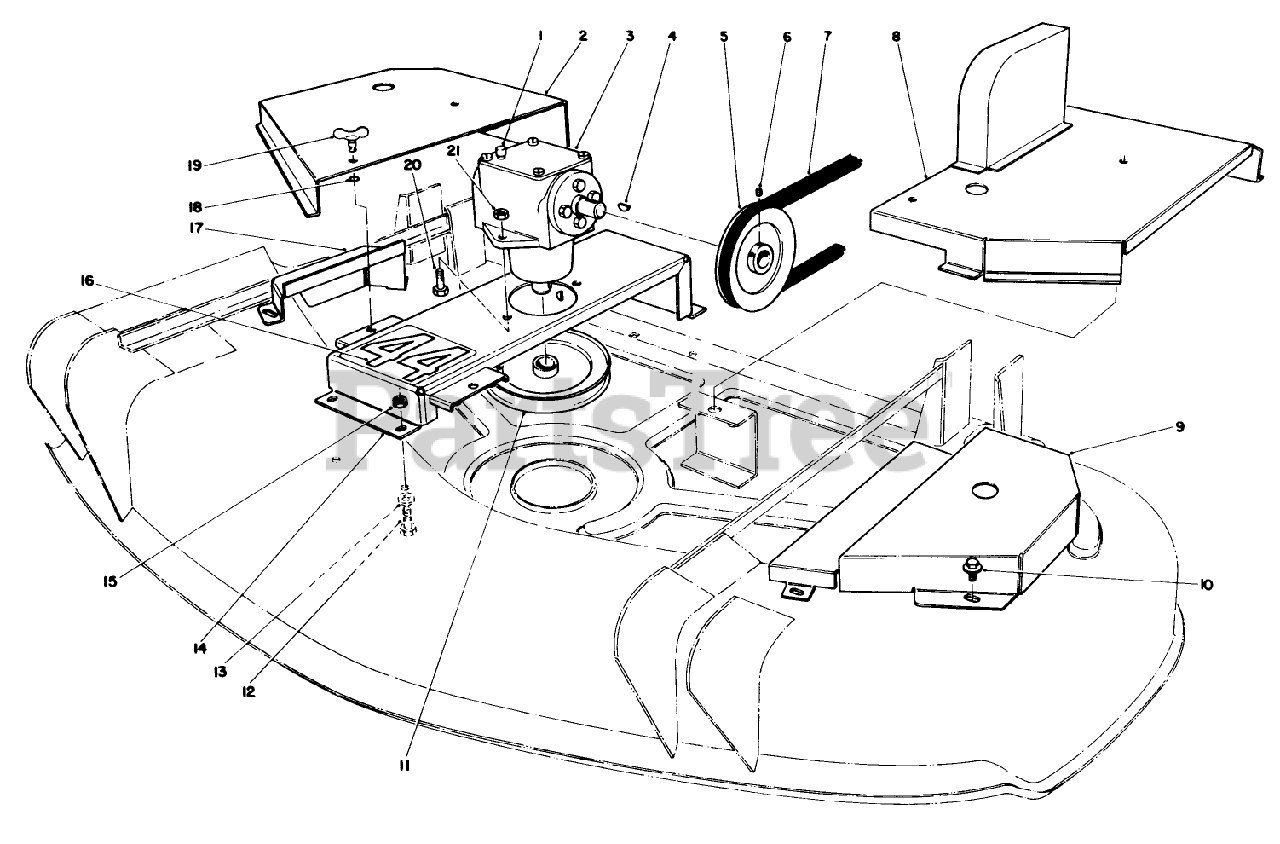

CUTTING UNIT MODEL NO. 30544 Parts Diagram

  • Title

1

Toro 302-14

VENT

$8.99

$

Usually ships in 3-6 days

0

2

Toro 54-2240

Cover-Deck
(Superseded to 54-2240-01)

$168.99

$

Usually ships in 3-6 days

0

3

Toro 54-2320

GEARBOX-DRIVE, DECK

$

$

Not available

4

Toro 3257-30

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

5

Toro 54-2360

Pulley-Input (Incl. Ref. #6)

$

$

Not available

6

Toro 3245-33

1/4-20 X 5/8 SETSCREW

$2.49

$

Usually ships in 3-6 days

0

7

Toro 54-1360

V-BELT-DRIVE, DECK

$40.99

$

Usually ships in 3-6 days

0

8

Toro 55-7040

Cover-Deck
(Superseded to 55-7040-01)

$271.99

$

Usually ships in 3-6 days

0

9

Toro 54-2220

Cover-LH
(Superseded to 54-2220-01)

$166.99

$

Usually ships in 3-6 days

0

10

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

11

Toro 54-2350

Pulley-Output (Incl. Ref. #6)

$

$

Not available

12

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 55-7030

Bracket-Gearbox
(Superseded to 105-4605-01)

$

$

Not available

15

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

16

Toro 54-2760

DECAL-44 INCH

$

$

Not available

17

Toro 54-2250

Cover-RH
(Superseded to 54-2250-01)

$

$

Not available

18

Toro 249-35

RING-SNAP

$

$

Not available

19

Toro 249-36

STUD-HEAD, WING

$40.99

$

Usually ships in 3-6 days

0

20

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0
