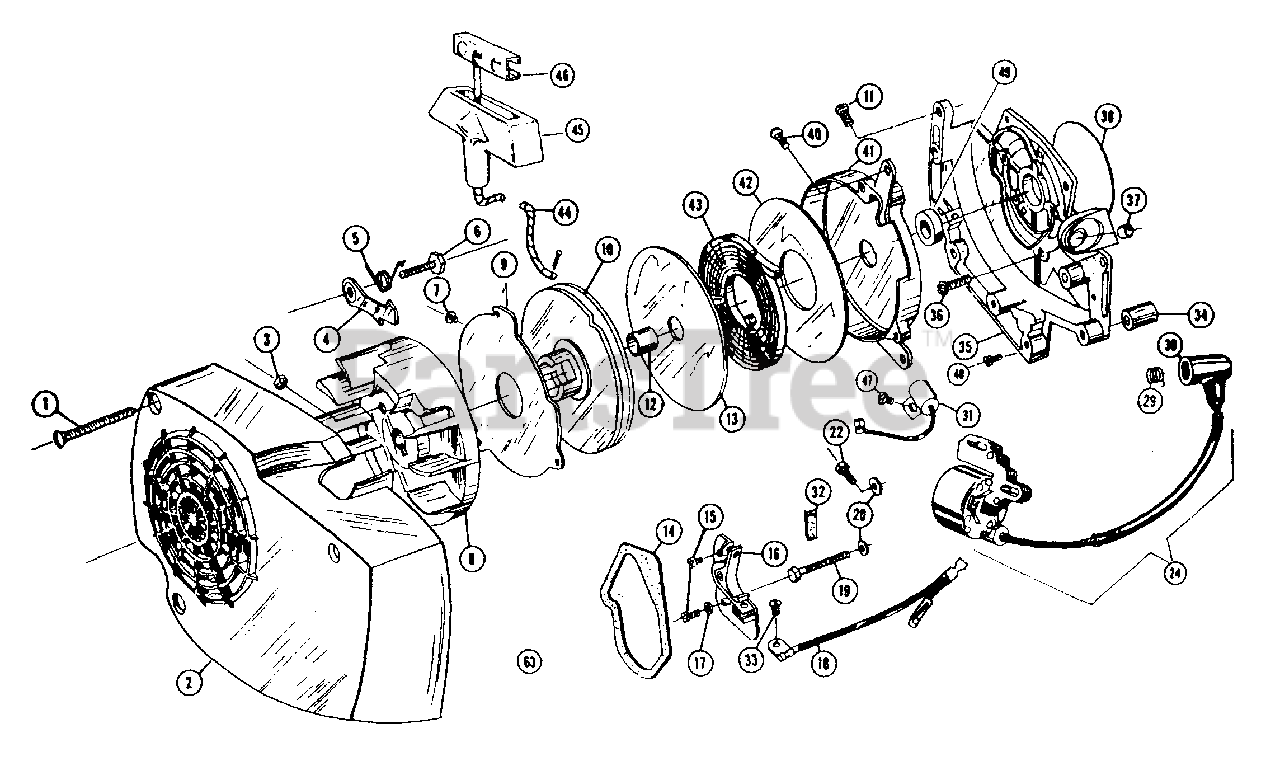

306A - Poulan Chainsaw Starter Assembly Parts Diagram

Chainsaw

Starter Assembly Parts Diagram

  • Title

1

Poulan 530015007

Screw 10-24 x 2-7/16

$

$

Not available

2

Poulan 530011017

Housing - Fan

$

$

Not available

3

Poulan 530001720

Nut - Starter Dog

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 530022021

Dog - Starter

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 530042017

Spring - Starter Dog

$3.99

$

In Stock, only 1 left!

0

6

Poulan 530015005

Bolt - Starter Dog

$

$

Not available

7

Poulan 530015004

Screw-Starter

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530039002

Flywheel

$91.99

$

Usually ships in 3-10 days

0

9

Poulan 530042015

Cover - Starter

$

$

Not available

10

Poulan 530010063

Starter Pulley Ass'y. w/Bearing

$

$

Not available

11

Poulan 530015038

Screw

$

$

Not available

12

Poulan 530032001

Bearing -Starter Pulley

$21.99

$

Usually ships in 3-10 days

0

13

Poulan 530042016

Disc - Starter - Top

$

$

Not available

14

Poulan 530019041

Gasket - Points Cover

Note: Included in Gasket Kit

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 530015029

Screws

$

$

Not available

16

Poulan 530039004

Breaker Assembly

$

$

Not available

17

Poulan 530015027

Washer No. 8

$

$

Not available

18

Poulan 530039019

Lead - To Coil

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 530015041

Screw

$

$

Not available

20

Poulan 530001520

Washer No. 8

$

$

Not available

22

Poulan 530015038

Screw-Coil to Brg. Carrier

$

$

Not available

24

Poulan 530039006

Coil - Terminal Ass'y.

Note: Includes: Lamination - Retainer & Wire Ass'y.

$

$

Not available

29

Poulan 530003933

Connector
(Superseded to 507475326)

$

$

Not available

30

Poulan 530003934

Boot-Spark Plug Wire

$

$

Not available

31

Poulan 530039005

Condenser

$

$

Not available

32

Poulan 530022036

Wick - Oiler

Note: Included in Gasket Kit

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 530015048

Screw - Breaker Lead

$

$

Not available

34

Poulan 530023107

Spacer

$2.49

$

Usually ships in 3-10 days

0

35

Poulan 530010107

Bearing Carrier - w/Rope Bushing

$

$

Not available

36

Poulan 530015042

Screw - Carrier Mount

$

$

Not available

37

Poulan 530023022

Bushing - Starter Rope

Note: Included in Gasket Kit

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 530019004

O'Ring

Note: Included in Gasket Kit

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530015037

Screw - Starter Mount

$2.49

$

Usually ships in 3-10 days

0

41

Poulan 530011172

Starter Housing

Note: Includes Pin

$

$

Not available

42

Poulan 530022085

Disc - Starter Bottom

$

$

Not available

43

Poulan 530042012

Spring - Recoil

$

$

Not available

44

Poulan 530010062

Rope - Assembly

$

$

Not available

45

Poulan 530004266

Handle - Starter

$

$

Not available

46

Poulan 530004268

Anchor - Handle

$

$

Not available

47

Poulan 530015029

Screw - Condenser Mount

$

$

Not available

48

Poulan 530015038

Screw - Cyl. Shroud to Bearing Carrier

$

$

Not available

49

Poulan 530019042

Seal

Note: Included in Gasket Kit

$

$

Not available

63

UNKNOWN

$

$

Not available
