306A - Poulan Chainsaw Carburetor & Choke Assembly Parts Diagram

Chainsaw

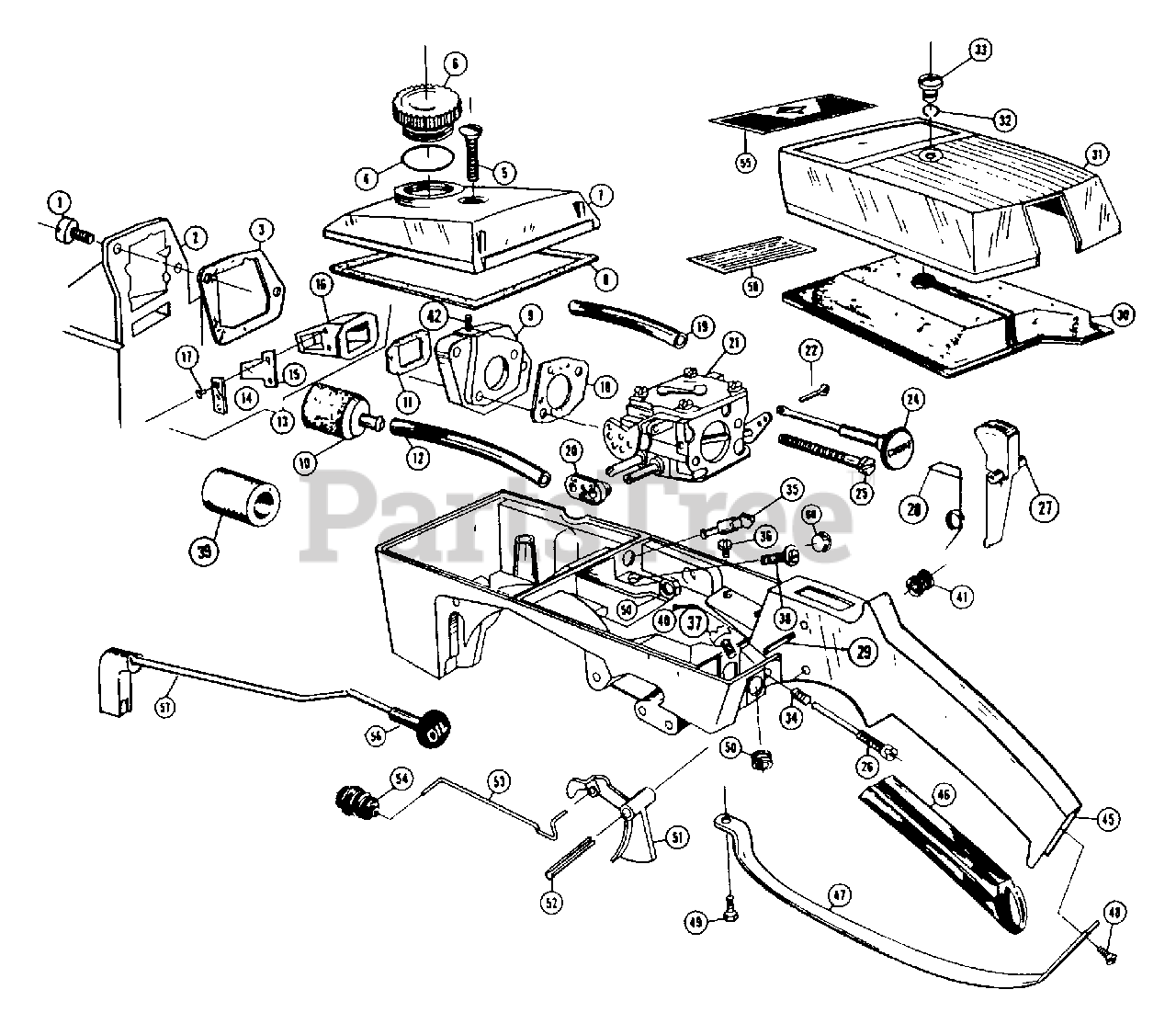

Carburetor & Choke Assembly Parts Diagram

  • Title

1

Poulan 530001686

Screw

$

$

Not available

2

Poulan 530010049

Crankcase

$

$

Not available

3

Poulan 530019022

Gasket - Carburetor - Adapter to C/Case

Note: Included in Gasket Kit

$

$

Not available

4

Poulan 530001915

O'Ring - Gas Cap Ass'y.

Note: Included in Gasket Kit

$

$

Not available

5

Poulan 530015009

Screw - Gas Tank Cover

$

$

Not available

6

Poulan 530010022

Gas Cap Assembly

$

$

Not available

7

Poulan 530011016

Cover - Fuel Tank

$

$

Not available

8

Poulan 530019005

Gasket - Fuel Tank

Note: Included in Gasket Kit

$

$

Not available

9

Poulan 530010004

Adapter Assembly

$

$

Not available

10

Poulan 530003792

Fuel Pick-Up

Note: (Model 306A)

$

$

Not available

11

Poulan 530019008

Gasket - Reed Valve

Note: Included in Gasket Kit

$

$

Not available

12

Poulan 530002161

Fuel Line Pick-Up

$

$

Not available

13

Poulan 530002383

Reed Valve -

Note: Includes

$

$

Not available

14

Poulan 530002580

Stop Reed

$

$

Not available

15

Poulan 530002579

Reed

$

$

Not available

16

Poulan 530001368

Block - Reed

$

$

Not available

17

Poulan 530001713

Screw 4-40 x 1/8

$

$

Not available

18

Poulan 530019023

Gasket -Carburetor to Adapter

Note: Included in Gasket Kit

$

$

Not available

19

Poulan 530021003

Line -Fuel to Carburetor

$

$

Not available

20

Poulan 530023006

-Grommet -Carb. Screw

Note: Included in Gasket Kit

$

$

Not available

21

Poulan 530034016

Carburetor

Note: (See separate page for parts)

$

$

Not available

22

Poulan 530015154

Cotter Pin - 3/32 x 1/2

$

$

Not available

23

Poulan 530023413

Choke Rod

$

$

Not available

24

UNKNOWN

$

$

Not available

25

Poulan 530015002

Screw- Carburetor Mount

$

$

Not available

26

Poulan 530010017

Screw -Idle

$

$

Not available

27

Poulan 530023562

Button-Throttle lock

$

$

Not available

28

Poulan 530015102

Roll Pin -Throttle Lock

$

$

Not available

29

Poulan 530015103

Spring - Throttle Lock Button

$

$

Not available

30

Poulan 530023046

Filter - Air

$

$

Not available

31

Poulan 530011013

Cover - Air Filter

$

$

Not available

32

Poulan 530015003

Ring - Retainer

$

$

Not available

33

Poulan 530015006

Nut - Filter Cover

$

$

Not available

34

Poulan 530003429

Spring -Idle Screw

$

$

Not available

35

Poulan 530023001

Fitting - Fuel Tank

$3.99

$

Usually ships in 3-10 days

0

36

UNKNOWN

$

$

Not available

37

Poulan 530001643

Screw - Cyl. Shield to Tank

$

$

Not available

38

Poulan 530015037

Screw - Tank and Handle to C/Case

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 530034032

Filter-Fuel

Note: (Model 306A)

$

$

Not available

40

Poulan 530001696

Cotter Pin-C/Case Drain

$

$

Not available

41

Poulan 530002594

Grommet

Note: Included in Gasket Kit

$

$

Not available

42

Poulan 530015001

Stud - Adapter

$

$

Not available

45

Poulan 530010035

Tank & Handle Ass'y

$

$

Not available

46

Poulan 530023052

Grip - Handle

$6.49

$

In Stock, only 1 left!

0

47

Poulan 530023094

Handle Brace - Rear

$

$

Not available

48

Poulan 530015023

Screw - Brace Mount

$

$

Not available

49

Poulan 530015037

Screw -Brace Mount

$2.49

$

Usually ships in 3-10 days

0

50

Poulan 530023067

Nyliner

Note: Included in Gasket Kit

$

$

Not available

51

Poulan 530023563

Trigger

$

$

Not available

52

Poulan 530015008

Roll Pin

$

$

Not available

53

Poulan 530023048

Rod - Throttle

$

$

Not available

54

Poulan 530002597

Boot - Throttle

Note: Included in Gasket Kit

$

$

Not available

55

Poulan 530023312

Decal

Note: (Model 306A)

$

$

Not available

56

Poulan 530023003

Button - Oiler

$

$

Not available

57

Poulan 530010043

Push Rod and Bumper

$

$

Not available

58

Poulan 530002608

Decal - Instruction

$

$

Not available

59

Poulan 530023179

Plugs

$2.49

$

Usually ships in 3-10 days

0

60

Poulan 530023174

Plug Tank & Handle Ass'y

$

$

Not available
