30692 - Toro 32" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 290000001 - 290999999) (2009) DECK AND SHIELD ASSEMBLY Parts Diagram

32" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

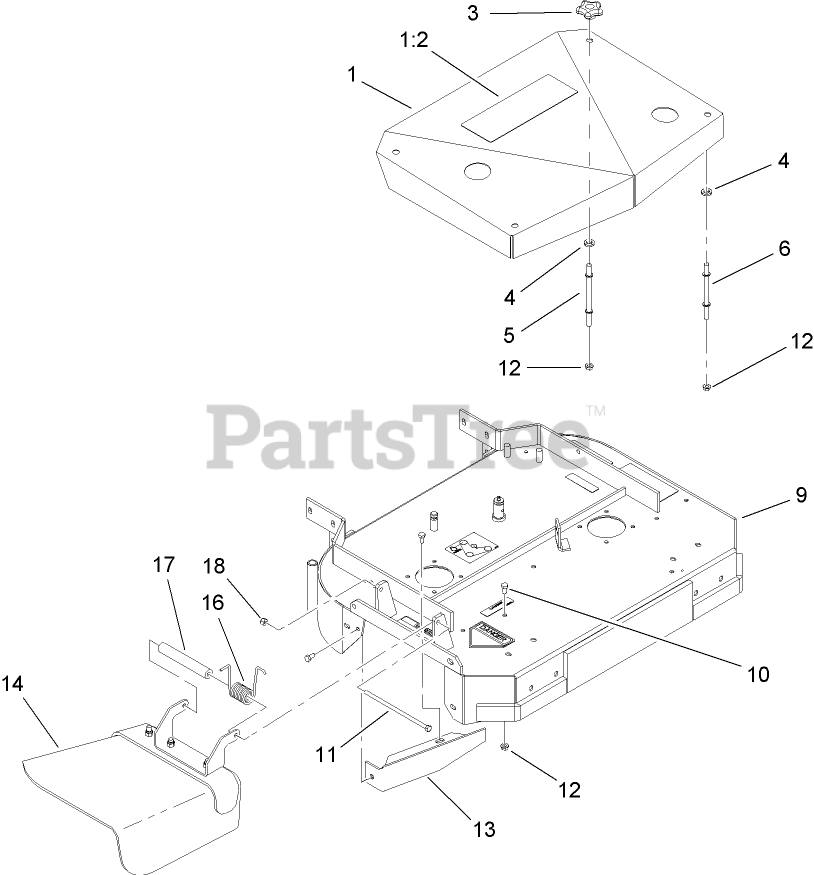

DECK AND SHIELD ASSEMBLY Parts Diagram

  • Title

1

Toro 1-324407

SHIELD-BELT

$416.99

$

Usually ships in 3-6 days

0

1:2

Toro 106-0710

DECAL

$41.99

$

Usually ships in 3-6 days

0

3

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 15

0

4

Toro 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

5

Toro 1-303536

STUD-SHIELD, BELT (LONG)

$7.99

$

In Stock, Qty 20+

0

6

Toro 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

9

Toro 110-6901

32 INCH DECK ASM

$3728.99

$

Usually ships in 3-6 days

0

10

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

11

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-302189-01

BAFFLE-DOGLEG

$49.99

$

Usually ships in 3-6 days

0

14

Toro 107-4140

DEFLECTOR ASM

$363.99

$

Usually ships in 3-6 days

0

16

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

17

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
