30688 - Toro 48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive (SN: 260000001 - 260999999) (2006) CASTER ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive

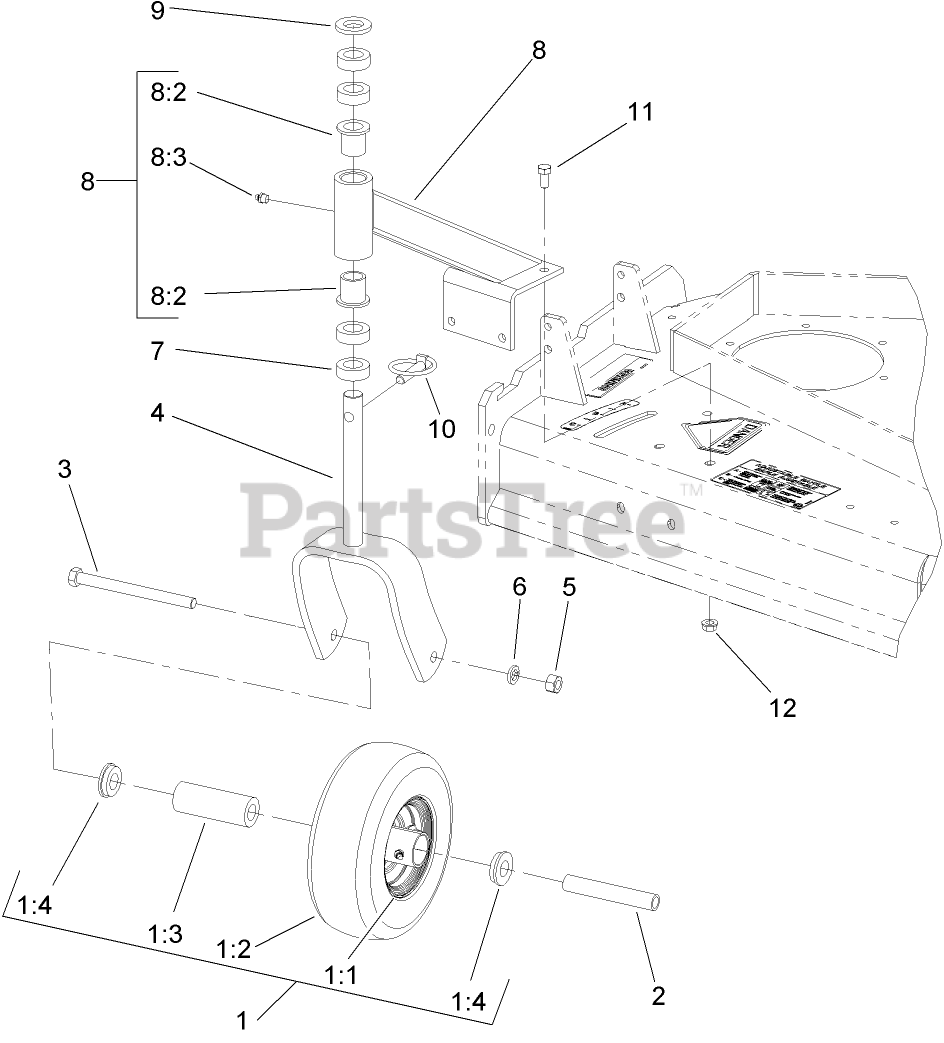

CASTER ASSEMBLY Parts Diagram

  • Title
1

Toro 1-513648

WHEEL AND TIRE ASM

$91.99

$

In Stock, only 1 left!

0

1:1

Rim

Note: Not serviced separately

$

$

Not available

1:2

$43.99

$

In Stock, only 4 left!

0

1:3

Toro 1-513809

BEARING

$35.99

$

In Stock, Qty 8

0

1:4

Toro 1-513810

BUSHING

$5.99

$

In Stock, Qty 17

0

2

Toro 1-513547

SPACER

$12.99

$

In Stock, Qty 6

0

3

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

4

Toro 1-322145-01

FORK
(Superseded to 116-7942-01)

$95.99

$

In Stock, only 1 left!

0

5

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

6

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

7

Toro 1-303314

SPACER-CASTER

$6.49

$

In Stock, Qty 5

0

8

Toro 110-2130

SUPPORT ASM

$287.99

$

Usually ships in 3-6 days

0

8:2

Toro 1-303514

BEARING-FLANGED

$12.99

$

In Stock, only 1 left!

0

8:3

Toro 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

0

9

Toro 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

10

$11.99

$

In Stock, only 2 left!

0

11

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

12

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
