30678 - Toro 48" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 314000001 - 314999999) (2014) DRIVE WHEEL AND BRAKE ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

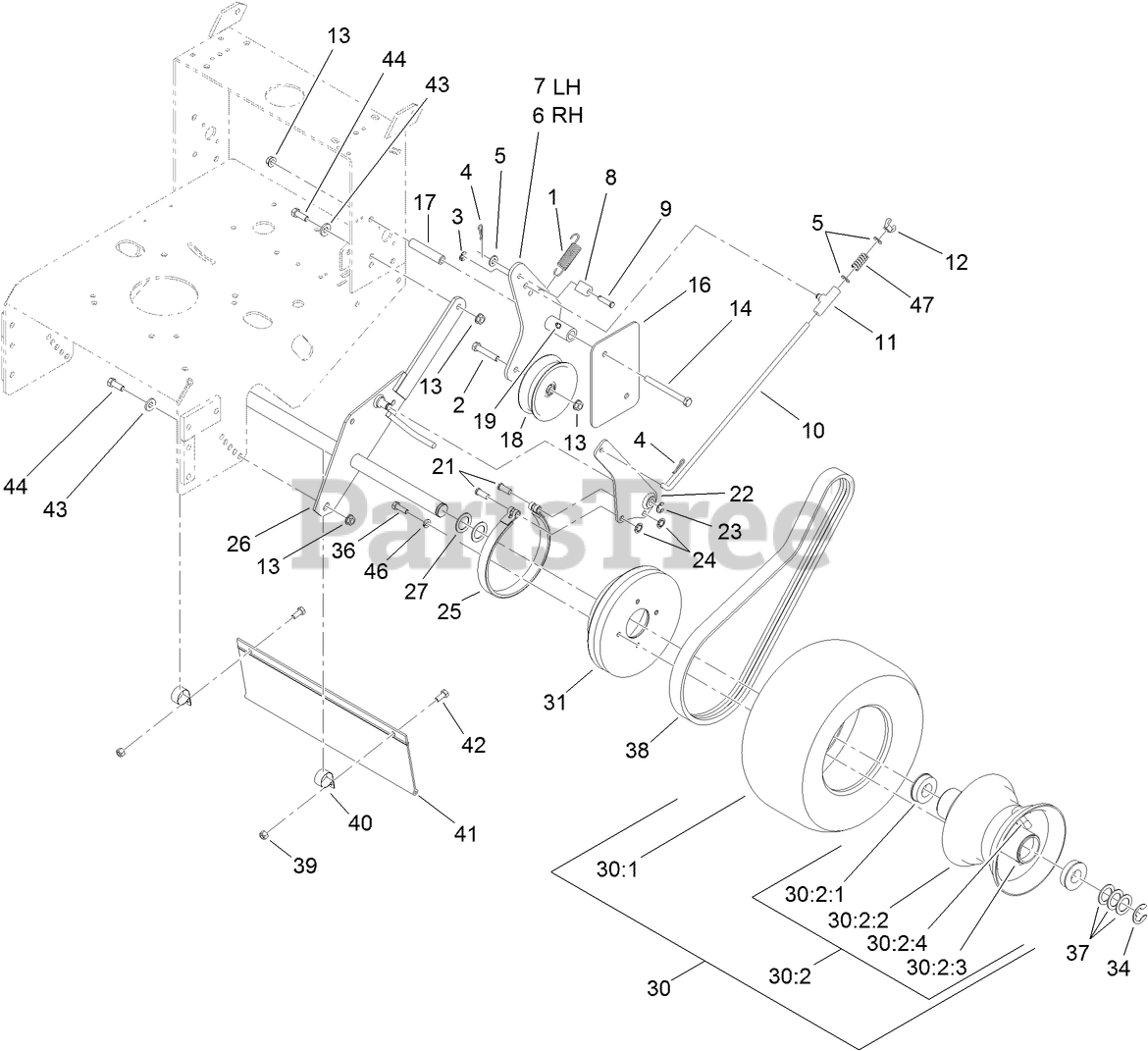

DRIVE WHEEL AND BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 98-3273

SPRING-EXTENSION

$28.99

$

In Stock, only 2 left!

0

2

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

4

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 110-4925-03

ARM-IDLER, RH

$139.99

$

Usually ships in 3-6 days

0

7

Toro 110-4926-03

ARM-IDLER, LH

$139.99

$

Usually ships in 3-6 days

0

8

Toro 74-0521

FITTING-ROD

$14.99

$

Usually ships in 3-6 days

0

9

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

10

Toro 1-323296

ROD-BRAKE

$18.99

$

Usually ships in 3-6 days

0

11

Toro 110-5866

SWIVEL-BRAKE

$25.99

$

Usually ships in 3-6 days

0

12

Toro 1-513959

WINGNUT-NYLOCK

$6.49

$

Usually ships in 3-6 days

0

13

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

16

Toro 98-5131-01

SHIELD-WHEEL, DRIVE

$51.99

$

Usually ships in 3-6 days

0

17

Toro 1-323694

SPACER-SHIELD

$17.99

$

Usually ships in 3-6 days

0

18

Toro 1-323634

IDLER-DRIVE, WHEEL

$90.99

$

In Stock, Qty 9

0

19

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

21

Toro 1-323307

PIN-CLEVIS

$5.49

$

In Stock, Qty 15

0

22

Toro 1-322209-03

ARM-BRAKE

$128.99

$

Usually ships in 3-6 days

0

23

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

24

Toro 1-803051

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

25

Toro 1-323595

BAND-BRAKE

$100.99

$

In Stock, only 2 left!

0

26

Toro 1-322212-03

AXLE

$458.99

$

Usually ships in 3-6 days

0

27

Toro 1-543436

WASHER-SPACER

$1.49

$

In Stock, Qty 9

0

30

Toro 130-4550

WHEEL AND TIRE ASM

$243.99

$

Usually ships in 3-6 days

0

30:1

Toro 1-323720

Tire-Turfmaster

$120.99

$

Usually ships in 3-6 days

0

30:2

Toro 130-4565

WHEEL AND HUB ASM

$128.99

$

Usually ships in 3-6 days

0

30:2:1

Toro 1-323329

BEARING-FLANGED

$62.99

$

In Stock, only 1 left!

0

30:2:2

Rim ASM

Note: Not serviced separately

$

$

Not available

30:2:3

Fitting-Grease

Note: Not serviced separately

$

$

Not available

30:2:4

Stem-Valve

Note: Not serviced separately

$

$

Not available

31

Toro 109-4359

DRUM AND SHEAVE ASM

$81.99

$

In Stock, only 3 left!

0

34

Toro 1-808519

RING-SNAP

$2.99

$

In Stock, only 4 left!

0

36

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

38

Toro 1-323631

V-BELT

$80.99

$

In Stock, Qty 8

0

39

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

40

Toro 2412-104

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

41

Toro 98-3259

SHIELD-TRAILING

$70.99

$

In Stock, only 2 left!

0

42

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

44

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

46

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

47

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0
