30678 - Toro 48" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 313000001 - 313999999) (2013) IDLER ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

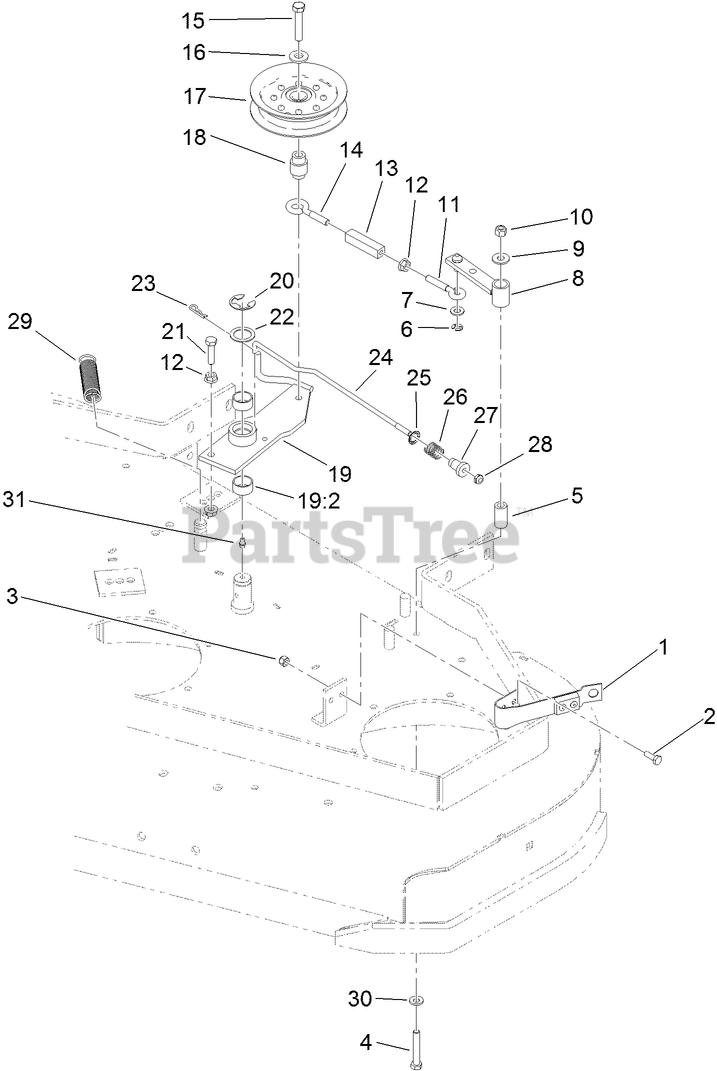

IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 1-324372

PAD AND SPRING ASM

$68.99

$

In Stock, only 1 left!

0

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

5

Toro 1-403179

TUBE-PIVOT

$18.99

$

In Stock, only 1 left!

0

6

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 1-322235

ARM-ASSIST

$54.99

$

Usually ships in 3-6 days

0

9

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

11

Toro 1-303238

EYEBOLT-THREAD, RH

$6.49

$

In Stock, Qty 7

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, only 3 left!

0

14

Toro 1-303348

EYEBOLT-THREAD, LH

$6.49

$

In Stock, Qty 9

0

15

Toro 702809

SCREW-HH

$5.49

$

In Stock, only 4 left!

0

16

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

17

Toro 116-3626

PULLEY-IDLER
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 17

0

18

Toro 1-303434

BUSHING-ENGAGEMENT

$14.99

$

In Stock, only 1 left!

0

19

Toro 103-3600

Idler Arm ASM

$133.99

$

Usually ships in 3-6 days

0

19:2

Toro 1-323729

SLEEVE-BEARING

$5.49

$

In Stock, only 2 left!

0

20

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 9

0

21

Toro 116-3515

SCREW-HH, SPECIAL

$1.49

$

Usually ships in 3-6 days

0

22

Toro 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, only 3 left!

0

23

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

24

Toro 110-4932

ROD-BRAKE

$37.99

$

Usually ships in 3-6 days

0

25

Toro 1-323748

RING-PUSH ON

$1.99

$

In Stock, Qty 7

0

26

Toro 1-323747

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 10

0

27

Toro 1-323746

SPACER-FLANGED

$1.49

$

In Stock, only 3 left!

0

28

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 1-323071

SPRING-EXTENSION

$15.99

$

In Stock, Qty 20+

0

30

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

31

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0
