30678 - Toro 48" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 312000001 - 312999999) (2012) HANDLE AND CONTROL ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

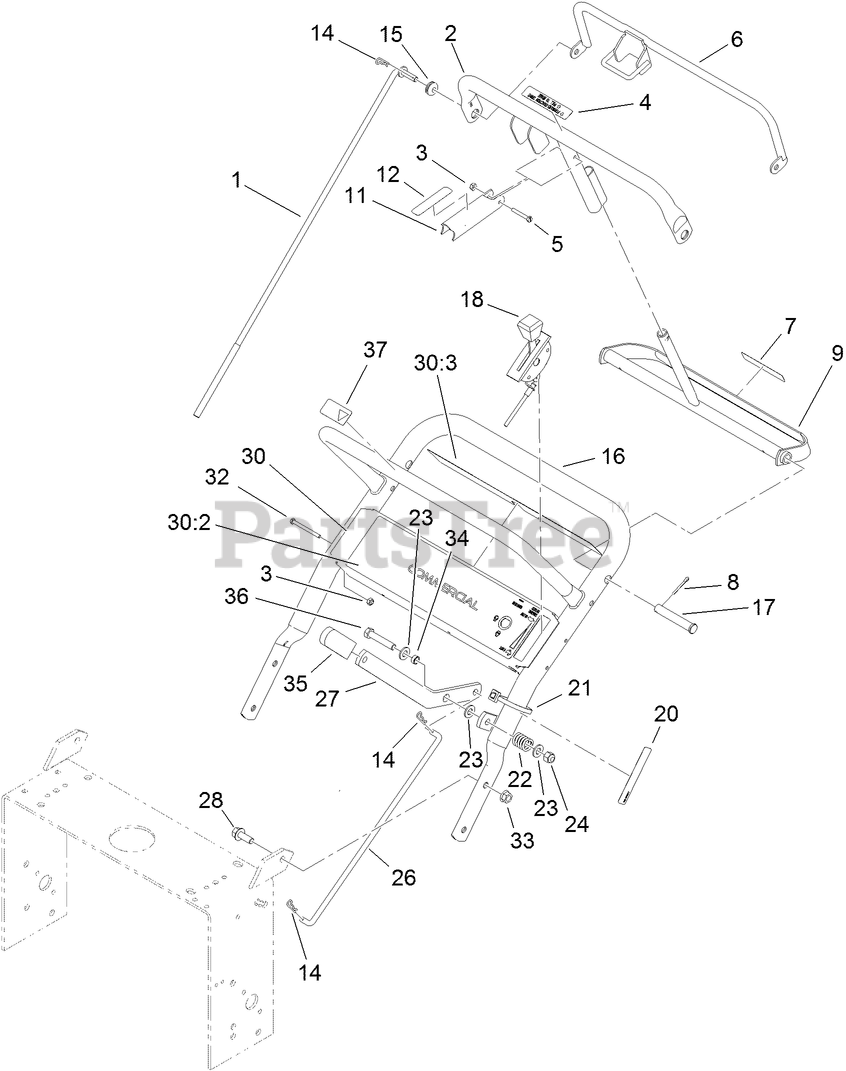

HANDLE AND CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 98-3282

ROD-CONTROL

$45.99

$

Usually ships in 3-6 days

0

2

Toro 95-5522-03

BAR-CONTROL

$269.99

$

Usually ships in 3-6 days

0

3

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 82-2290

DECAL

$11.99

$

Usually ships in 3-6 days

0

5

Toro 32105-1

SCREW-SHH

$1.49

$

In Stock, Qty 7

0

$148.99

$

Usually ships in 3-6 days

0

7

Toro 82-2280

DECAL

$9.49

$

In Stock, only 1 left!

0

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

9

Toro 99-8501-03

CONTROL-PIVOT
(Superseded to 106-5477-03)

$196.99

$

Usually ships in 3-6 days

0

11

Toro 98-3261-03

LEVER-BRAKE, PARKING

$36.99

$

Usually ships in 3-6 days

0

12

Toro 98-3266

DECAL

$47.99

$

Usually ships in 3-6 days

0

14

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

15

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 16

0

16

Toro 98-3267-03

HANDLE-UPPER

$275.99

$

Usually ships in 3-6 days

0

17

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

18

Toro 119-6539

CABLE-THROTTLE

$78.99

$

In Stock, only 1 left!

0

20

Toro 95-5537

DECAL-ENGAGE, DECK

$9.99

$

Usually ships in 3-6 days

0

21

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

22

Toro 1-303160

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 98-3279

LINKAGE-DRIVE, BLADE

$33.99

$

Usually ships in 3-6 days

0

27

Toro 98-3287-03

LEVER-ENGAGEMENT, BLADE

$46.99

$

Usually ships in 3-6 days

0

28

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

30

Toro 110-6905

CONTROL PANEL ASM

$

$

Not available

30:2

Toro 110-6916

DECAL-PANEL, CONTROL

$38.99

$

Usually ships in 3-6 days

0

30:3

Toro 105-0884

DECAL-DANGER

$15.99

$

Usually ships in 3-6 days

0

32

Toro 32105-14

SCREW-SHH

$2.99

$

Usually ships in 3-6 days

0

33

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Toro 99-8509

SPACER

$14.99

$

Usually ships in 3-6 days

0

35

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

36

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0
