30678 - Toro 48" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 312000001 - 312999999) (2012) DECK ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

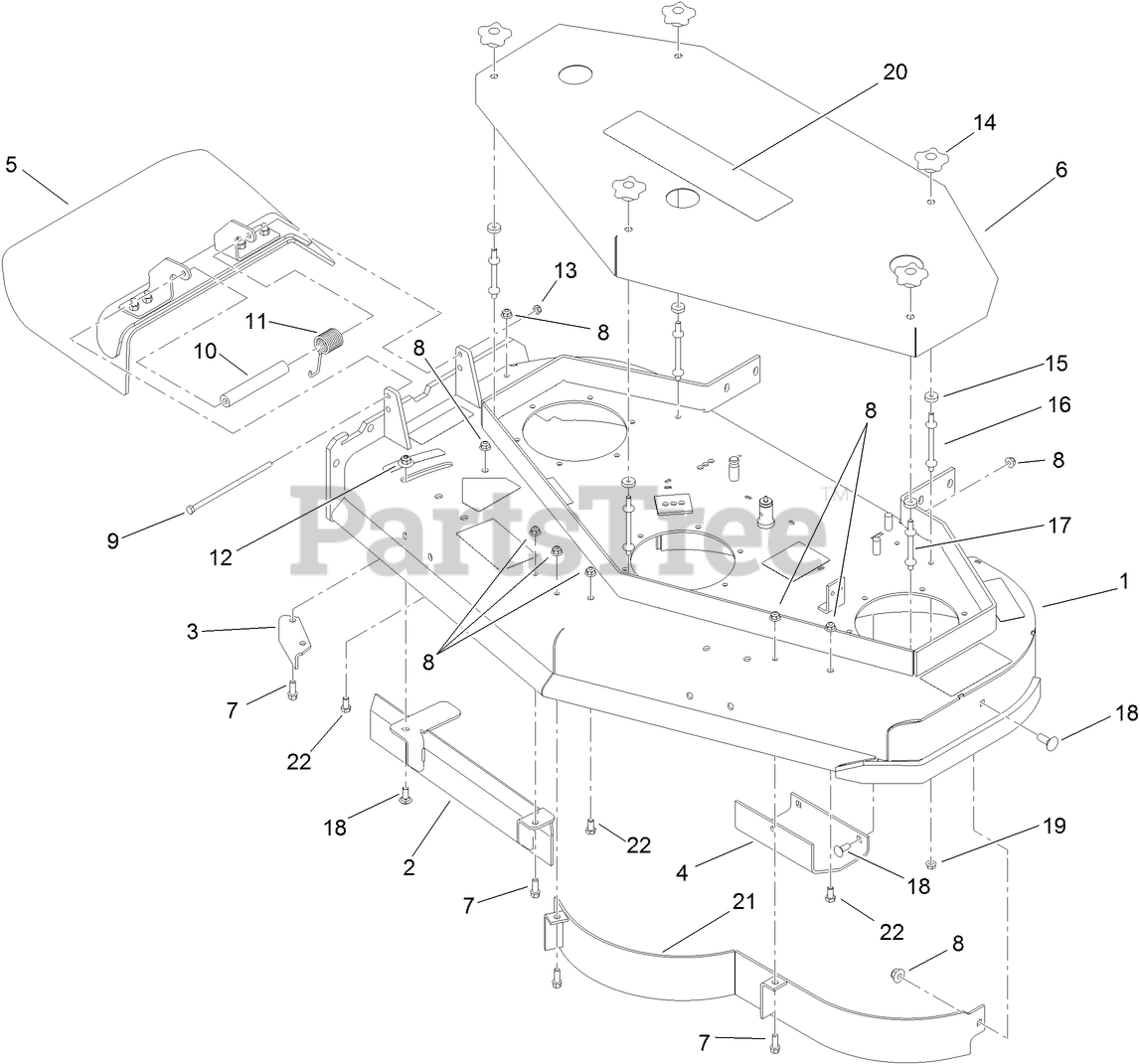

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 110-4909

DECK ASM

$4198.99

$

Usually ships in 3-6 days

0

2

Toro 121-1775-03

BAFFLE

$143.99

$

Usually ships in 3-6 days

0

3

Toro 110-0744-01

BAFFLE-DISCHARGE

$34.99

$

Usually ships in 3-6 days

0

4

Toro 107-3166-01

SKID

$65.99

$

Usually ships in 3-6 days

0

5

Toro 110-0758

DEFLECTOR ASM

$258.99

$

Usually ships in 3-6 days

0

6

Toro 110-2119-01

COVER

$274.99

$

Usually ships in 3-6 days

0

7

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

10

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

11

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

12

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

Usually ships in 3-6 days

0

13

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 6

0

14

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 10

0

15

Toro 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

16

Toro 1-303536

STUD-SHIELD, BELT (LONG)

$7.99

$

In Stock, Qty 20+

0

17

Toro 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

18

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 16

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 112-9712

DECAL

$77.99

$

Usually ships in 3-6 days

0

21

Toro 110-0735-03

BAFFLE

$235.99

$

Usually ships in 3-6 days

0

22

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0
