30674 - Toro 36" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 310000001 - 310999999) (2010) DECK ASSEMBLY Parts Diagram

36" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

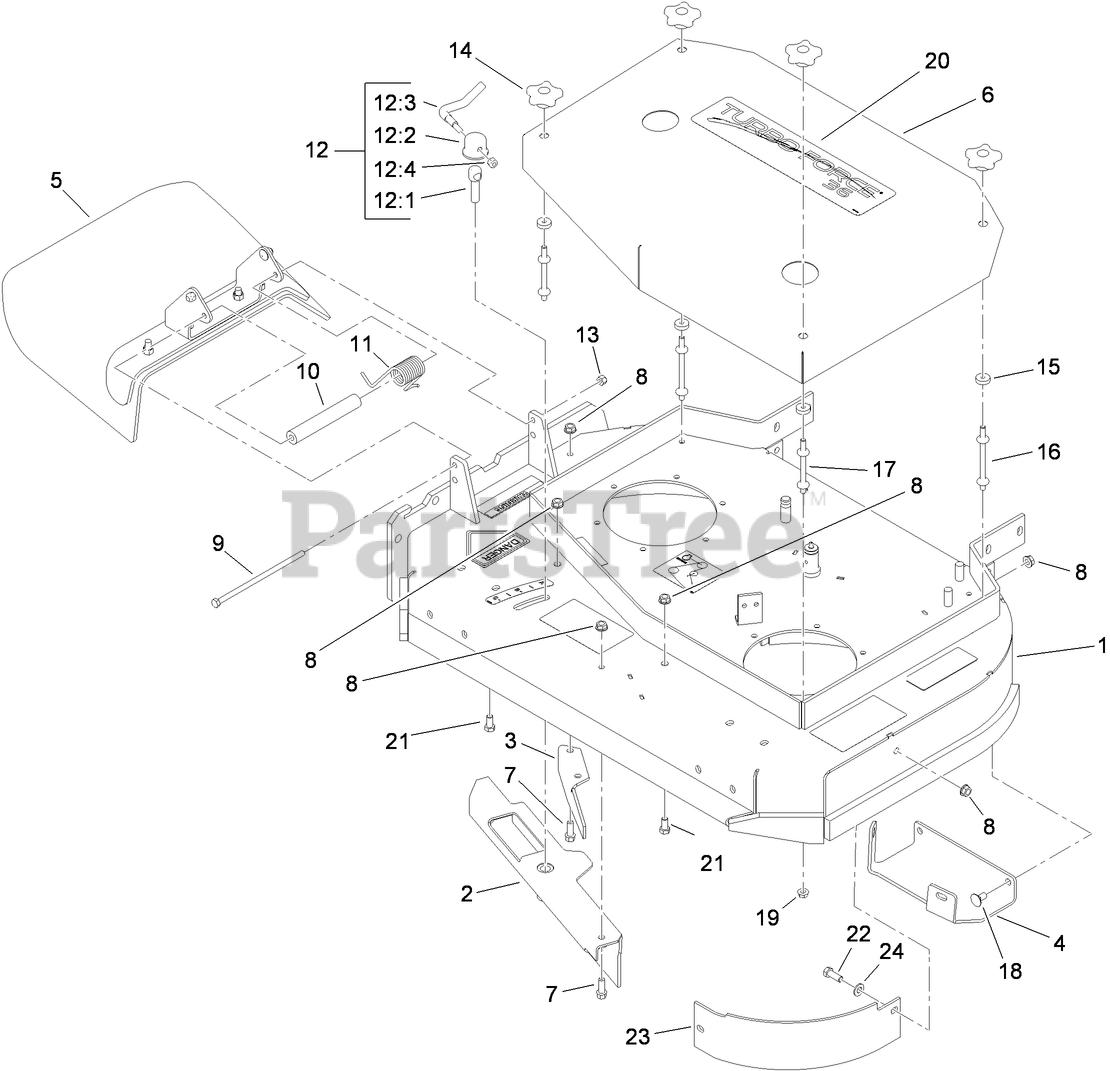

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 110-4907

DECK ASM

$3872.99

$

Usually ships in 3-6 days

0

2

Toro 110-2031-03

BAFFLE-ADJUSTABLE

$289.99

$

Usually ships in 3-6 days

0

3

Toro 110-0754-01

BAFFLE-DISCHARGE

$38.99

$

Usually ships in 3-6 days

0

4

Toro 110-2037-01

PLATE-SKID

$86.99

$

Usually ships in 3-6 days

0

5

Toro 119-6530

DEFLECTOR ASM

$271.99

$

Usually ships in 3-6 days

0

6

Toro 110-2036-01

COVER-DECK

$251.99

$

Usually ships in 3-6 days

0

7

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

8

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

10

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

11

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

12

Toro 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

12:1

Toro 106-3239

Screw-Lock

$52.99

$

Usually ships in 3-6 days

0

12:2

Toro 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

12:3

Toro 106-3241

Lever-Lock
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

12:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 15

0

15

Toro 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

16

Toro 1-303536

STUD-SHIELD, BELT (LONG)

$7.99

$

In Stock, Qty 20+

0

17

Toro 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

18

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

$77.99

$

Usually ships in 3-6 days

0

21

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

22

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Toro 110-6903-03

BAFFLE-FRONT, LH

$70.99

$

Usually ships in 3-6 days

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0
