30672 - Toro 32" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 314000001 - 314999999) (2014) FUEL SYSTEM ASSEMBLY Parts Diagram

32" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

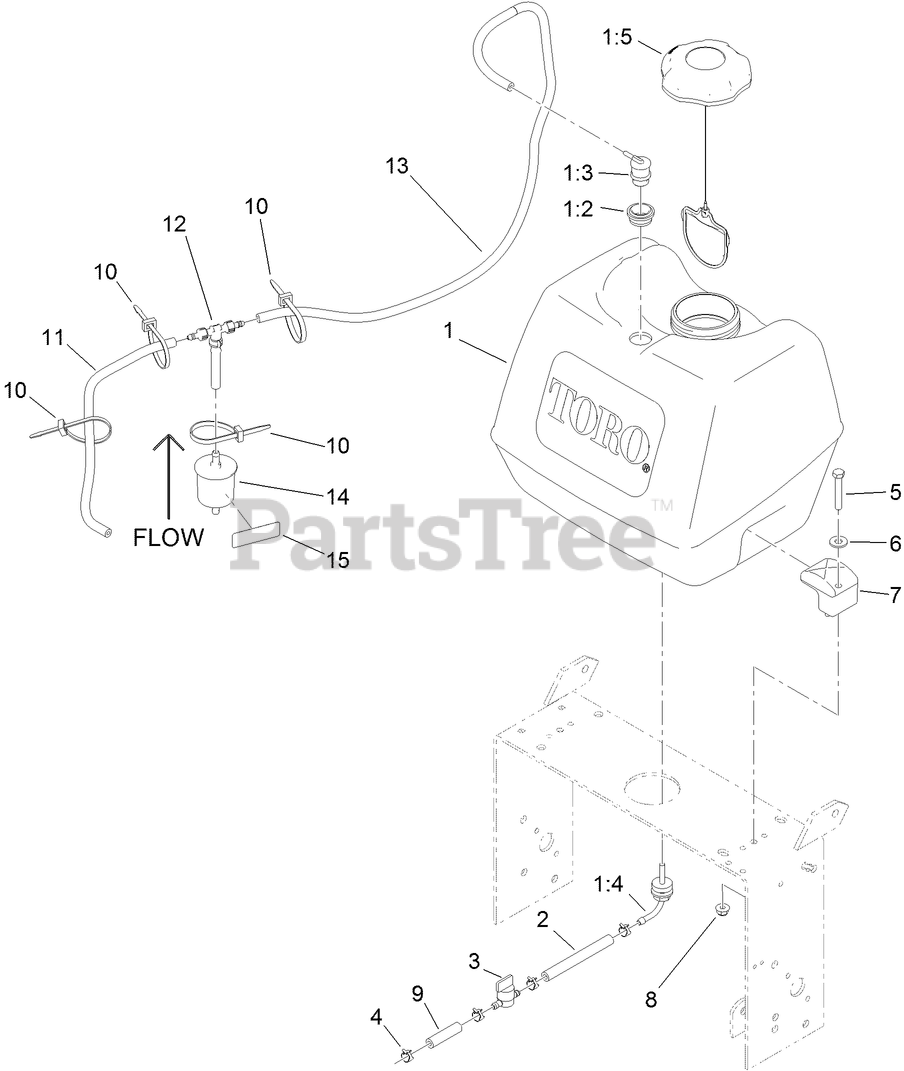

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 126-1526

FUEL TANK ASM

$

$

Not available

1:2

Toro 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

1:3

Toro 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

1:4

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

1:5

Toro 120-5461

CAP-FUEL, RATCHETING
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

2

Toro 109-0650

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

3

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

4

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

5

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

6

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Toro 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0

10

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

11

Toro 115-7872

HOSE-FUEL

$7.99

$

Usually ships in 3-6 days

0

12

Toro 116-5464

TEE AND CHECK

$46.99

$

In Stock, only 1 left!

0

13

Toro 116-4346

HOSE-EMISSIONS

$11.99

$

Usually ships in 3-6 days

0

14

Toro 120-2235

FILTER-FUEL

$9.49

$

In Stock, Qty 5

0

15

Toro 116-4769

DECAL-FILTER, EMISSIONS

$2.99

$

In Stock, only 3 left!

0
