30672 - Toro 32" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 311000001 - 311999999) (2011) FUEL SYSTEM ASSEMBLY Parts Diagram

32" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

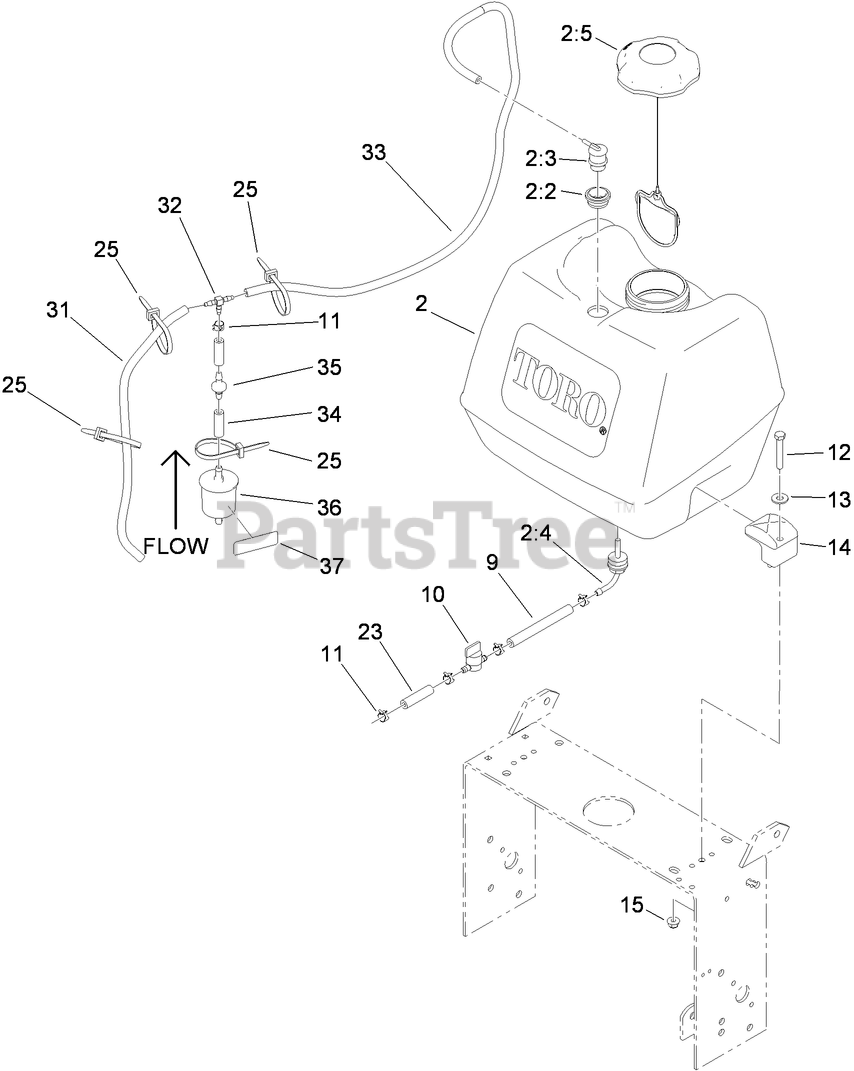

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

2

Toro 119-7899

FUEL TANK ASM
(Superseded to 126-1526)

$

$

Not available

2:2

Toro 119-6549

GROMMET-VALVE, ROLL-OVER
(Superseded to 114-0284)

$2.99

$

In Stock, Qty 19

0

2:3

Toro 114-0285

VALVE-ROLLOVER

$18.99

$

In Stock, only 1 left!

0

2:4

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

2:5

Toro 115-4465

CAP-FUEL, RATCHETING
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

9

Toro 109-0650

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

10

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

11

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

12

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

13

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

23

Toro 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0

25

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

31

Toro 115-7872

HOSE-FUEL

$7.99

$

Usually ships in 3-6 days

0

32

Toro 120-2234

FITTING-TEE

$3.99

$

Usually ships in 3-6 days

0

33

Toro 116-4346

HOSE-EMISSIONS

$11.99

$

Usually ships in 3-6 days

0

34

Toro 106-9492

HOSE-FUEL

$2.49

$

In Stock, only 2 left!

0

35

Toro 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, only 2 left!

0

36

Toro 120-2235

FILTER-FUEL

$9.49

$

In Stock, Qty 5

0

37

Toro 116-4769

DECAL-FILTER, EMISSIONS

$2.99

$

In Stock, only 3 left!

0
