30662 - Toro 62" Side-Discharge Mower Deck (SN: 079000001 - 079999999) (1997) Deflector, Cover And Gauge Wheel Parts Diagram

62" Side-Discharge Mower Deck

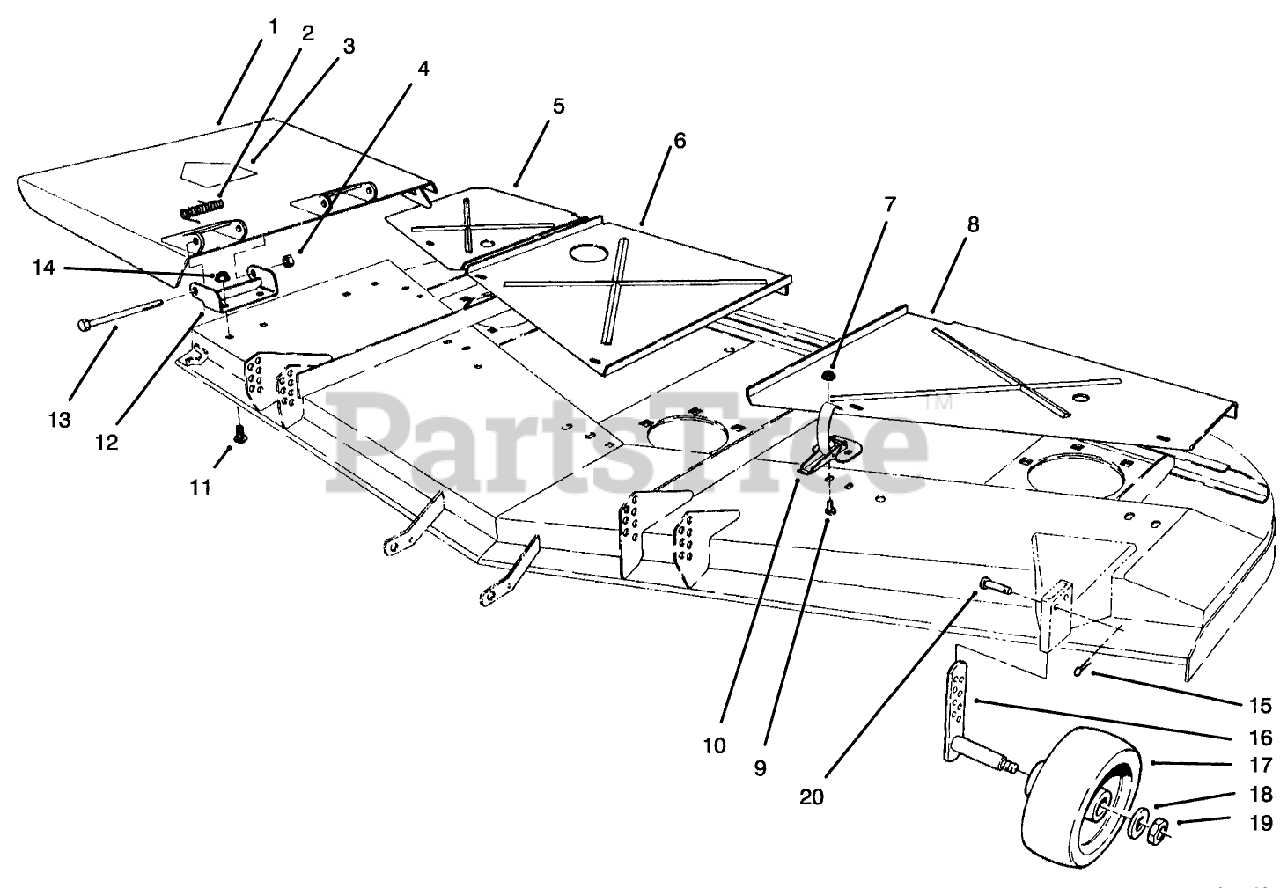

Deflector, Cover And Gauge Wheel Parts Diagram

  • Title

1

Toro 14-0909

DEFLECTOR ASM

$403.99

$

Usually ships in 3-6 days

0

2

Toro 51-1550

SPRING

$13.99

$

In Stock, only 2 left!

0

3

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

4

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

5

Toro 63-9830

See Supercession: 63-9830-01
(Superseded to 63-9830-01)

$

$

Not available

6

Toro 72-9320

See Supercession: 72-9320-01
(Superseded to 72-9320-01)

$182.99

$

Usually ships in 3-6 days

0

7

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

8

Toro 44-6290

See Supercession: 44-6290-01
(Superseded to 44-6290-01)

$

$

Not available

9

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

10

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

11

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

12

Toro 51-1530

See Supercession: 51-1530-01
(Superseded to 51-1530-01)

$40.99

$

Usually ships in 3-6 days

0

13

Toro 325-17

SCREW-HH

$5.99

$

In Stock, Qty 6

0

14

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

15

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 6

0

16

Toro 68-2350

GAGE-WHEEL

$135.99

$

Usually ships in 3-6 days

0

17

Toro 68-2730

See Supercession: 1-603299
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 8

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

20

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0
