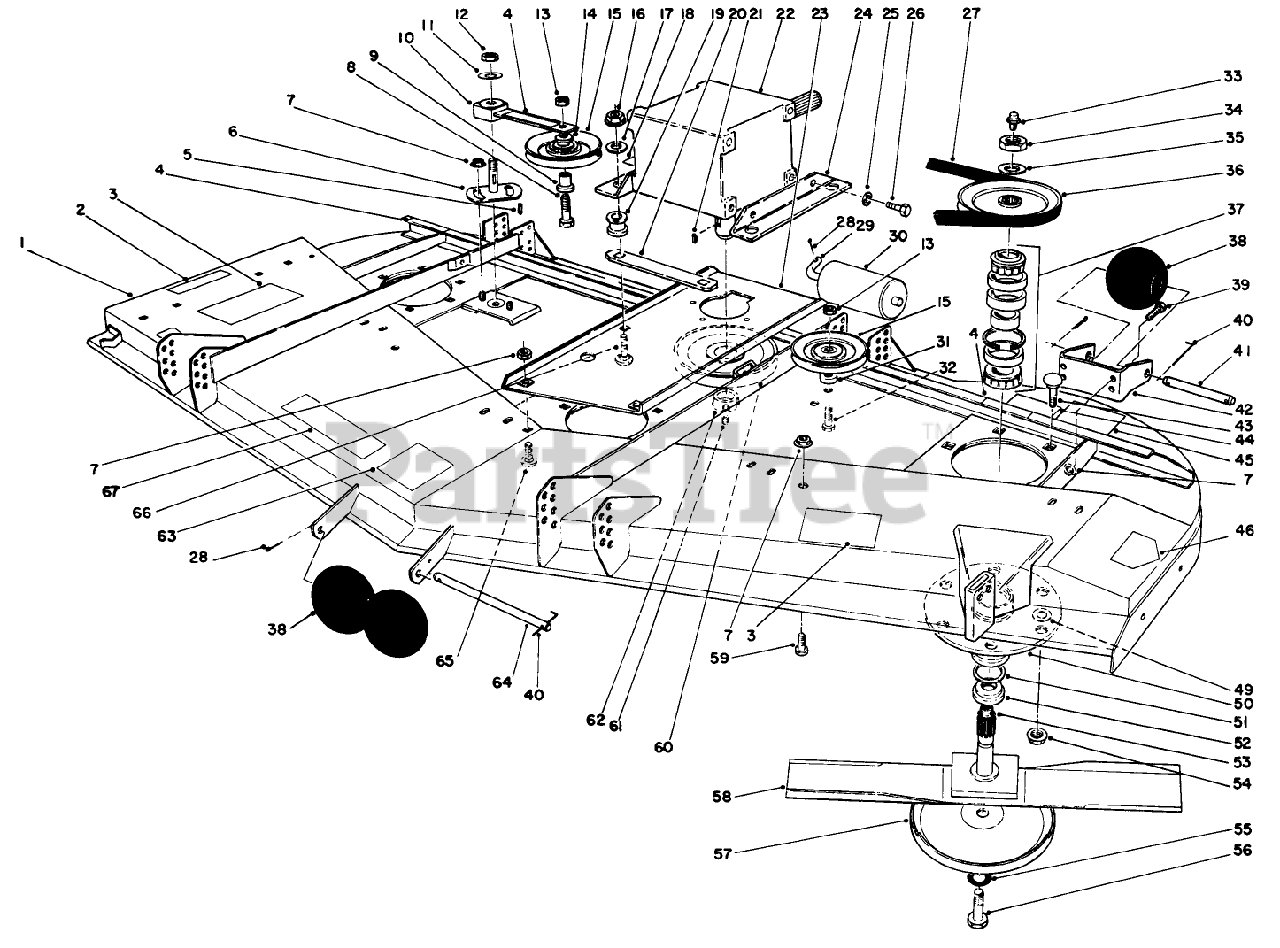

30662 - Toro 62" Side-Discharge Mower Deck (SN: 039000001 - 039999999) (1993) DECK, GEAR BOX AND SPINDLE ASSEMBLY Parts Diagram

62" Side-Discharge Mower Deck

DECK, GEAR BOX AND SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 63-9841

Cuffing Deck
(Superseded to 63-9841-01)

$

$

Not available

2

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

3

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

4

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

5

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

6

Toro 44-6300

PLATE-IDLER

$139.99

$

Usually ships in 3-6 days

0

7

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

8

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

9

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

10

Toro 27-8580

IDLER ARM ASM
(Superseded to 99-1297)

$160.99

$

In Stock, only 1 left!

0

11

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

12

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

13

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

14

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

15

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

16

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

17

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

18

Toro 70-2560

DECAL-OIL
(Superseded to 93-6697)

$15.99

$

Usually ships in 3-6 days

0

19

Toro 63-9750

MOUNT

$20.99

$

In Stock, only 3 left!

0

20

Toro 68-9890

Cover-Gear Box
(Superseded to 68-9890-01)

$56.99

$

Usually ships in 3-6 days

0

21

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

22

Toro 68-6810

Gearbox
(Superseded to 108-1370)

$1052.99

$

Usually ships in 3-6 days

0

23

Toro 72-9310

Base-Gearbox
(Superseded to 72-9310-01)

$152.99

$

Usually ships in 3-6 days

0

24

Toro 68-8560

Bracket-Gearbox
(Superseded to 68-8560-03)

$56.99

$

Usually ships in 3-6 days

0

25

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

26

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

27

Toro 44-6260

V-BELT

$68.99

$

In Stock, only 3 left!

0

28

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

29

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

30

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

31

Toro 44-6390

SPACER

$23.99

$

Usually ships in 3-6 days

0

32

Toro 3211-9

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

33

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

34

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

35

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

36

Toro 44-6340

PULLEY AND HUB ASM

$70.99

$

In Stock, only 1 left!

0

37

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

38

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

39

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

40

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

41

Toro 57-0680

SHAFT-ROLLER

$

$

Not available

42

Toro 57-0580

Bracket-Roller
(Superseded to 57-0580-01)

$70.99

$

Usually ships in 3-6 days

0

43

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

44

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

45

Toro 68-7260

DECAL-WARNING

$

$

Not available

46

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

49

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

50

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

51

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

52

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

53

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

54

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

55

Toro 67-5770

WASHER

$4.49

$

Usually ships in 3-6 days

0

56

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

57

Toro 72-9361

CUP-SCALP, ANTI

$42.99

$

Usually ships in 3-6 days

0

58

Toro 44-6250

Blade
(Superseded to 44-6250-03)

$26.99

$

In Stock, only 3 left!

0

59

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

60

Toro 63-9900

PULLEY

$164.99

$

Usually ships in 3-6 days

0

61

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 12

0

62

Toro 27-6140

Bushing-Taper Lock (Incl. Ref. #61)

$103.99

$

Usually ships in 3-6 days

0

63

Toro 66-1630

DECAL

$17.99

$

Usually ships in 3-6 days

0

64

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

65

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

66

Toro 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

67

Toro 74-2080

DECAL-PROLINE

$

$

Not available

Toro 44-6370

Assembly-Spindle (Incl. Ref. #33-37 & 50-53)

Note: Not Illustrated.

$

$

Not available
