30652 - Toro 52" Side-Discharge Mower Deck (SN: 079000001 - 079999999) (1997) GEAR BOX ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

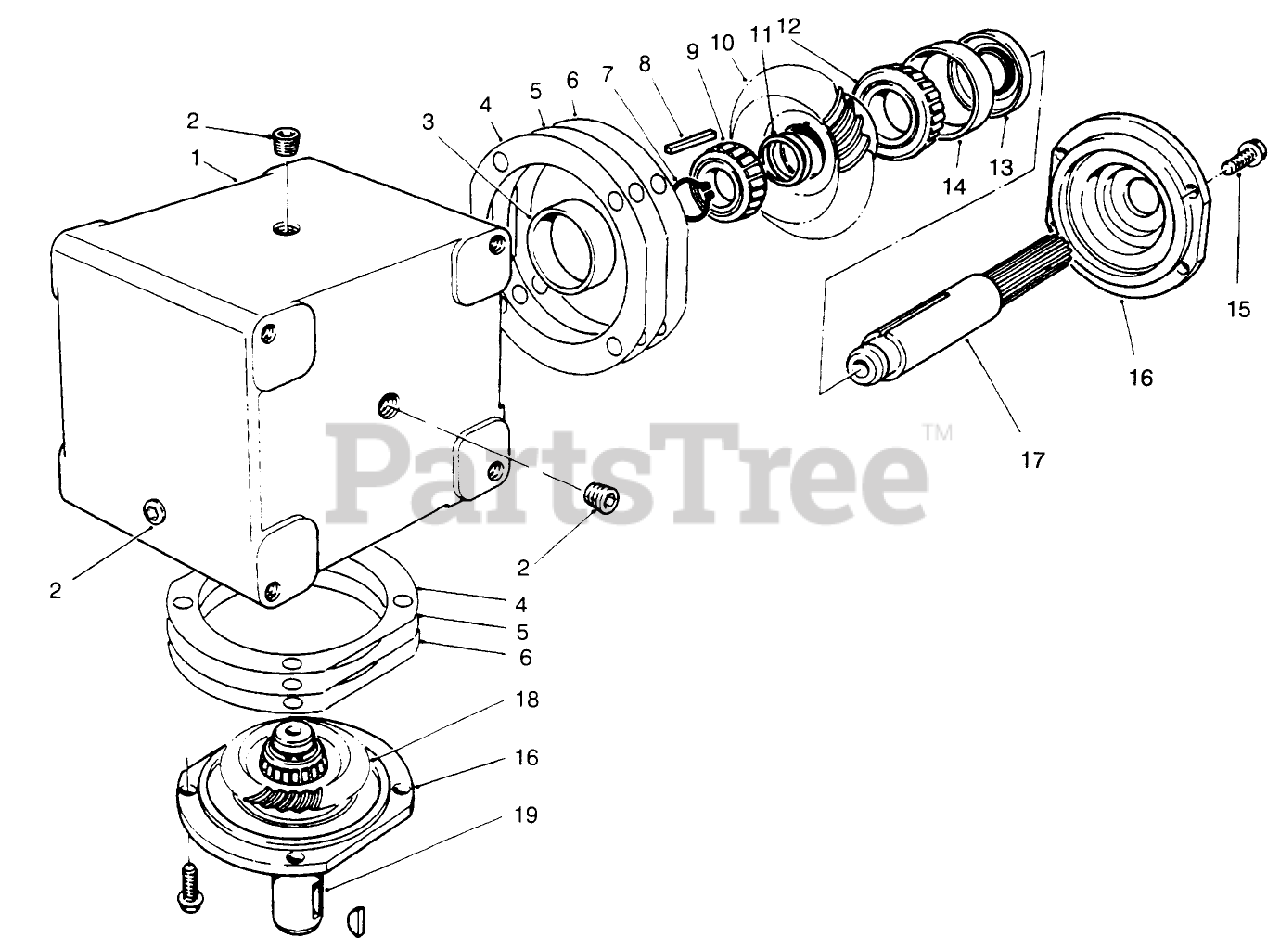

GEAR BOX ASSEMBLY Parts Diagram

  • Title

1

Toro 68-7030

HOUSING

$

$

Not available

2

Toro 62-3490

PLUG (OBS, C/R TO 281-10)
(Superseded to 281-10)

$18.99

$

Usually ships in 3-6 days

0

3

Toro 62-3360

Bearing Cup
(Superseded to 254-67)

$16.99

$

In Stock, only 2 left!

0

4

Toro 62-3420

GASKET

$13.99

$

In Stock, only 2 left!

0

5

Toro 62-3430

GASKET

$7.49

$

Usually ships in 3-6 days

0

6

Toro 62-3440

GASKET

$

$

Not available

7

Toro 68-7070

Ring-Retaining
(Superseded to 32151-79)

$6.99

$

Usually ships in 3-6 days

0

8

Toro 62-3380

Key
(Superseded to 10-7070)

$1.49

$

In Stock, Qty 7

0

9

Toro 62-3370

Cone
(Superseded to 254-68)

$35.99

$

In Stock, only 2 left!

0

10

Toro 68-7080

Gear

$

$

Not available

11

Toro 72-9370

SHIM

$14.99

$

In Stock, only 3 left!

0

12

Toro 62-3330

Cone
(Superseded to 254-94)

$9.49

$

In Stock, Qty 20+

0

13

Toro 62-3400

Seal
(Superseded to 253-118)

$19.99

$

In Stock, Qty 20+

0

14

Toro 62-3340

Cup
(Superseded to 254-72)

$10.99

$

In Stock, Qty 20+

0

15

Toro 62-3310

SCREW-HH (OBS, C/R TO 3234-5)
(Superseded to 323-45)

$4.49

$

In Stock, Qty 17

0

16

Toro 62-3410

Cap

$

$

Not available

17

Toro 68-7040

Shaft

$

$

Not available

18

Toro 68-7060

Gear

$

$

Not available

19

Toro 68-7050

Shaft

$

$

Not available

Toro 68-6810

Gear Box Assembly (Incl. Ref. #1-19)
(Superseded to 108-1370)

Note: Not illustrated

$1104.99

$

Usually ships in 3-6 days

0
