30652 - Toro 52" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) DECK AND SPINDLE ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

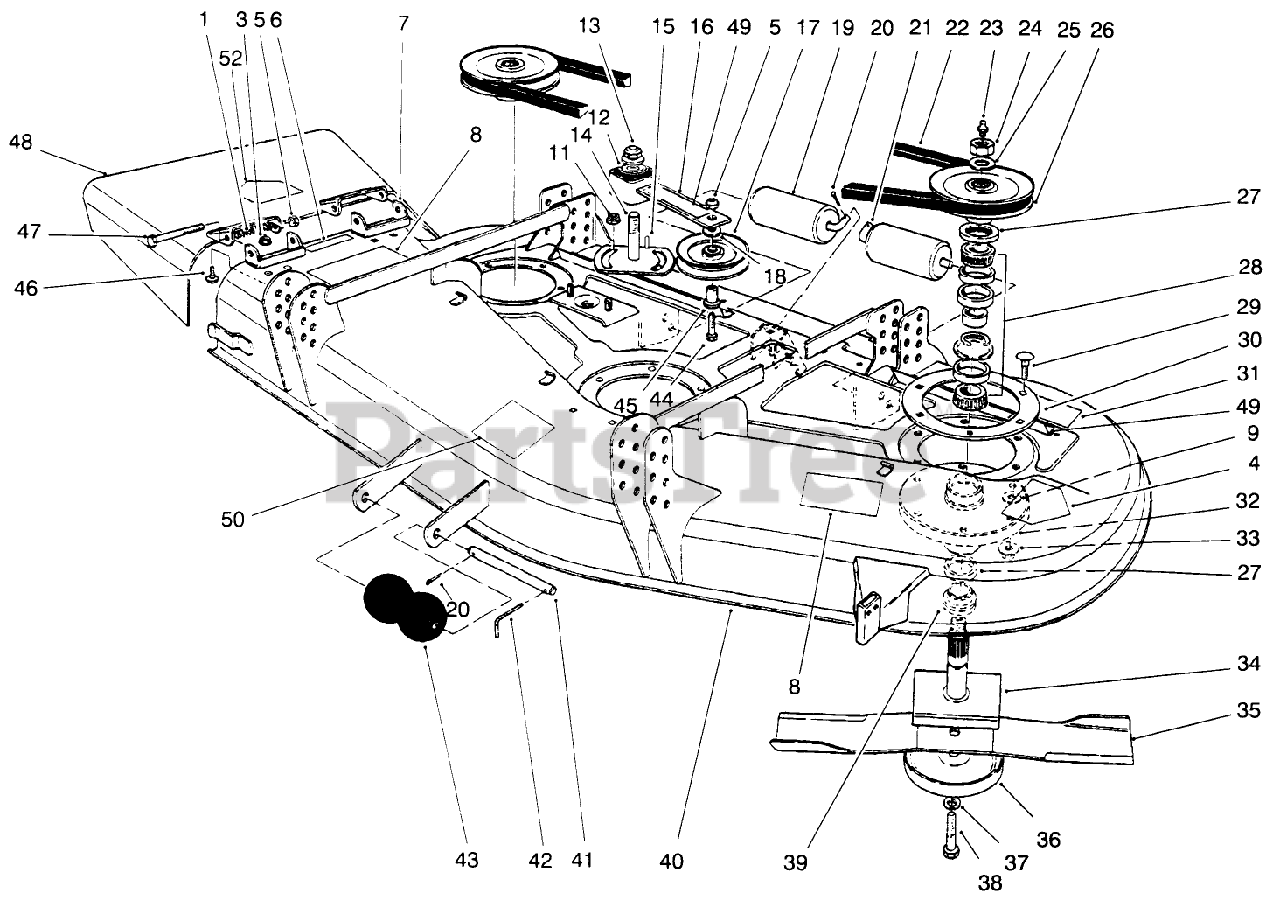

DECK AND SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

3

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

4

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

5

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

6

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

7

Toro 29-5590

Bracket-Pivot
(Superseded to 29-5590-03)

$

$

Not available

8

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

13

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

14

Toro 28-9060

PLATE-IDLER

$179.99

$

Usually ships in 3-6 days

0

15

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

16

Toro 27-8580

IDLER ARM ASM
(Superseded to 99-1297)

$160.99

$

In Stock, only 1 left!

0

17

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

18

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

19

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

20

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

21

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

22

Toro 27-1160

V-BELT

$63.99

$

In Stock, only 1 left!

0

23

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

24

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

25

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

26

Toro 27-0970

PULLEY AND HUB ASM
(Superseded to 27-0970-03)

$53.99

$

Usually ships in 3-6 days

0

27

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

28

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

29

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

30

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

31

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

32

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

33

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Toro 27-0920

SHAFT

$190.99

$

In Stock, only 1 left!

0

35

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, only 3 left!

0

36

Toro 72-9361

CUP-SCALP, ANTI

$42.99

$

Usually ships in 3-6 days

0

38

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 12

0

39

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

40

Toro 72-9211

Cutting Deck
(Superseded to 72-9211-01)

$

$

Not available

41

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

42

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

43

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

44

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

45

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

46

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

47

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

48

Toro 13-3949

Deflector-Grass (Incl. Ref. #52)

$

$

Not available

49

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

50

Toro 51-3960

DECAL

$27.99

$

Usually ships in 3-6 days

0

52

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

Toro 27-0870

Assembly-Spindle (Incl. Ref. #23-28, 32, 34 & 39)

Note: Not illustrated

$548.99

$

Usually ships in 3-6 days

0
