30652 - Toro 52" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) COUNTER BALANCE ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

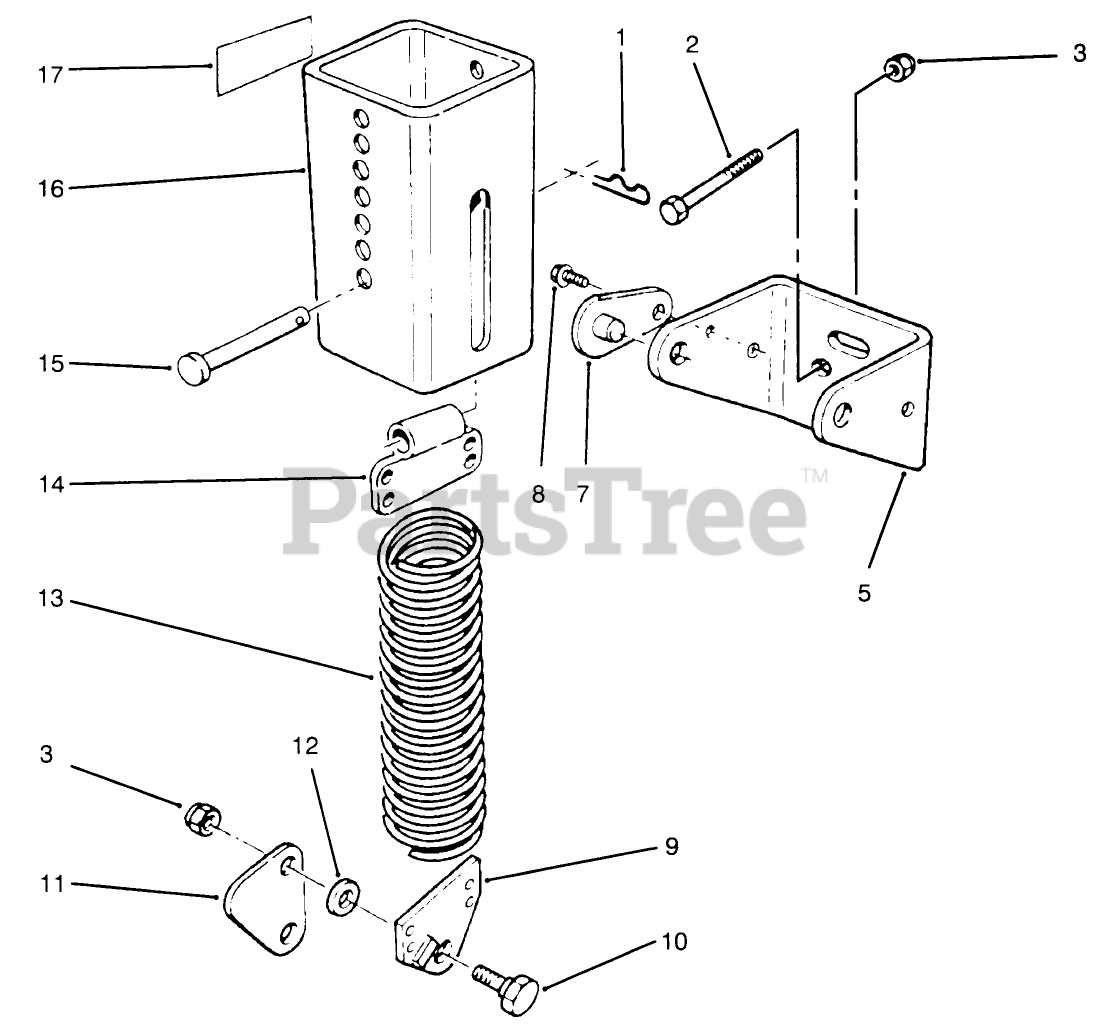

COUNTER BALANCE ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

2

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

3

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

5

Toro 66-8460

Bracket-Mounting
(Superseded to 66-8460-01)

$

$

Not available

7

Toro 70-7920

PIN-LOCK

$28.99

$

Usually ships in 3-6 days

0

8

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

9

Toro 66-8420

End Spring
(Superseded to 66-8420-03)

$70.99

$

Usually ships in 3-6 days

0

10

Toro 46-3380

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

11

Toro 66-8450

Link Knee
(Superseded to 66-8450-01)

$29.99

$

Usually ships in 3-6 days

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 66-8390

Spring-Extension
(Superseded to 66-8390-03)

$47.99

$

Usually ships in 3-6 days

0

14

Toro 70-7940

End Spring
(Superseded to 70-7940-03)

$57.99

$

Usually ships in 3-6 days

0

15

Toro 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 3 left!

0

16

Toro 70-7970

Asm-Spring Cover
(Superseded to 99-1298)

$

$

Not available

17

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

Toro 70-8090

Counter Balance Assembly (Incl. Ref. #1-17)

Note: Not illustrated

$

$

Not available
