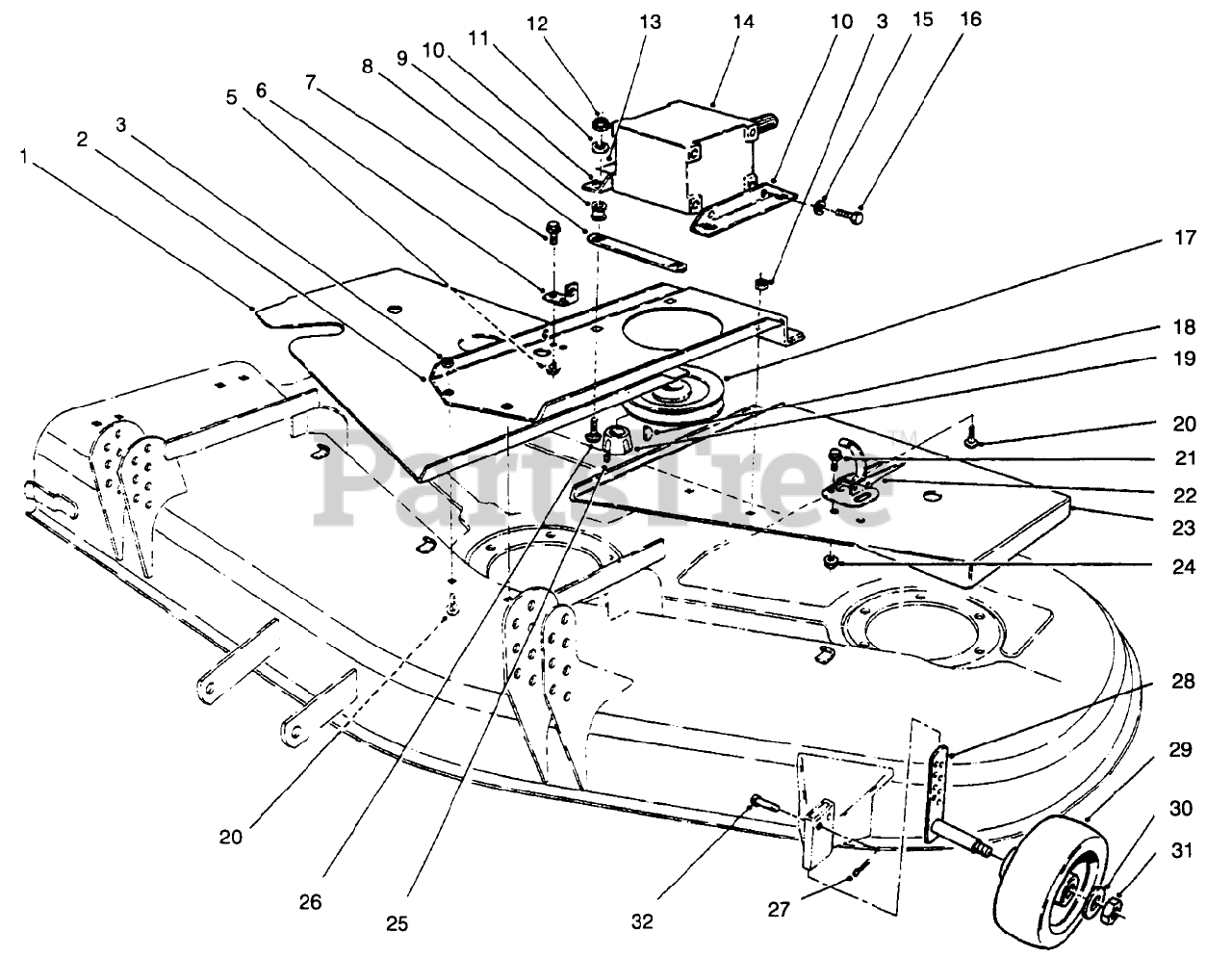

30652 - Toro 52" Side-Discharge Mower Deck (SN: 049000001 - 049999999) (1994) COVERS, GEAR BOX AND GAUGE WHEEL ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

COVERS, GEAR BOX AND GAUGE WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 72-9330

Cover RH
(Superseded to 119-4763-01)

$117.99

$

Usually ships in 3-6 days

0

2

Toro 72-9230

Base-Gear Box
(Superseded to 72-9230-01)

$211.99

$

Usually ships in 3-6 days

0

3

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 72-9240

Bracket-Extension
(Superseded to 72-9240-01)

$32.99

$

Usually ships in 3-6 days

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 68-9890

Cover-Gear Box
(Superseded to 68-9890-01)

$56.99

$

Usually ships in 3-6 days

0

9

Toro 63-9750

MOUNT

$20.99

$

In Stock, only 3 left!

0

10

Toro 68-8560

Bracket-Gearbox
(Superseded to 68-8560-03)

$56.99

$

Usually ships in 3-6 days

0

11

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

12

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

13

Toro 70-2560

DECAL-OIL
(Superseded to 93-6697)

$15.99

$

Usually ships in 3-6 days

0

14

Toro 68-6810

Gearbox
(Superseded to 108-1370)

$1052.99

$

Usually ships in 3-6 days

0

15

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

16

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

17

Toro 63-9900

PULLEY

$164.99

$

Usually ships in 3-6 days

0

18

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

19

Toro 27-6140

Bushing-Taper Lock (Incl. Ref. #25)

$103.99

$

Usually ships in 3-6 days

0

20

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

21

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

22

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

23

Toro 72-9340

Cover LH
(Superseded to 119-4762-01)

$111.99

$

Usually ships in 3-6 days

0

24

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

25

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 12

0

26

Toro 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

27

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 6

0

28

Toro 68-2350

GAGE-WHEEL

$135.99

$

Usually ships in 3-6 days

0

29

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

30

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

31

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

32

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0
