3063356 - Bobcat 61" Z-VAC Triple Bag Catcher BLOWER UNIT GROUP Parts Diagram

61" Z-VAC Triple Bag Catcher

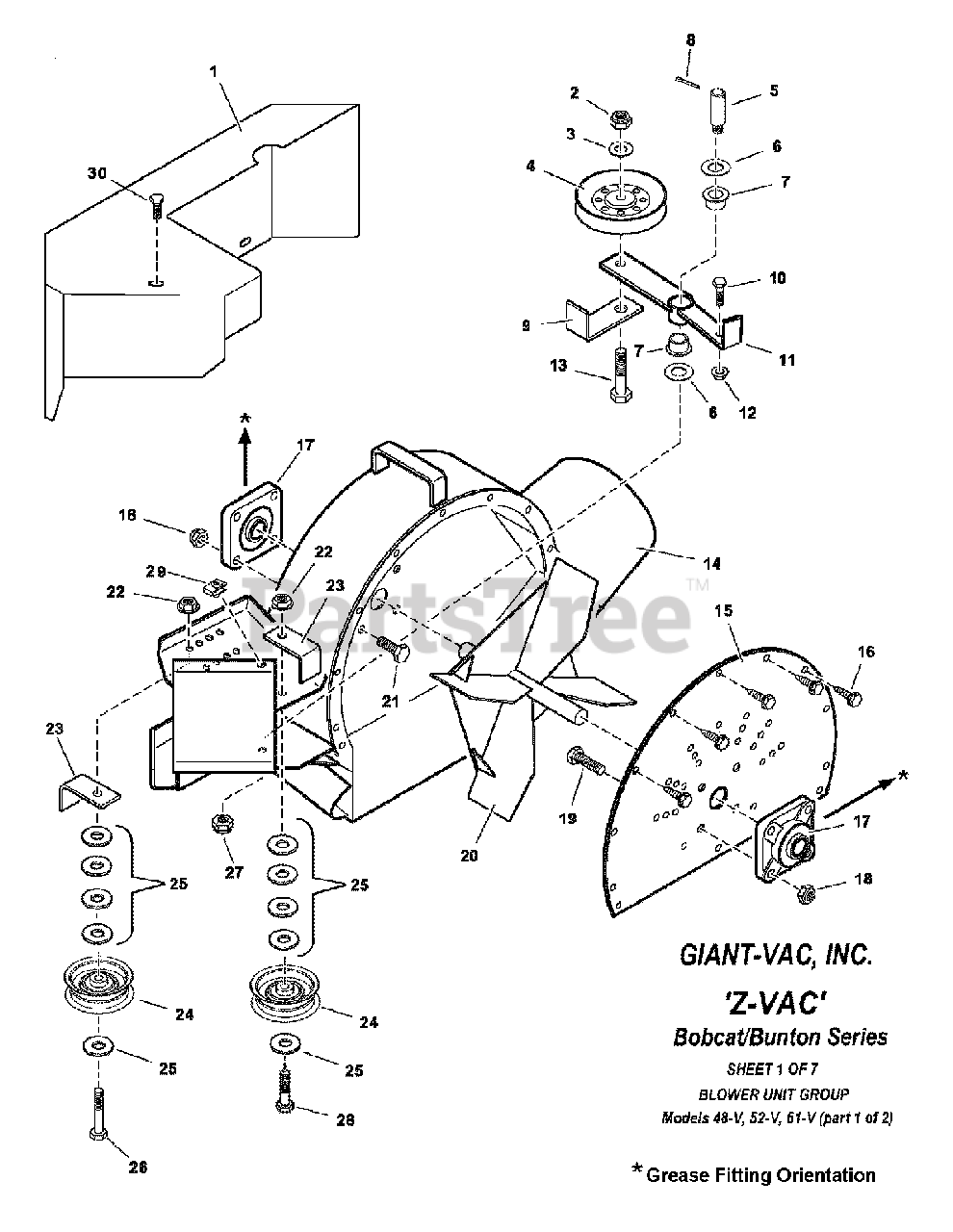

BLOWER UNIT GROUP Parts Diagram

  • Title

1

Giant-Vac 3046782

WELDMENT, Blower Belt Guard
(Superseded to 3046782SM)

$108.99

$

Usually ships in 2-12 days

0

2

Giant-Vac 7091121

NUT, 1/2-13 Hex Nyloc

$

$

Not available

3

Giant-Vac 7091587

WASHER, 1/2" Flat SAE
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

4

Giant-Vac 3021097

PULLEY, A Groove Idler, Steel
(Superseded to 3021097YP)

$68.99

$

Usually ships in 2-12 days

0

5

Giant-Vac 7035816

IDLER STUD (3/8-24 thread)
(Superseded to 7035816YP)

$100.99

$

Usually ships in 2-12 days

0

6

Giant-Vac 7091804

WASHER, 9/16 Flat, Narrow Type
(Superseded to 7091804SM)

$3.99

$

In Stock, only 2 left!

0

7

Giant-Vac 7014409

FLANGE BEARING, 9/16" I.D.
(Superseded to 7014409SM)

$6.99

$

In Stock, Qty 19

0

8

Giant-Vac 7091598

COTTER PIN, 1/8 x 3/4"
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

9

Giant-Vac 3046824

BELT RETAINER, Idler
(Superseded to 3046824YP)

$19.99

$

Usually ships in 2-12 days

0

10

Giant-Vac 7091527

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

11

Giant-Vac 3047253

WELDMENT, Idler Arm
(Superseded to 3047253YP)

$113.99

$

Usually ships in 2-12 days

0

12

Giant-Vac 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

13

Giant-Vac 7091218

SCREW, 1/2-13 x 2-1/2" Hex Head Cap, GR5
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

14

Giant-Vac 3046781

WELDMENT, Blower Housing
(Superseded to 3046781YP)

$615.99

$

Usually ships in 2-12 days

0

15

Giant-Vac 3046853

BACK PLATE, Blower
(Superseded to 3046853YP)

$59.99

$

Usually ships in 2-12 days

0

16

Giant-Vac 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

17

Giant-Vac 3022832

BEARING, Pillow Block, Blower
(Superseded to 3022832SM)

Note: includes grease fitting

$

$

Not available

18

Giant-Vac 7090839

NUT, 7/16-14 Hex Center Lock
(Superseded to 7090839SM)

$4.99

$

In Stock, only 4 left!

0

19

Giant-Vac 3031920

SCREW, 7/16-14 x 1-1/2" Hex Head Cap, GR5

$

$

Not available

20

Giant-Vac 3046854

WELDMENT, Impeller, Fast Vac Blower
(Superseded to 5403741SM)

$250.99

$

Usually ships in 2-12 days

0

21

Giant-Vac 3031919

SCREW, 7/16-14 x 1-1/4" Hex Head Cap, GR5

$

$

Not available

22

Giant-Vac 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

23

Giant-Vac 3046813

BELT RETAINER

$

$

Not available

24

Giant-Vac 7035867

PULLEY, Flat Idler, 2-3/4" O.D.
(Superseded to 7035867YP)

$59.99

$

In Stock, only 2 left!

0

25

Giant-Vac 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

26

Giant-Vac 7091560

SCREW, 3/8-16 x 2-1/4" Hex Head Cap, GR5
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

27

Giant-Vac 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

28

Giant-Vac 7091305

SCREW, 3/8-16 x 2", Hex Head Cap, GR5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

29

Giant-Vac 7092111

U-CLIP, 5/16-18
(Superseded to 7092111YP)

$3.99

$

Usually ships in 2-12 days

0

30

Giant-Vac 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0
