3063355 - Bobcat 52" Z-VAC Triple Bag Catcher BLOWER MOUNT GROUP Parts Diagram

52" Z-VAC Triple Bag Catcher

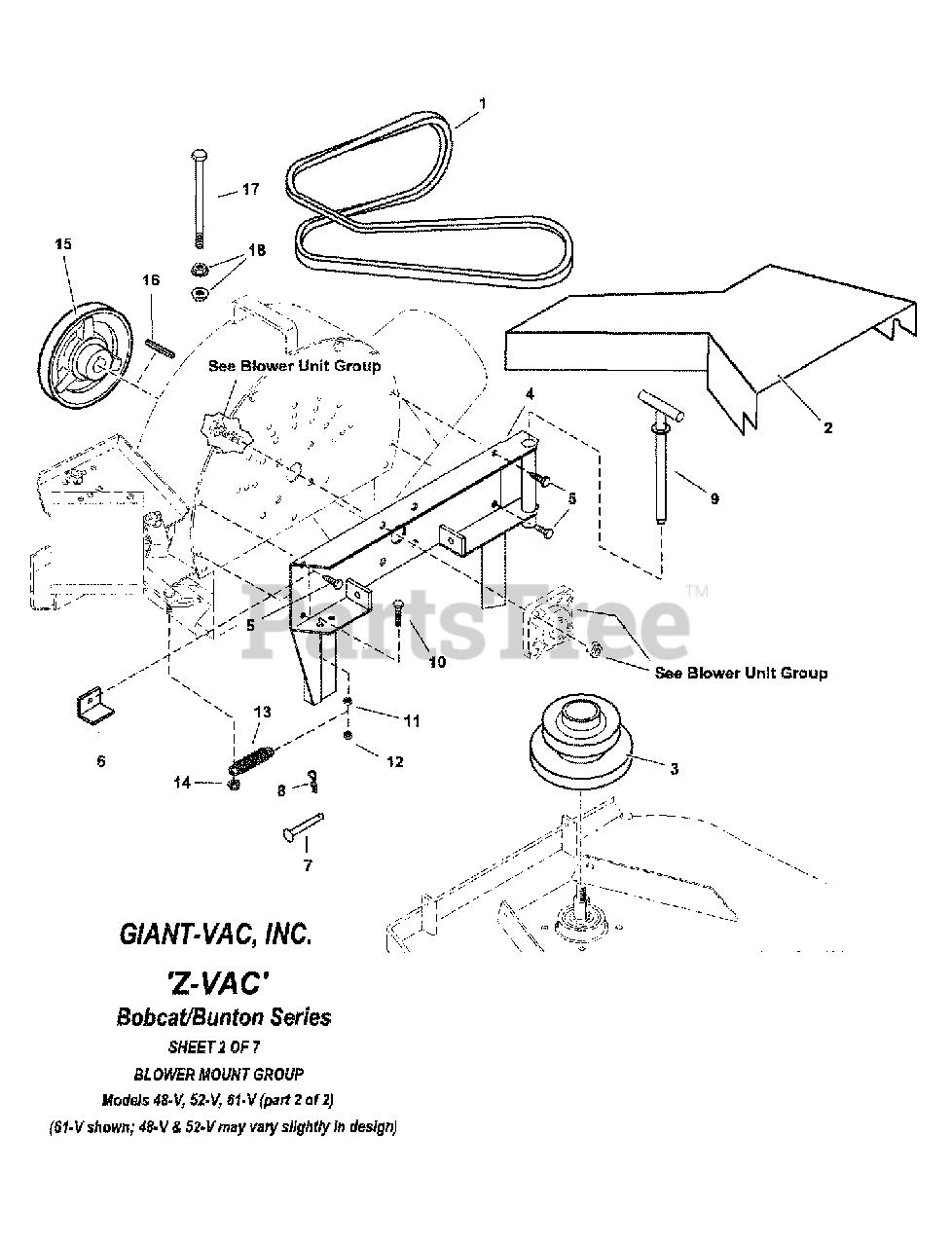

BLOWER MOUNT GROUP Parts Diagram

  • Title

1

Giant-Vac 3036316

BELT, Blower Unit Drive, Model 48-V, 61-V

$

$

Currently unavailable

1

Giant-Vac 3036322

BELT, Blower Unit Drive, Model 52-V

$35.99

$

Usually ships in 2-12 days

0

2

Giant-Vac 3037676

WELDMENT, 48" Belt Shield

$

$

Not available

2

Giant-Vac 3037677

WELDMENT, 52" Belt Shield

$

$

Not available

2

Giant-Vac 3037158

WELDMENT, 61" Belt Shield

$

$

Currently unavailable

3

Giant-Vac 3036315

PULLEY, Deck, Bobcat

$

$

Not available

4

Giant-Vac 3027487

WELDMENT, Mounting Bracket, 48" Fast-Vac

$

$

Not available

4

Giant-Vac 3027488

WELDMENT, Mounting Bracket, 52" Fast-Vac

$

$

Not available

4

Giant-Vac 3027471

WELDMENT, Mounting Bracket, 61" Fast-Vac

$

$

Not available

5

Giant-Vac 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

6

Giant-Vac 3027489

CLIP, Belt Guard Support

Note: used on Model 48-V only

$

$

Not available

Giant-Vac 3027507

WELDMENT, Guard Support Bracket

Note: not shown; used on 52-V & 61-V Models only

$35.99

$

Usually ships in 2-12 days

0

7

Giant-Vac 3046773

ROD, Quick Connect

$

$

Not available

8

Giant-Vac 7076988

HAIRPIN, Cotter
(Superseded to 7076988YP)

$3.49

$

In Stock, only 2 left!

0

9

Giant-Vac 3032118

WELDMENT, T-Handle Pin
(Superseded to 3032118YP)

$49.99

$

Usually ships in 2-12 days

0

10

Giant-Vac 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

11

Giant-Vac 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Giant-Vac 7091067

NUT, 5/16-18 Hex Center Lock, GR B
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

13

Giant-Vac 3020807

SPRING, Idler, Fast Vac
(Superseded to 3020807SM)

$18.99

$

Usually ships in 2-12 days

0

14

Giant-Vac 7091067

NUT, 5/16-18 Hex Center Lock, GR B
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

15

Giant-Vac 3046806

PULLEY, Blower Input, Model 48-V & 52-V
(Superseded to 3046806YP)

$64.99

$

Usually ships in 2-12 days

0

15

Giant-Vac 3046807

PULLEY, Blower Input, Model 61-V

$

$

Not available

16

Giant-Vac 7012315

KEY, 1/4 Square x 1-7/16"
(Superseded to 7012315YP)

$2.99

$

Usually ships in 2-12 days

0

17

Giant-Vac 7091617

SCREW, 3/8-16 x 6" Hex Head Cap, GR5
(Superseded to 7091617YP)

$6.99

$

Usually ships in 2-12 days

0

18

Giant-Vac 7090951

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0
