3063355 - Bobcat 52" Z-VAC Triple Bag Catcher 3 BAG CATCHER MOUNT GROUP Parts Diagram

52" Z-VAC Triple Bag Catcher

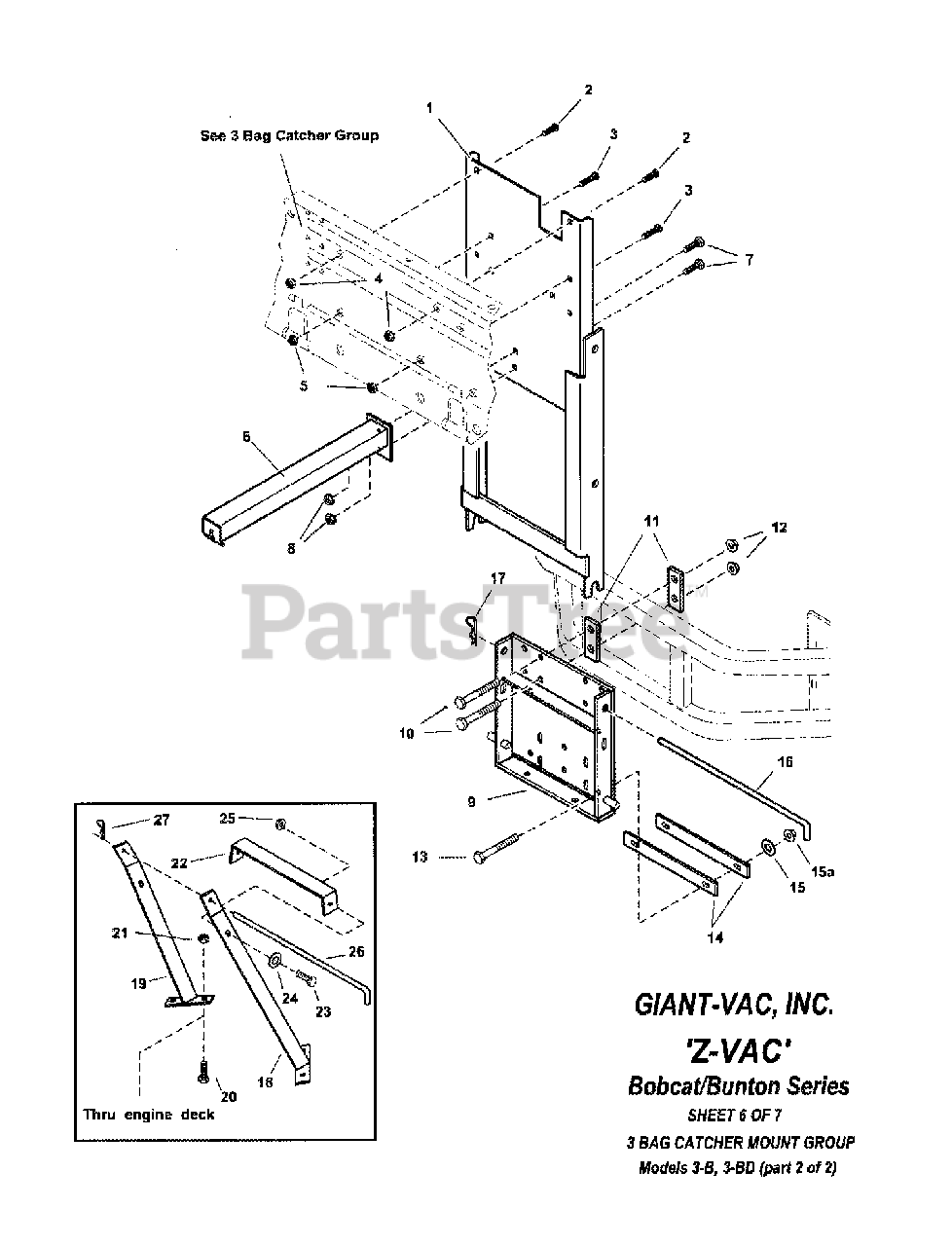

3 BAG CATCHER MOUNT GROUP Parts Diagram

  • Title

1

Giant-Vac 3027509

WELDMENT, Catcher Support

$

$

Currently unavailable

2

Giant-Vac 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

3

7091202

BOLT, 5/16-18 x 1-1/4" Square Neck Carriage

$

$

Not available

4

Giant-Vac 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Giant-Vac 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Giant-Vac 3046831

WELDMENT, Cover Latch Arm

$

$

Currently unavailable

7

Giant-Vac 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

8

Giant-Vac 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Giant-Vac 1723436

WELDMENT, Bumper Mount Plate
(Superseded to 1732625ASM)

$131.99

$

Usually ships in 2-12 days

0

10

Giant-Vac 7091501

SCREW, 3/8-16 x 2-1/2" Hex Head Cap, GR5
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0

11

Giant-Vac 3046992

BAR, Clamp
(Superseded to 3046992YP)

$7.99

$

Usually ships in 2-12 days

0

12

Giant-Vac 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

13

Giant-Vac 7090730

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, GR5

$

$

Not available

14

Giant-Vac 3047506

REINFORCEMENT, Bumper

$

$

Not available

15

Giant-Vac 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15a

Giant-Vac 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

16

Giant-Vac 1717085

HITCH ROD
(Superseded to 1717085SM)

$50.99

$

In Stock, only 2 left!

0

17

Giant-Vac 1960033

HAIRPIN, Clip
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

18

Giant-Vac 3027473

BAGGER BRACE, RH Side, Model 3-B

$

$

Currently unavailable

18

Giant-Vac 3027494

BAGGER BRACE, LH Side, Model 3-BD

$

$

Currently unavailable

19

Giant-Vac 3027472

BAGGER BRACE, LH Side, Model 3-B

$

$

Not available

19

Giant-Vac 3027495

BAGGER BRACE, LH Side, Model 3-BD

$

$

Not available

20

Giant-Vac 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

21

Giant-Vac 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Giant-Vac 3027474

BAGGER BRACE, Center

$

$

Currently unavailable

23

Giant-Vac 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, GR5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

24

Giant-Vac 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Giant-Vac 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

26

Giant-Vac 3032119

PIN, Bagger Brace Locking

$

$

Not available

27

Giant-Vac 7076988

HAIRPIN, Cotter
(Superseded to 7076988YP)

$3.49

$

In Stock, only 2 left!

0
