3063354 - Bobcat 52" Z-VAC Twin Bag Catcher 2 BAG CATCHER GROUP Parts Diagram

52" Z-VAC Twin Bag Catcher

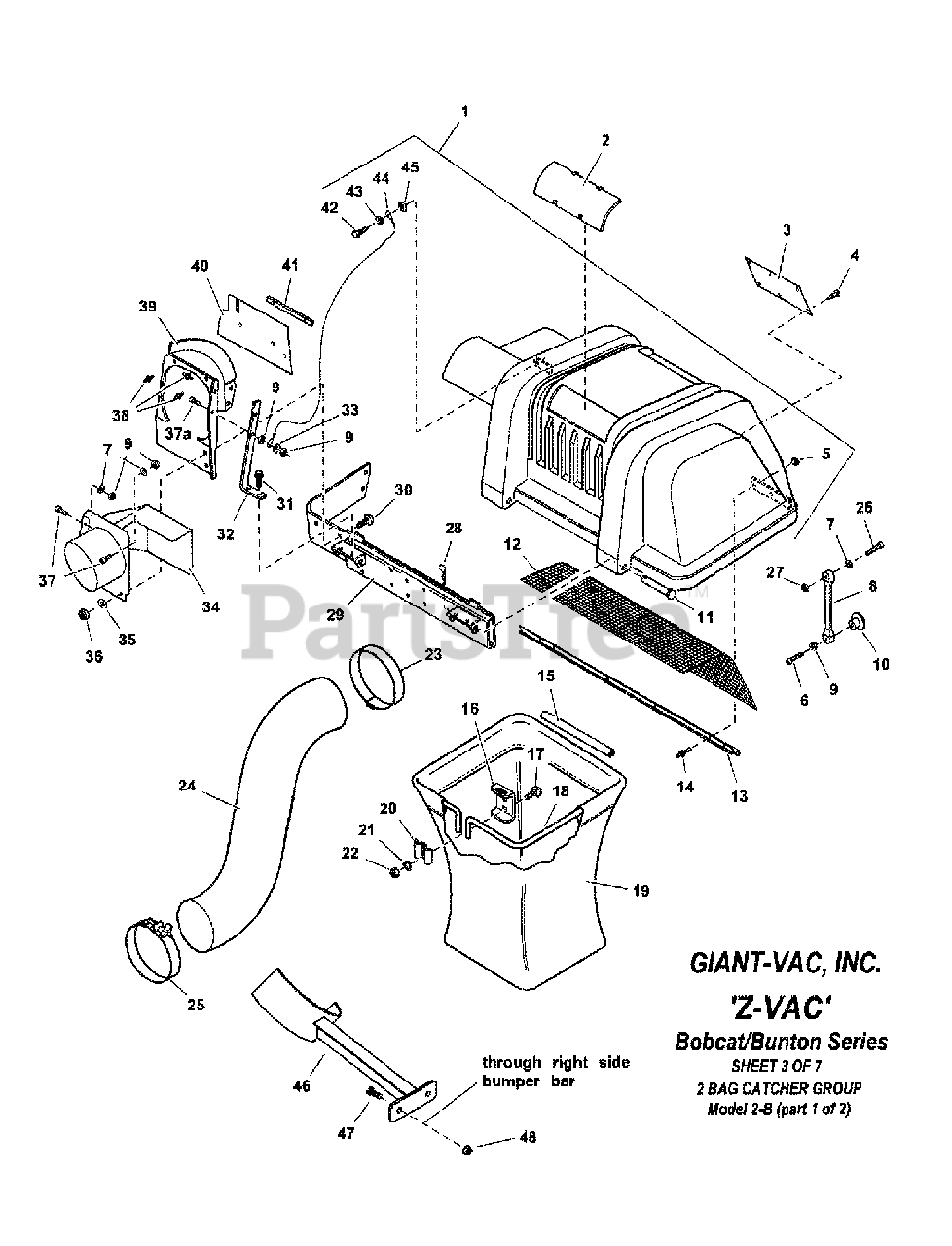

2 BAG CATCHER GROUP Parts Diagram

  • Title

1

Giant-Vac 3046861

ASSEMBLY, 2 Bag Cover and Screen
(Superseded to 1704056SM)

Note: (includes Ref. No. 5, 12, 13, 14, 42, 43, 44, 45)

$975.99

$

Usually ships in 2-12 days

0

2

Giant-Vac 1704180

WINDOW, Cover
(Superseded to 1704180SM)

$

$

Not available

3

Giant-Vac 1704405

* DECAL, Safety, Grass Bag
(Superseded to 1732820SM)

$77.99

$

In Stock, only 1 left!

0

4

Giant-Vac 1667248

CLIP, Canoe
(Superseded to 1667248SM)

$3.49

$

Usually ships in 2-12 days

0

5

Giant-Vac 1910531

WASHER, .188 Rivet
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

6

Giant-Vac 7090922

SCREW, #10-32 x 1-1/2 Hex Washer Head Machine w/Nylon Patch
(Superseded to 7090922YP)

$3.99

$

Usually ships in 2-12 days

0

7

Giant-Vac 7091702

WASHER, .19 x .38 x .06 Flat
(Superseded to 7091702YP)

$3.49

$

Usually ships in 2-12 days

0

8

Giant-Vac 3021670

STRAP, Rubber

$

$

Currently unavailable

9

Giant-Vac 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

10

Giant-Vac 3022838

KNOB

$

$

Currently unavailable

11

Giant-Vac 2960367

PIN, Round Head
(Superseded to 2860367SM)

$9.49

$

Usually ships in 2-12 days

0

12

Giant-Vac 1703700

SCREEN
(Superseded to 1703700SM)

$18.99

$

Usually ships in 2-12 days

0

13

Giant-Vac 1704057

SEAL, Clip
(Superseded to 1704057SM)

$51.99

$

In Stock, only 1 left!

0

14

Giant-Vac 7091578

POP RIVET, 3/16 x .265 Alum.

$2.99

$

In Stock, only 4 left!

0

15

Giant-Vac 1675707

TUBE CLIP, Grass Bag
(Superseded to 1675707SM)

$6.49

$

In Stock, only 3 left!

0

16

Giant-Vac 1703807

HANGER, Grass Bag
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 1 left!

0

17

Giant-Vac 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR5
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

18

Giant-Vac 1703855

HOOP, Grass Bag
(Superseded to 1703855ASM)

$139.99

$

Usually ships in 2-12 days

0

19

Giant-Vac 3000847

GRASS BAG
(Superseded to 1703764SM)

$96.99

$

In Stock, Qty 12

0

20

Giant-Vac 1672023

CLAMP, Grass Bag
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

21

Giant-Vac 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Giant-Vac 7091511

NUT, 5/16-18 Hex, GR5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

23

Giant-Vac 3022875

HOSE CLAMP, Upper

$

$

Not available

24

Giant-Vac 3022833

HOSE, Snapper Fast Vac
(Superseded to 3022833SM)

$

$

Not available

25

Giant-Vac 3022876

HOSE CLAMP, Lower, Fast Vac

$

$

Not available

26

Giant-Vac 7091757

SCREW, #10-24 x 1-1/4" Hex Head Cap, GR5
(Superseded to 7091757SM)

$3.49

$

In Stock, Qty 8

0

27

Giant-Vac 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

28

Giant-Vac 7013844

HAIR PIN, 2.62 Cotter
(Superseded to 7091596YP)

$4.49

$

Usually ships in 2-12 days

0

29

Giant-Vac 1703822

CROSS ASSEMBLY
(Superseded to 1727129ASM)

$185.99

$

Usually ships in 2-12 days

0

30

Giant-Vac 7090074

BOLT, 1/4-20 x 3/4" Short Neck Carriage
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

31

Giant-Vac 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

32

Giant-Vac 1704507

STRAP, Tube Support
(Superseded to 1704507SM)

$7.99

$

Usually ships in 2-12 days

0

33

Giant-Vac 7091702

WASHER, .191 I.D. Flat
(Superseded to 7091702YP)

$3.49

$

Usually ships in 2-12 days

0

34

Giant-Vac 3046722

WELDMENT, Hose Adapter/Deflector

$

$

Not available

35

Giant-Vac 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

36

Giant-Vac 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

37

Giant-Vac 7090299

SCREW, 10F x 7/8" Pan Head Cross Recess
(Superseded to 7090299YP)

Note: Was 7090883

$4.49

$

Usually ships in 2-12 days

0

37a

Giant-Vac 7090299

SCREW, #10-32 x 1
(Superseded to 7090299YP)

$4.49

$

Usually ships in 2-12 days

0

38

Giant-Vac 7076958

POP RIVET, 3/16"

Note: Was 7091241

$

$

Currently unavailable

39

Giant-Vac 1704075

SUPPORT, Tube
(Superseded to 1704075SM)

$71.99

$

Usually ships in 2-12 days

0

40

Giant-Vac 3046774

SEAL, 2 Bag Catcher

$

$

Currently unavailable

41

Giant-Vac 1704508

BRACKET, Seal
(Superseded to 1704508SM)

$4.49

$

Usually ships in 2-12 days

0

42

Giant-Vac 1960400

SCREW, #10-12 x 5/8" Hex Washer Self-Tap
(Superseded to 1960400SM)

$2.49

$

Usually ships in 2-12 days

0

43

Giant-Vac 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

44

Giant-Vac 1705876

CABLE, Double Loop
(Superseded to 1705876SM)

$4.99

$

Usually ships in 2-12 days

0

45

Giant-Vac 1933886

NUT, Speed
(Superseded to 1933886SM)

$2.49

$

Usually ships in 2-12 days

0

46

Giant-Vac 3027490

WELDMENT, 2 Bag Hose Support

$

$

Not available

47

Giant-Vac 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

48

Giant-Vac 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
