30632 - Toro 32" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive (SN: 410000000 - 999999999) Handle Assembly Parts Diagram

32" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive

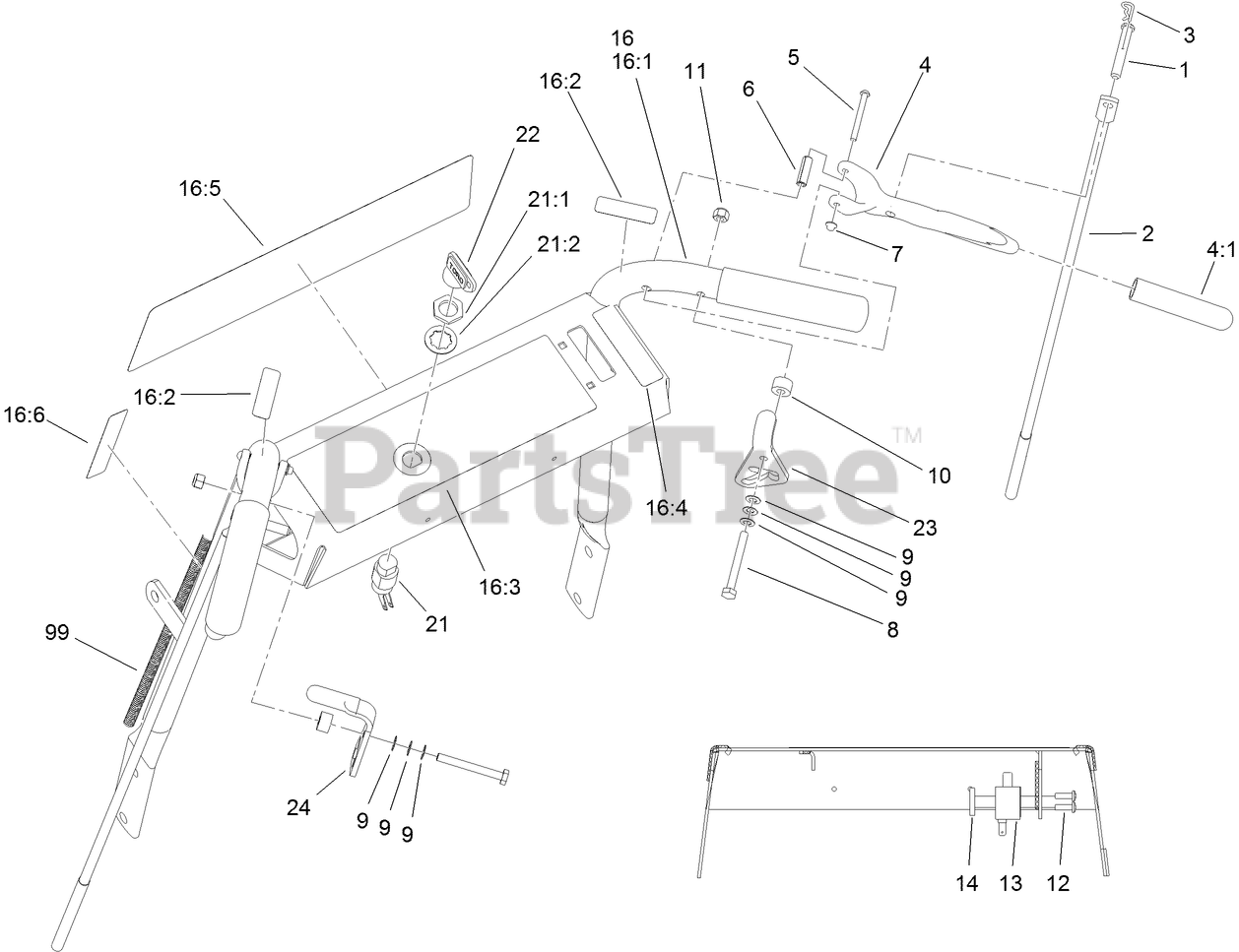

Handle Assembly Parts Diagram

  • Title
1

Toro 1-808286

PIN-CLEVIS

$5.49

$

In Stock, Qty 20+

0

2

Toro 1-323359

LINKAGE-WHEEL, DRIVE

$21.99

$

In Stock, Qty 6

0

3

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

4

Toro 1-302006

DRIVE LEVER ASM

$55.99

$

In Stock, Qty 7

0

4:1

Toro 1-303021

GRIP-LEVER, DRIVE

$1.49

$

In Stock, Qty 17

0

5

Toro 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

0

6

Toro 1-806340

PIN-ROLL

$5.49

$

In Stock, Qty 20+

0

7

Toro 1-803001

NUT-PUSH

$1.49

$

In Stock, Qty 20+

0

8

Toro 321-18

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-323549

SPACER

$13.99

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

14

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

16

Toro 119-3638

HANDLE ASM

$753.99

$

Usually ships in 3-6 days

0

16:1

PISTOL GRIP HANDLE ASM

Note: Not serviced separately

$

$

Not available

16:2

Toro 130-8371

DECAL-LOCK, NEUTRAL

$3.49

$

Usually ships in 3-6 days

0

16:3

Toro 130-8373

DECAL-WARNING

$15.99

$

Usually ships in 3-6 days

0

16:4

Toro 106-2733

DECAL-THROTTLE

$10.99

$

Usually ships in 3-6 days

0

16:5

$27.99

$

Usually ships in 3-6 days

0

16:6

Toro 95-5537

DECAL-ENGAGE, DECK

$10.99

$

Usually ships in 3-6 days

0

21

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, Qty 11

0

21:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

21:2

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

22

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

23

Toro 137-9507

LATCH-RH THUMB,W/GRIP

$27.99

$

In Stock, only 2 left!

0

24

Toro 137-9508

LATCH-LH THUMB,W/GRIP

$27.99

$

In Stock, only 2 left!

0

99

Toro 116-2661

HARNESS-WIRE

$95.99

$

Usually ships in 3-6 days

0
