30632 - Toro 32" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive (SN: 312000001 - 312999999) (2012) FRAME AND TRANSMISSION ASSEMBLY Parts Diagram

32" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive

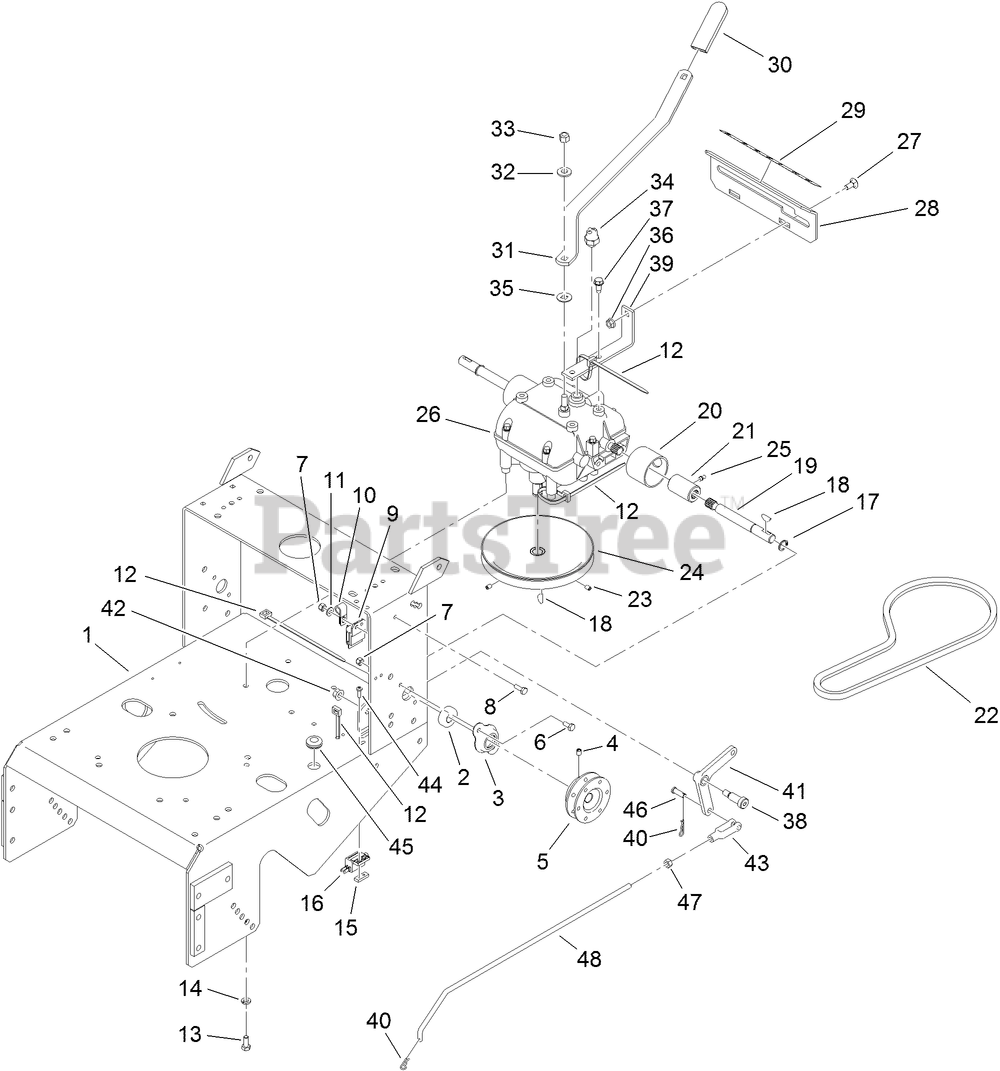

FRAME AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 116-6084-01

FRAME-GEAR

$701.99

$

Usually ships in 3-6 days

0

2

Toro 1-323252

BEARING-SHAFT

$18.99

$

In Stock, Qty 8

0

3

Toro 1-323254

FLANGE-OUTPUT

$10.99

$

In Stock, Qty 11

0

4

Toro 1-803310

SCREW-SET

$2.99

$

In Stock, only 1 left!

0

5

Toro 103-6512

SHEAVE-TRANSMISSION

$119.99

$

Usually ships in 3-6 days

0

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 1-323430

MODULE-INTERLOCK

$140.99

$

In Stock, only 1 left!

0

10

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

14

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

15

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

16

Toro 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

17

Toro 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 19

0

18

Toro 3257-5

KEY-WOODRUFF

$5.99

$

Usually ships in 3-6 days

0

19

Toro 1-323502

SHAFT-TRANSMISSION

$29.99

$

In Stock, only 2 left!

0

20

Toro 51-4220

GUARD-COUPLER

$19.99

$

In Stock, only 1 left!

0

21

Toro 1-323680

COUPLER

$41.99

$

In Stock, only 2 left!

0

22

Toro 1-323630

V-BELT

$34.99

$

In Stock, Qty 16

0

23

Toro 3245-41

SCREW-HSH

$2.99

$

In Stock, only 3 left!

0

24

Toro 1-323278

SHEAVE-TRANSMISSION

$80.99

$

In Stock, only 3 left!

0

25

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

26

Toro 1-323500

TRANSMISSION
(Superseded to 137-4105)

$620.99

$

In Stock, only 1 left!

0

27

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

28

Toro 1-323387-03

PLATE-SHIFT

$67.99

$

In Stock, only 1 left!

0

29

Toro 105-4104

DECAL-SPEED, GROUND

$18.99

$

Usually ships in 3-6 days

0

30

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

31

Toro 98-3274-03

LEVER-SHIFT

$53.99

$

In Stock, only 1 left!

0

32

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

33

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

34

Toro 1-303282

Switch-Start, Neutral

$50.99

$

In Stock, Qty 15

0

35

Toro 1-323379

WASHER

$3.49

$

In Stock, only 2 left!

0

36

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Toro 9264964

SCREW-HWH, THREAD CUT

$1.49

$

Usually ships in 3-6 days

0

38

Toro 1-603403

BOLT-SHOULDER

$17.99

$

In Stock, only 2 left!

0

39

Toro 1-323389-03

BRACKET-PLATE, SHIFT

$30.99

$

In Stock, only 2 left!

0

40

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

41

Toro 1-303186

BELLCRANK

$58.99

$

In Stock, only 1 left!

0

42

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

43

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

44

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

45

Toro 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

46

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

47

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

48

Toro 1-323303

ARM-ASSIST, LINKAGE

$25.99

$

In Stock, only 2 left!

0
