30620 (220) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) SEAT ASSEMBLY Parts Diagram

ProLine Rear-Engine Riding Mower

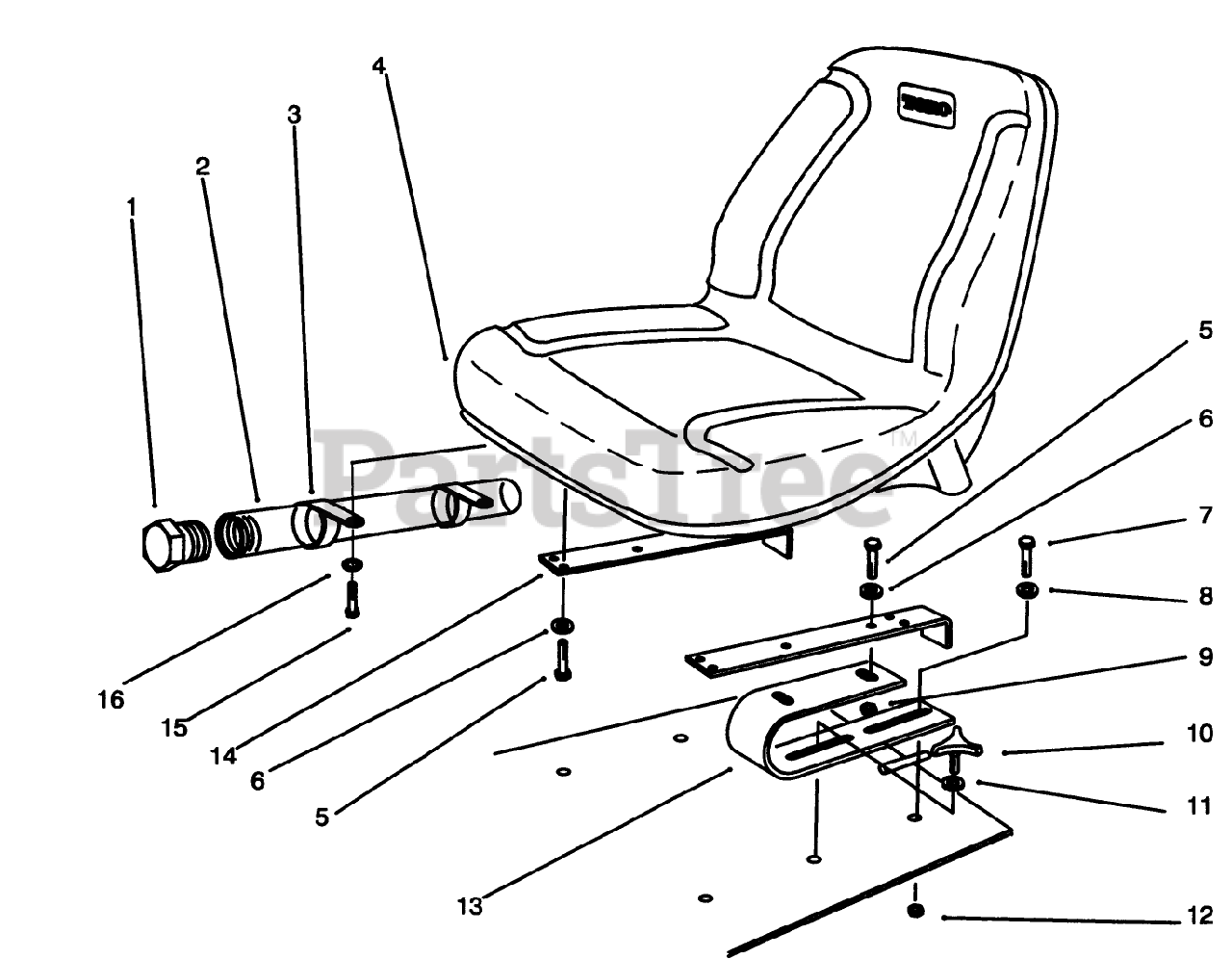

SEAT ASSEMBLY Parts Diagram

  • Title

1

Cap-Tube

$

$

Not available

2

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

3

Toro 2412-123

TIE ROD
(Superseded to 105-7815)

$

$

Not available

4

Toro 66-5400

Seat
(Superseded to 104-4620)

$

$

Not available

5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 27-5240

BOLT-SHOULDER

$23.99

$

Usually ships in 3-6 days

0

8

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

10

Toro 27-4570

KNOB-SEAT

$30.99

$

Usually ships in 3-6 days

0

11

Toro 36-8020

WASHER

$

$

Not available

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

13

Toro 46-9110

Spring-Seat
(Superseded to 46-9110-03)

$162.99

$

Usually ships in 3-6 days

0

14

Toro 46-9120

Mount-Seat
(Superseded to 46-9120-03)

$

$

Not available

Toro 92-1585

Seat Assembly (Incl. Ref. #1-14)

Note: Not illustrated

$

$

Not available
