30620 (220) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) INSTRUMENT PANEL & STEERING POST ASSEMBLY Parts Diagram

ProLine Rear-Engine Riding Mower

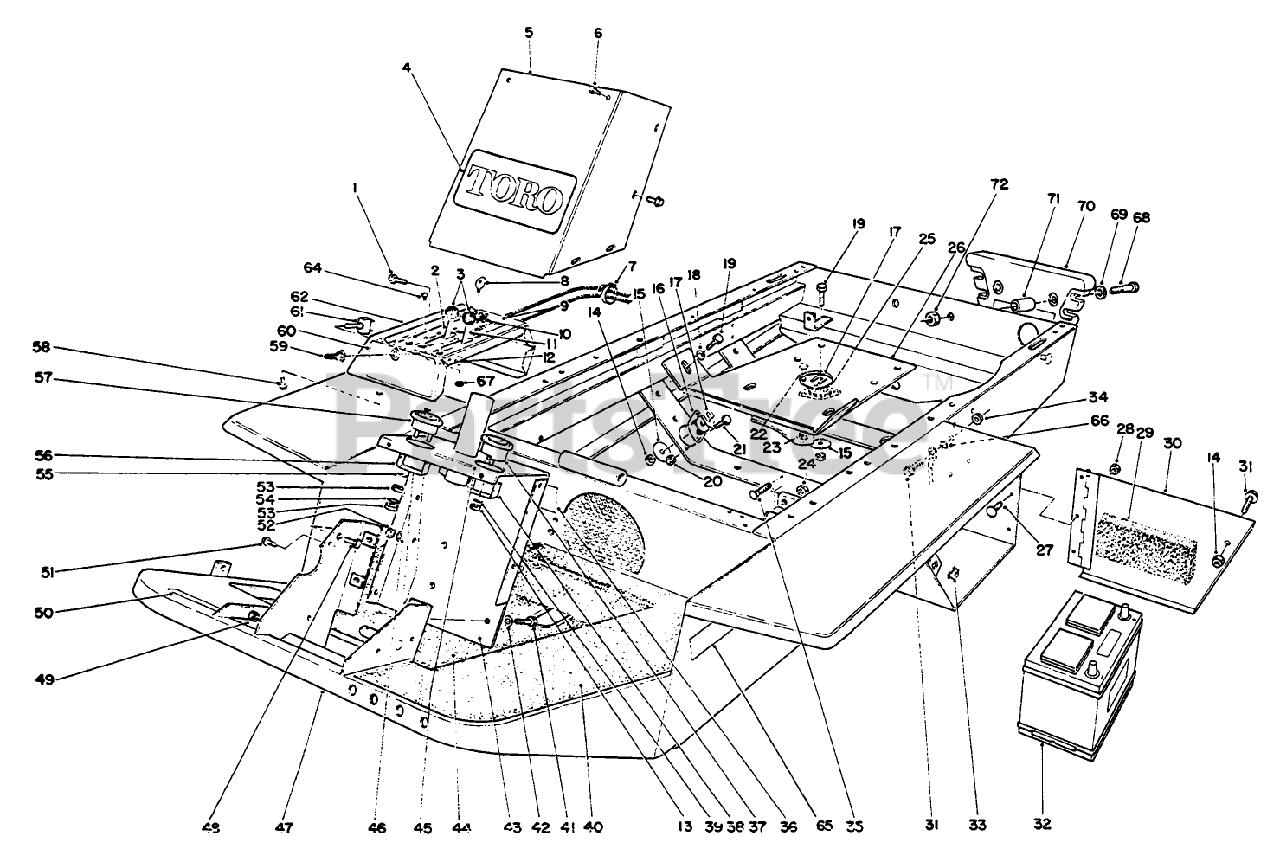

INSTRUMENT PANEL & STEERING POST ASSEMBLY Parts Diagram

  • Title

1

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

2

Toro 44-9300

CHOKE CONTROL

$

$

Not available

3

Toro 233-35

KNOB

$9.99

$

Usually ships in 3-6 days

0

4

Toro 62-5550

DECAL

$10.99

$

In Stock, only 4 left!

0

5

Toro 41-8900

Tower Cover
(Superseded to 41-8900-01)

$224.99

$

Usually ships in 3-6 days

0

6

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

8

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

9

Toro 68-7350

DECAL - INST. PANEL

$

$

Not available

10

Toro 27-2360

SWITCH

$49.99

$

In Stock, only 1 left!

0

11

Toro 44-9250

THROTTLE CONTROL

$97.99

$

Usually ships in 3-6 days

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 63-7400

WASHER-REBOUND

$3.49

$

In Stock, Qty 20+

0

16

Toro 44-9390

ENGINE RUBBER MT

$

$

Not available

17

Toro 42-6080

SHIM-AXLE

$38.99

$

Usually ships in 3-6 days

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

23

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

25

Toro 18-8000

RUBBER MOUNT

$

$

Not available

26

Toro 44-9320

Base-Engine
(Superseded to 44-9320-03)

$

$

Not available

27

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 44-9460

BATT BOX FOAM

$

$

Not available

30

Toro 44-8920

Battery Cover
(Superseded to 44-8920-01)

$

$

Not available

31

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

32

Assembly-Battery

Note: Obtain locally. Group Size 26

$

$

Not available

33

Toro 3290-433

RETAINER NUT

$

$

Not available

34

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

35

Toro 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

36

Toro 53-4430

DECAL-OIL

$10.99

$

Usually ships in 3-6 days

0

37

Toro 12-9990

HOUR METER
(Superseded to 66-2950)

$

$

Not available

38

Toro 218-515

BRACKET F/W

$

$

Not available

39

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

40

Toro 27-3250

NON SKID (TUNNEL)

$

$

Not available

41

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

42

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

43

Toro 42-2580

Steering Post
(Superseded to 42-2580-01)

$

$

Not available

44

Toro 27-3260

NON-SKID-FLOOR

$

$

Not available

45

Toro 41-8910

INSTRUCTION DECAL

$

$

Not available

46

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

47

Toro 86-7290

Frame Assembly
(Superseded to 86-7290-01)

$

$

Not available

48

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

49

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

50

Toro 27-7320

DECAL-PEDAL, TRACTION
(Superseded to 93-7836)

$

$

Not available

51

Toro 32104-60

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

52

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

53

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

54

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

55

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

56

Toro 39-9600

MTG CLAMP F/W GUAGE

$

$

Not available

57

Toro 33-0990

AMMETER GAUGE ASSY

$

$

Not available

58

Toro 32104-116

SCREW-THD FRM,HWH

$0.99

$

Usually ships in 3-6 days

0

59

Toro 218-473

BOOT-SWITCH

$21.99

$

Usually ships in 3-6 days

0

60

Toro 46-3460

BY-PASS DECAL

$

$

Not available

61

Toro 6-1659

Switch-Toggle (Incl. Ref. #58)

$83.99

$

Usually ships in 3-6 days

0

62

Toro 46-3350

Instrument Panel
(Superseded to 46-3350-01)

$150.99

$

Usually ships in 3-6 days

0

64

Toro 3251-3

10-24 X 5/8 PAN HD MS

$0.99

$

In Stock, only 2 left!

0

65

Toro 75-0810

CAUTION DECAL

$

$

Not available

66

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

67

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

68

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

69

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

70

Toro 24-5790

WEIGHT-REAR
(Superseded to 24-5790-01)

$514.99

$

Usually ships in 3-6 days

0

72

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0
