30620 (220) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) DIFFERENTIAL ASSEMBLY Parts Diagram

ProLine Rear-Engine Riding Mower

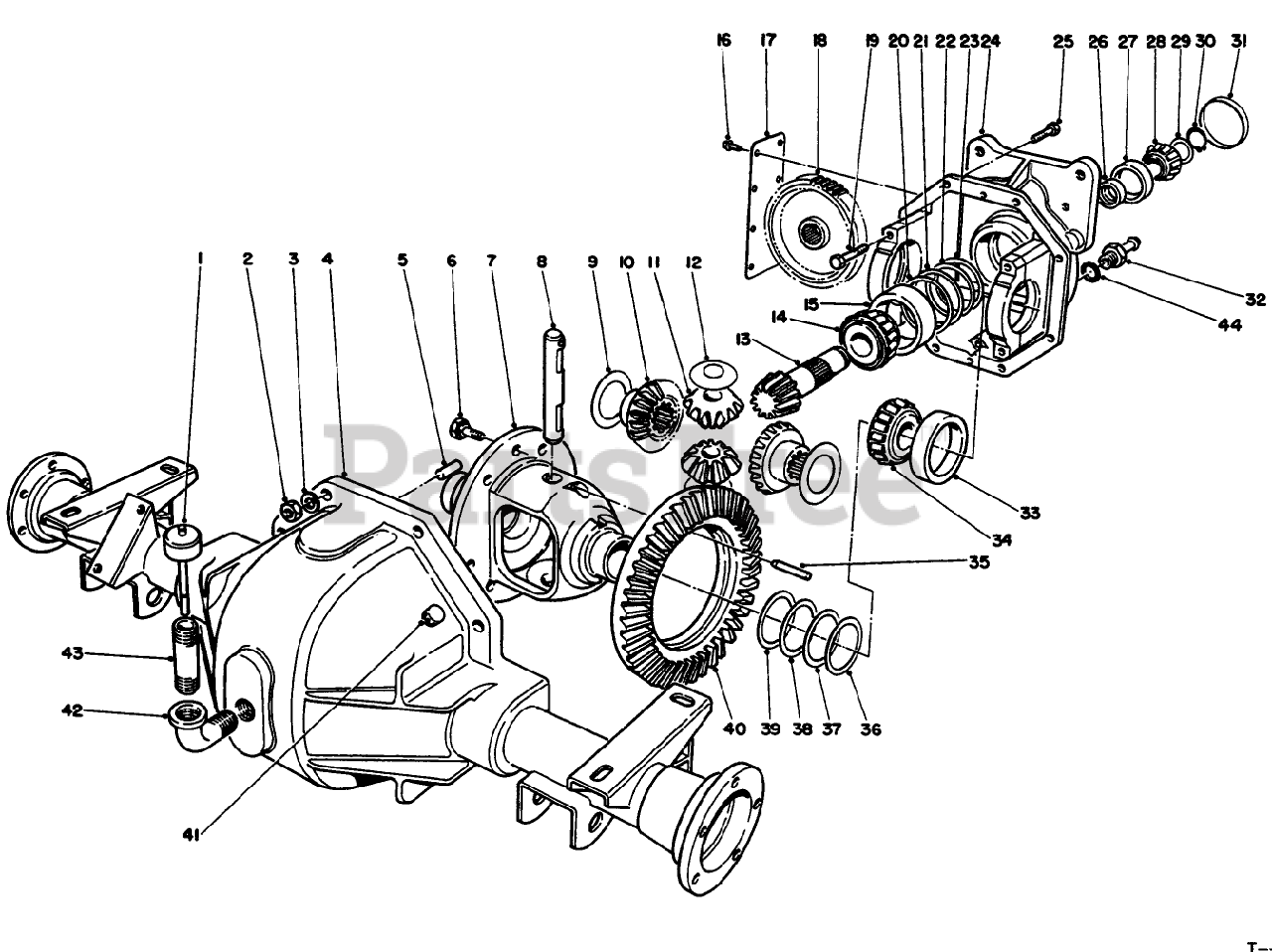

DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title

1

Toro 27-3710

DIPSTICK

$

$

Not available

2

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

3

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

4

Toro 43-6850

HSG TUBE & PAD LWR B

$2074.99

$

Usually ships in 3-6 days

0

5

Toro 21-8270

PIN-DOWEL

$9.49

$

Usually ships in 3-6 days

0

6

Toro 21-7770

SCREW-GEAR, DRIVE

$2.99

$

Usually ships in 3-6 days

0

7

Toro 21-7670

CASE-DIFFERENTIAL

$822.99

$

Usually ships in 3-6 days

0

8

Toro 21-7700

SHAFT-MATE, PINION

$64.99

$

Usually ships in 3-6 days

0

9

Toro 21-7720

WASHER-THRUST

$4.99

$

Usually ships in 3-6 days

0

10

Toro 24-8790

GEAR-DIFFERENTIAL
(Superseded to 110-4143)

$1000.99

$

Usually ships in 3-6 days

0

11

Toro 21-7690

PINION-DIFFERENTIAL
(Superseded to 110-4143)

$1000.99

$

Usually ships in 3-6 days

0

12

Toro 21-7730

WASHER-THRUST, PINION

$3.99

$

Usually ships in 3-6 days

0

13

Pinion-Drive (Incl. Ref. #40)

$

$

Not available

14

Toro 43-6760

BEARING-ROLLER, CONE TAPER

$161.99

$

Usually ships in 3-6 days

0

15

Toro 43-6750

BEARING-TAPER, CUP

$83.99

$

Usually ships in 3-6 days

0

16

Toro 12-5450

SCREW

$10.99

$

In Stock, only 2 left!

0

17

Toro 21-7830

COVER-GEAR

$32.99

$

Usually ships in 3-6 days

0

18

Toro 86-7230

GEAR-INPUT, TRANSMISSION

$868.99

$

Usually ships in 3-6 days

0

19

Toro 324-23

SCREW-HH
(Superseded to 92-1773)

$4.49

$

Usually ships in 3-6 days

0

20

Toro 43-6710

SHIM-PINION (.003)

$3.49

$

Usually ships in 3-6 days

0

21

Toro 43-6711

SHIM-PINION (.005)

$5.49

$

Usually ships in 3-6 days

0

22

Toro 43-6712

SHIM-PINION (.010)

$4.49

$

Usually ships in 3-6 days

0

23

Toro 43-6713

SHIM-PINION (.030)

$9.99

$

Usually ships in 3-6 days

0

24

Toro 86-7930

Upper Housing Assembly (Incl. Ref. #19)

$2015.99

$

Usually ships in 3-6 days

0

25

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

26

Toro 21-8020

SPACER-BEARING

$39.99

$

Usually ships in 3-6 days

0

27

Toro 254-90

BEARING-CUP

$13.99

$

Usually ships in 3-6 days

0

28

Toro 254-91

CONE-BEARING

$21.99

$

Usually ships in 3-6 days

0

29

Toro 46-2210

SHIM-BEARING, FRONT

$

$

Not available

Toro 46-2211

SHIM-FRONT BEARING, .033

Note: Not illustrated

$

$

Not available

Toro 46-2212

SHIM-FRONT BEARING, .035

Note: Not illustrated

$

$

Not available

Toro 46-2213

SHIM-FRONT BEARING, .037

Note: Not illustrated

$

$

Not available

Toro 46-2214

SHIM-FRONT BEARING, .039

Note: Not illustrated

$

$

Not available

Toro 46-2215

SHIM-FRONT BEARING, .041

Note: Not illustrated

$

$

Not available

Toro 46-2216

SHIM-FRONT BEARING, .043

Note: Not illustrated

$

$

Not available

Toro 46-2220

SHIM-FRONT BEARING, .045

Note: Not illustrated

$

$

Not available

Toro 46-2221

SHIM-FRONT BEARING, .047

Note: Not illustrated

$

$

Not available

Toro 46-2222

SHIM-FRONT BEARING, .049

Note: Not illustrated

$

$

Not available

Toro 46-2223

SHIM-FRONT BEARING, .051

Note: Not illustrated

$

$

Not available

29

Toro 46-2224

SHIM-FRONT BEARING, .053

$

$

Not available

Toro 46-2225

SHIM-FRONT BEARING, .055

Note: Not illustrated

$

$

Not available

Toro 46-2226

SHIM-FRONT BEARING, .057

Note: Not illustrated

$

$

Not available

Toro 46-2410

Shim-Front Pinion .062

Note: Not illustrated

$

$

Not available

Toro 46-2411

Shim-Front Pinion .064

Note: Not illustrated

$

$

Not available

Toro 46-2412

Shim-Front Pinion .066

Note: Not illustrated

$

$

Not available

Toro 46-2413

Shim-Front Pinion .068

Note: Not illustrated

$

$

Not available

Toro 46-2414

Shim-Front Pinion .070

Note: Not illustrated

$

$

Not available

Toro 46-2415

Shim-Front Pinion .072

Note: Not illustrated

$

$

Not available

Toro 46-2416

Shim-Front Pinion .074

Note: Not illustrated

$

$

Not available

Toro 46-2420

Shim-Front Pinion .076

Note: Not illustrated

$

$

Not available

Toro 46-2421

Shim-Front Pinion .078

Note: Not illustrated

$

$

Not available

Toro 46-2422

Shim-Front Pinion .080

Note: Not illustrated

$

$

Not available

29

Toro 46-2423

Shim-Front Pinion .082

$

$

Not available

Toro 46-2424

Shim-Front Pinion .084

Note: Not illustrated

$

$

Not available

Toro 46-2425

Shim-Front Pinion .086

Note: Not illustrated

$

$

Not available

Toro 46-2426

Shim-Front Pinion .088

Note: Not illustrated

$

$

Not available

30

Toro 43-6550

RING-SNAP

$1.49

$

Usually ships in 3-6 days

0

31

Toro 21-7850

PLUG-CUP

$27.99

$

Usually ships in 3-6 days

0

32

Toro 354-18

Fitting-Hose Barb (Incl. Ref. #44)

$

$

Not available

33

Toro 254-66

CUP-BEARING, ROLLER

$17.99

$

Usually ships in 3-6 days

0

34

Toro 254-65

BEARING-ROLLER, CONE

$74.99

$

Usually ships in 3-6 days

0

35

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 20+

0

36

Toro 21-8090

SHIM-BEARING, DIFFERENTIAL (.003)

$1.99

$

Usually ships in 3-6 days

0

37

Toro 21-8100

SHIM-BEARING, DIFFERENTIAL (.005)

$4.99

$

Usually ships in 3-6 days

0

38

Toro 21-8110

SHIM-BEARING, DIFFERENTIAL (.010)

$5.49

$

Usually ships in 3-6 days

0

39

Toro 21-8120

SHIM-BEARING, DIFFERENTIAL (.030)

$7.99

$

Usually ships in 3-6 days

0

40

Gear-Ring

$

$

Not available

41

Toro 72-9420

VENT

$9.49

$

Usually ships in 3-6 days

0

42

Toro 2811-9

FITTING-ELBOW-90

$18.99

$

Usually ships in 3-6 days

0

43

Toro 289-38

PIPE NIPPLE

$

$

Not available

44

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

Toro 43-6510

Gear & Pinion Assembly (Incl. Ref. #13 & 40)
(Superseded to 92-4848)

Note: Not illustrated

$1936.99

$

Usually ships in 3-6 days

0
