30620 (220) - Toro ProLine Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) TRACTION PEDAL ASSEMBLY Parts Diagram

ProLine Rear-Engine Riding Mower

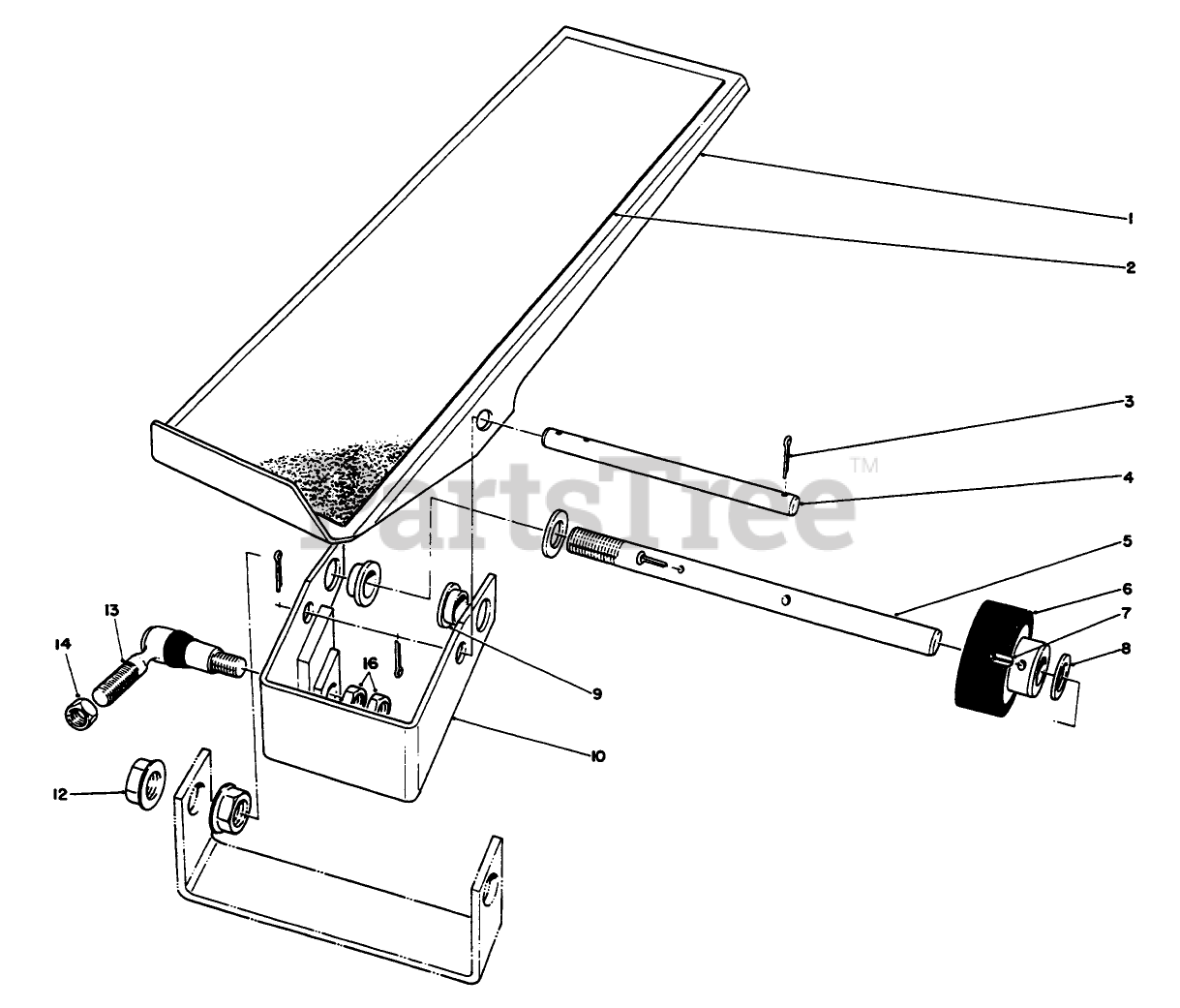

TRACTION PEDAL ASSEMBLY Parts Diagram

  • Title

1

Toro 29-5670

Pedal-Traction
(Superseded to 29-5670-01)

$

$

Not available

2

Toro 28-5130

TRACTION PEDAL PAD

$

$

Not available

3

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

4

Toro 29-5630

PEDAL PIVOT PIN

$

$

Not available

5

Toro 29-5640

Shaft-Traction Pedal
(Superseded to 70-9830)

$

$

Not available

6

Toro 28-5220

FRICTION WHEEL ASM

$116.99

$

Usually ships in 3-6 days

0

7

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

8

Toro 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

9

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

10

Toro 29-5600

Pivot Bracket Assembly (Incl. Ref. #9)
(Superseded to 29-5600-01)

$

$

Not available

11

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

12

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

13

Toro 21-0141

RH BALL JOINT ASM

$

$

Not available

14

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 19

0

16

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0
