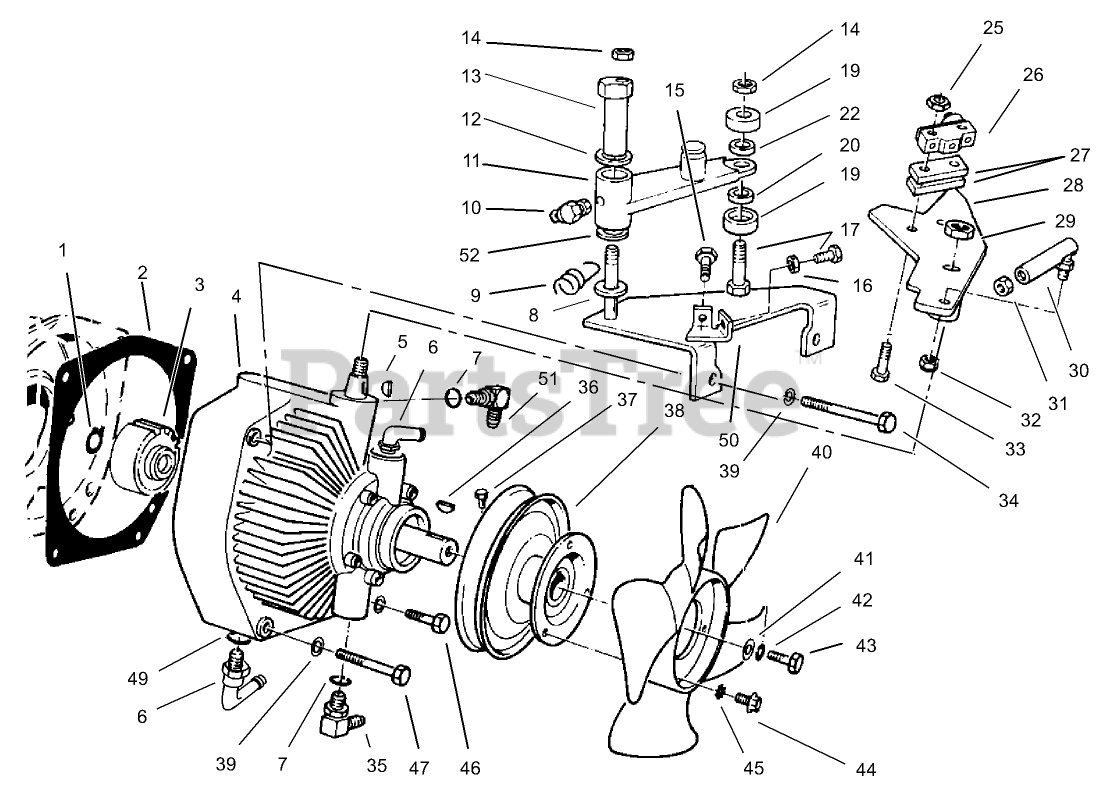

30612 TE (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 230000001 - 230999999) (2003) TRANSMISSION ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

2

Toro 55-4320

TRANS GASKET
(Superseded to 108319)

$8.99

$

In Stock, only 2 left!

0

3

Toro 54-0320

GEAR-SPUR

$

$

Not available

4

Toro 98-0777

TRANSMISSION - HYDRO

$

$

Not available

5

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

6

Toro 94-7691

ADAPTER

$

$

Not available

7

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

8

Toro 3256-68

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

9

Toro 76-9430

SPRING-EXTENSION
(Superseded to 76-9430-03)

$31.99

$

Usually ships in 3-6 days

0

10

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0

11

Toro 92-6289

Swing Arm Assembly (Incl. Ref. #10 & 52)

$

$

Not available

12

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

13

Toro 76-8640

STUD-TRACTION

$27.99

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

16

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

17

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 251-307

BEARING-BALL
(Superseded to 251-259)

$16.99

$

In Stock, only 4 left!

0

20

Toro 92-6290

SPACER

$

$

Not available

22

Toro 75-5470

SPACER-BEARING

$3.99

$

Usually ships in 3-6 days

0

25

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

26

Toro 29-6163

SWITCH-MICRO

$104.99

$

Usually ships in 3-6 days

0

27

Toro 75-4130

PLATE-SWITCH

$17.99

$

Usually ships in 3-6 days

0

28

Toro 92-6269

Lever-Traction
(Superseded to 92-6269-03)

$

$

Not available

29

Toro 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

0

30

Toro 2411-34

JOINT-BALL

$30.99

$

Usually ships in 3-6 days

0

31

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

32

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

33

Toro 3250-46

SCREW-PPH

$20.99

$

Usually ships in 3-6 days

0

34

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

35

Toro 353-511

Fitting-Hydraulic, 905 (Incl. Ref. #7)

$36.99

$

Usually ships in 3-6 days

0

36

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 7

0

37

Toro 3241-2

SCREW-SQH
(Superseded to 3241-7)

$3.99

$

In Stock, only 2 left!

0

38

Toro 54-0930

TRANS PULLEY

$

$

Not available

39

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

40

Toro 54-0240

FAN 8"

$

$

Not available

41

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, only 1 left!

0

42

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

43

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

44

Toro 32144-19

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

45

Toro 3255-5

WASHER-LOCK/EXT

$0.99

$

Usually ships in 3-6 days

0

46

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

47

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

49

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

50

Toro 92-6270

Plate-Traction
(Superseded to 92-6270-03)

$196.99

$

Usually ships in 3-6 days

0

51

Toro 340-98

FITTING-ELBOW-90 DEG

$32.99

$

In Stock, only 2 left!

0

52

Toro 256-113

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0
