30612 TE (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 230000001 - 230999999) (2003) FRAME AND STEERING ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

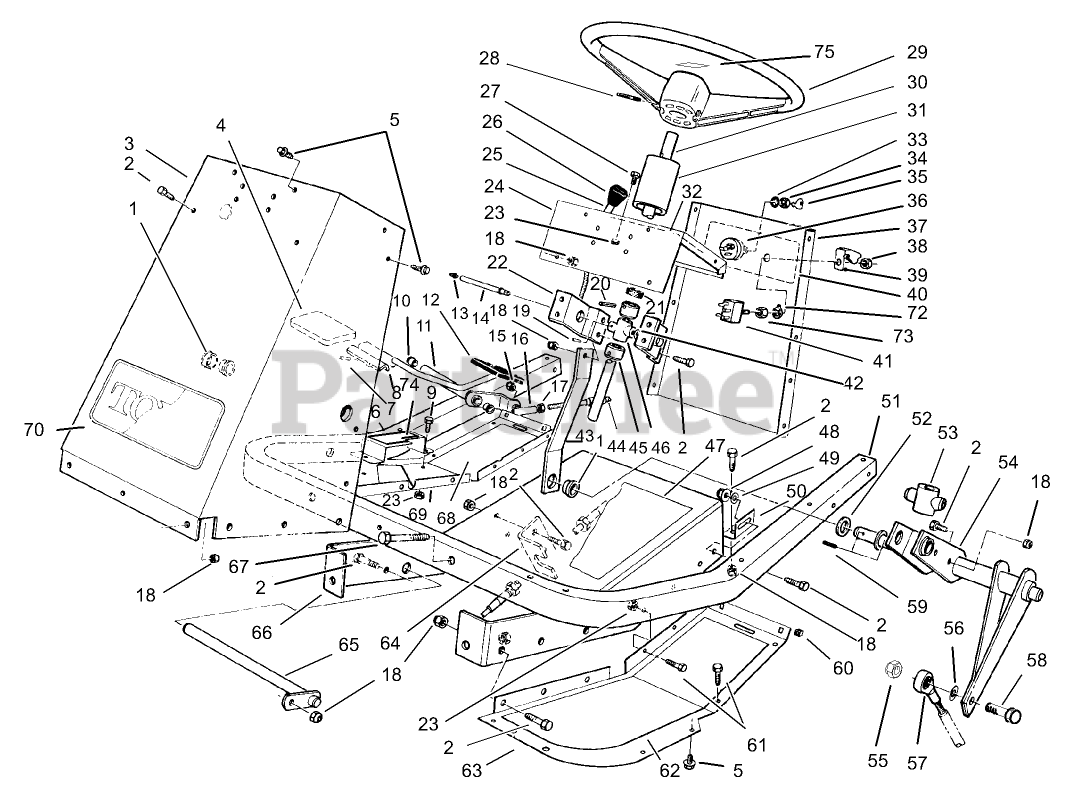

FRAME AND STEERING ASSEMBLY Parts Diagram

  • Title

1

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 54-1900

Tower-Front
(Superseded to 54-1900-01)

$

$

Not available

4

Toro 49-6470

FORWARD PEDAL PAD

$

$

Not available

5

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

6

Toro 80-4930

Footrest-Pedal
(Superseded to 80-4930-01)

$

$

Not available

7

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

8

Toro 80-4920

ACCELERATOR PEDAL

$

$

Not available

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

11

Toro 74-0110

Pedal-Traction (Incl. Ref. #10)
(Superseded to 74-0110-01)

$

$

Not available

12

Toro 49-6430

REVERSE PAD

$69.99

$

Usually ships in 3-6 days

0

13

Toro 302-22

FITTING-GREASE

$13.99

$

Usually ships in 3-6 days

0

14

Toro 59-1610

TUBE ZERK

$

$

Not available

15

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

16

Toro 2411-34

JOINT-BALL

$30.99

$

Usually ships in 3-6 days

0

17

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 32121-20

3/32 X 9/16 ROLL PIN

$0.99

$

Usually ships in 3-6 days

0

20

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

21

Toro 21-9260

COVER-DUST

$8.99

$

Usually ships in 3-6 days

0

22

Toro 54-1950

BRG SUPT BRKT

$

$

Not available

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

24

Toro 54-1000

Tower-Top
(Superseded to 54-1000-01)

$

$

Not available

25

Toro 54-1451

CONTROL-CHOKE,THROTTLE

$115.99

$

Usually ships in 3-6 days

0

26

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

27

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

28

Toro 32121-10

PIN-ROLL

$8.99

$

Usually ships in 3-6 days

0

29

Toro 98-1467

STEERING WHEEL ASM

$274.99

$

Usually ships in 3-6 days

0

30

Toro 54-1420

Shaft-Steering
(Superseded to 62-6780)

$453.99

$

Usually ships in 3-6 days

0

31

Toro 47-1980

STRG. SHAFT COVER

$49.99

$

Usually ships in 3-6 days

0

32

Toro 93-7281

DECAL - THROTTLE, CHOKE

$62.99

$

Usually ships in 3-6 days

0

33

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

34

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

35

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

36

Toro 88-9830

Switch-Ignition (Incl. Ref. #33-34)
(Superseded to 104-2541)

$39.99

$

In Stock, Qty 6

0

37

Toro 92-6266

Panel-Tower Rear
(Superseded to 92-6266-01)

$

$

Not available

38

Toro 113179

DISC

$

$

Not available

39

Toro 113050

COVER-PTO SWITCH

$

$

Not available

40

Toro 93-7284

DECAL - SWITCH

$

$

Not available

41

Toro 116716

Switch-Clutch andBrake (Incl. Ref. # 38, 72 & 73)

$98.99

$

In Stock, only 1 left!

0

42

Toro 3290-440

WASHER-BELLEVILLE

$9.99

$

Usually ships in 3-6 days

0

43

Toro 54-1340

Link-Steering
(Superseded to 54-1340-03)

$62.99

$

Usually ships in 3-6 days

0

44

Toro 54-2640

TRACT CONT.CABLE

$

$

Not available

45

Toro 28-3940

STRG SHAFT COLLAR

$

$

Not available

46

Toro 60-9050

BRG STEERING SHAFT

$

$

Not available

47

Toro 54-0880

TUNNEL DECAL

$

$

Not available

48

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

49

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

50

Toro 54-1440

TUNNEL BRKT

$18.99

$

Usually ships in 3-6 days

0

51

Toro 60-9140

Frame-Footrest
(Superseded to 60-9140-01)

$

$

Not available

52

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

53

Toro 54-2630

STEER.SHAFT FOLLOWER

$

$

Not available

54

Toro 54-2040

Follower Lever
(Superseded to 54-2040-03)

$

$

Not available

55

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

56

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Toro 251-304

BALL JOINT LH

$89.99

$

Usually ships in 3-6 days

0

58

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

59

Toro 32121-77

PIN-ROLL

$1.49

$

Usually ships in 3-6 days

0

60

Toro 32115-5

NUT-RETAINED

$7.49

$

Usually ships in 3-6 days

0

61

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

62

Toro 54-2260

FOOT REST PAD LH

$

$

Not available

63

Toro 54-1470

Footrest-L.H.
(Superseded to 54-1470-01)

$

$

Not available

64

Toro 54-1770

TRACT CABLE BRKT

$

$

Not available

65

Toro 59-1550

PEDAL.SHAFT WA

$

$

Not available

66

Toro 60-9150

Tunnel
(Superseded to 60-9150-01)

$

$

Not available

67

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

68

Toro 54-2270

FOOT REST PAD RH

$

$

Not available

69

Toro 80-4910

Footrest-R.H.
(Superseded to 80-4910-01)

$

$

Not available

70

Toro 62-7400

DECAL

$26.99

$

Usually ships in 3-6 days

0

72

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

73

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

74

Toro 82-4720

FOOTREST PAD

$

$

Not available

75

Toro 98-1459

DECAL

$4.99

$

Usually ships in 3-6 days

0
