30612 TE (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) THROTTLE LINKAGE AND GOVERNOR CONTROLS (CH20QS PS64556 KOHLER) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

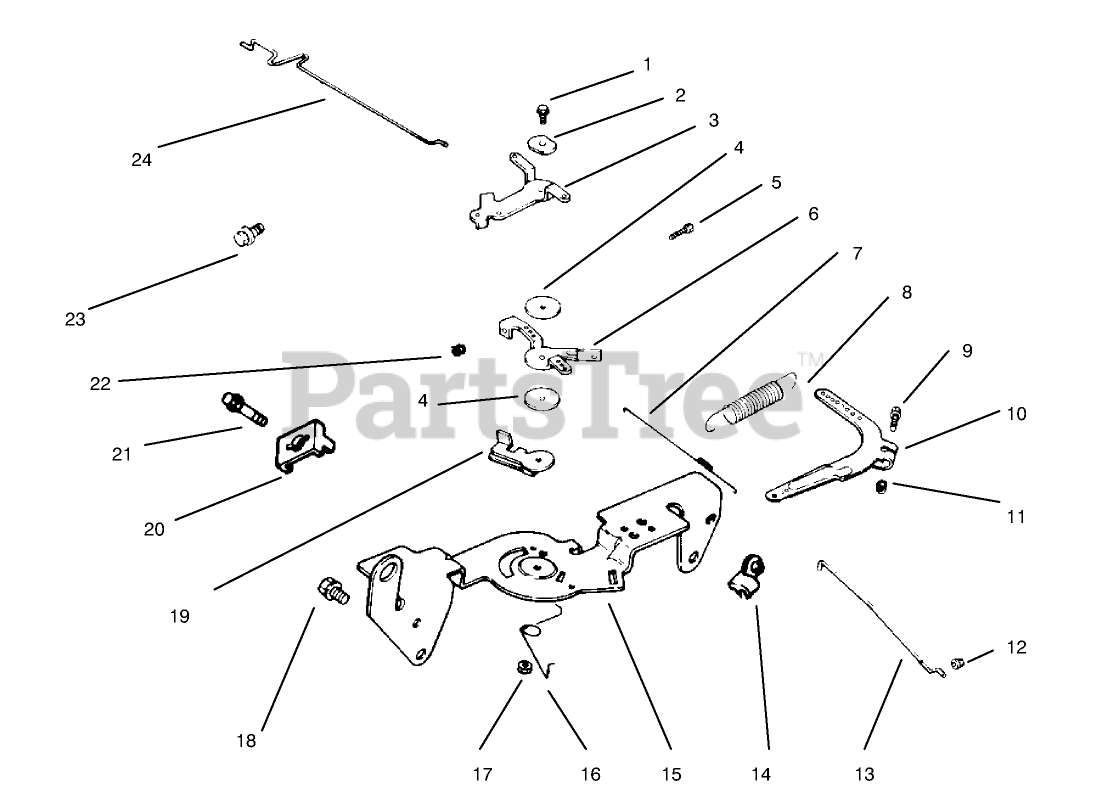

THROTTLE LINKAGE AND GOVERNOR CONTROLS (CH20QS PS64556 KOHLER) Parts Diagram

  • Title

1

Toro SM-0545020-S

Screw

$

$

Currently unavailable

2

Kohler 41 468 03-S

WASHER-SPRING (1/4)

$3.49

$

In Stock, only 2 left!

0

3

Kohler 24 090 05-S

LEVER-CHOKE

$5.49

$

In Stock, only 2 left!

0

4

Kohler 24 468 01-S

WASHER-FLAT (5.5MM)

$2.49

$

In Stock, only 2 left!

0

5

Toro M-0401025-S

Screw

$

$

Currently unavailable

7

Kohler 24 089 01-S

SPRING-LINKAGE

$6.49

$

In Stock, only 4 left!

0

6

Kohler 24 090 03-S

Lever-Control, Throttle

$13.99

$

In Stock, only 1 left!

0

8

Kohler 24 089 18-S

SPRING-GOVERNOR

$7.49

$

In Stock, Qty 10

0

9

Toro SM-0642025-S

Screw

$

$

Currently unavailable

10

Kohler 24 090 14-S

Lever-Governor

$

$

Not available

11

Toro SM-0641060-S

Nut

$

$

Currently unavailable

12

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

$5.99

$

In Stock, Qty 19

0

13

Kohler 24 079 01-S

Linkage-Throttle

$3.99

$

In Stock, Qty 7

0

14

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

$5.99

$

In Stock, Qty 13

0

15

Toro 24 126 13-S

Bracket-Control

$

$

Currently unavailable

17

Toro M-0547050-S

Nut

$

$

Currently unavailable

16

Kohler 24 089 03-S

SPRING-RETURN, CHOKE

$2.99

$

In Stock, Qty 12

0

18

Toro SM-0645016-S

Screw

$

$

Currently unavailable

19

Kohler 24 090 07-S

Lever-Actuator, Throttle
(Superseded to 24 090 65-S)

$5.49

$

In Stock, only 1 left!

0

20

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

21

Toro SM-0545016-S

Screw

$

$

Currently unavailable

22

Toro M-0446030-S

Nut

$

$

Currently unavailable

23

Toro SM-0545016-S

Screw

$

$

Currently unavailable

24

Kohler 24 079 02-S

Linkage-Choke
(Superseded to 24 079 66-S)

$2.49

$

In Stock, Qty 5

0
