30612 TE (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) ELECTRIC SCHEMATIC Parts Diagram

Groundsmaster Rear-Engine Riding Mower

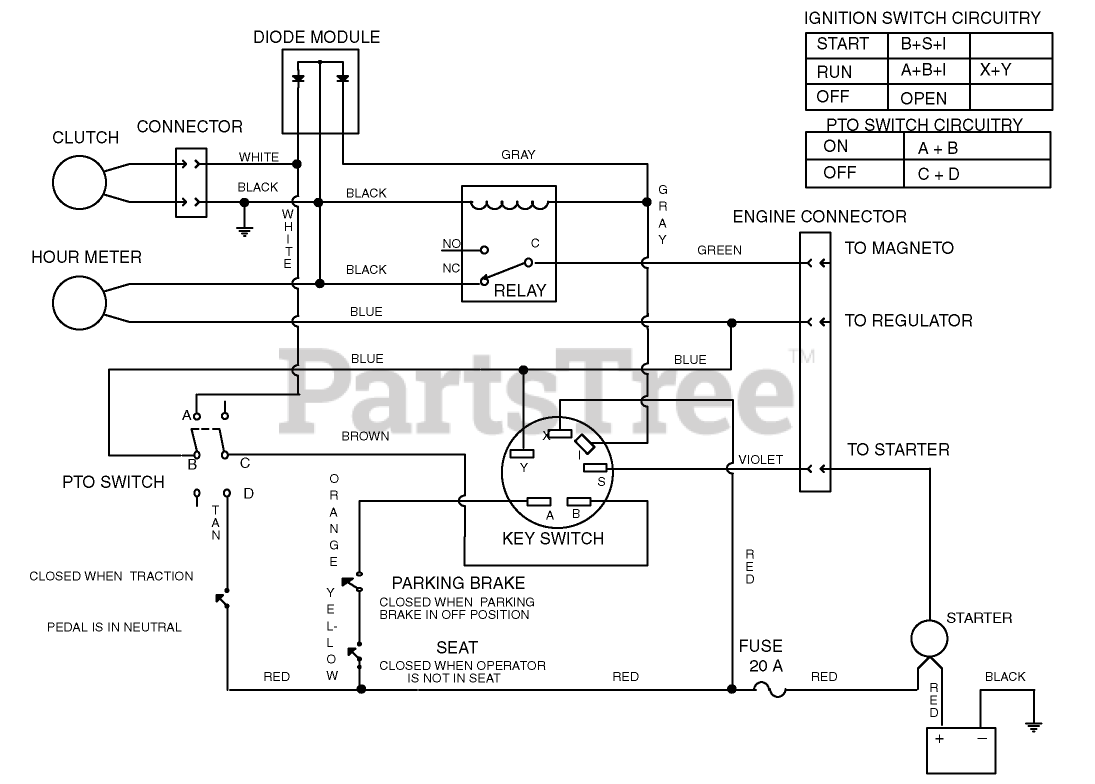

ELECTRIC SCHEMATIC Parts Diagram

  • Title

Toro 94-5848

WIRE HARNESS PL120

Note: Not illustrated

$

$

Not available

Toro 94-5849

DIODE - CIRCUIT BOARD

Note: Not illustrated

$

$

Not available
