30612 TE (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) CRANKCASE (CH20QS PS64556 KOHLER) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

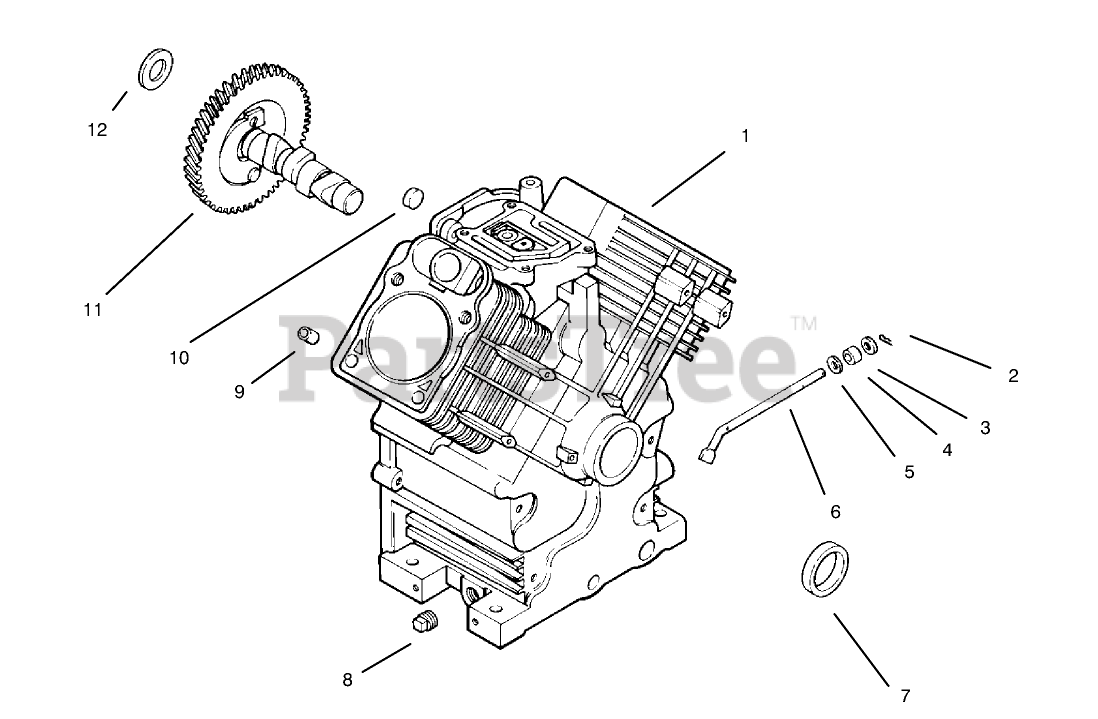

CRANKCASE (CH20QS PS64556 KOHLER) Parts Diagram

  • Title

1

Cylinder block (Use Miniblock 24 782 01-S)

$

$

Not available

2

Kohler 12 380 04-S

Pin-Hitch

$2.49

$

Usually ships in 2-5 days

0

3

Kohler X-25-102-S

WASHER-FLAT (1/4)

$2.49

$

In Stock, Qty 6

0

4

Kohler 12 032 01-S

Seal-Cross Shaft, Governor

$4.99

$

In Stock, Qty 10

0

5

Kohler X-25-63-S

WASHER-FLAT (1/4)

$2.49

$

In Stock, only 3 left!

0

6

Kohler 24 144 01-S

Shaft-Governor Cross

$

$

Not available

7

Kohler 24 032 01-S

SEAL-OIL
(Superseded to 24 032 19-S)

$7.49

$

In Stock, Qty 20+

0

8

Kohler X-75-10-S

Plug, Sq. Hd.
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

9

Kohler 12 380 03-S

Pin-Dowel

$

$

Not available

10

Kohler 52 139 09-S

PLUG-CUP

$4.99

$

In Stock, only 3 left!

0

11

Toro 24 012 05-S

Camshaft

$

$

Currently unavailable

12

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Not illustrated

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Not illustrated

$4.49

$

Usually ships in 2-5 days

0

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Not illustrated

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Not illustrated

$2.99

$

Usually ships in 2-5 days

0

Toro 24 782 01-S

Miniblock

Note: Not illustrated

$

$

Currently unavailable

Kohler 24 755 03-S

Gasket Set
(Superseded to 24 755 107-S)

Note: Not illustrated

$143.99

$

In Stock, only 3 left!

0
