30612 TE (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) AIR INTAKE/FILTRATION (CH20QS PS64556 KOHLER) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

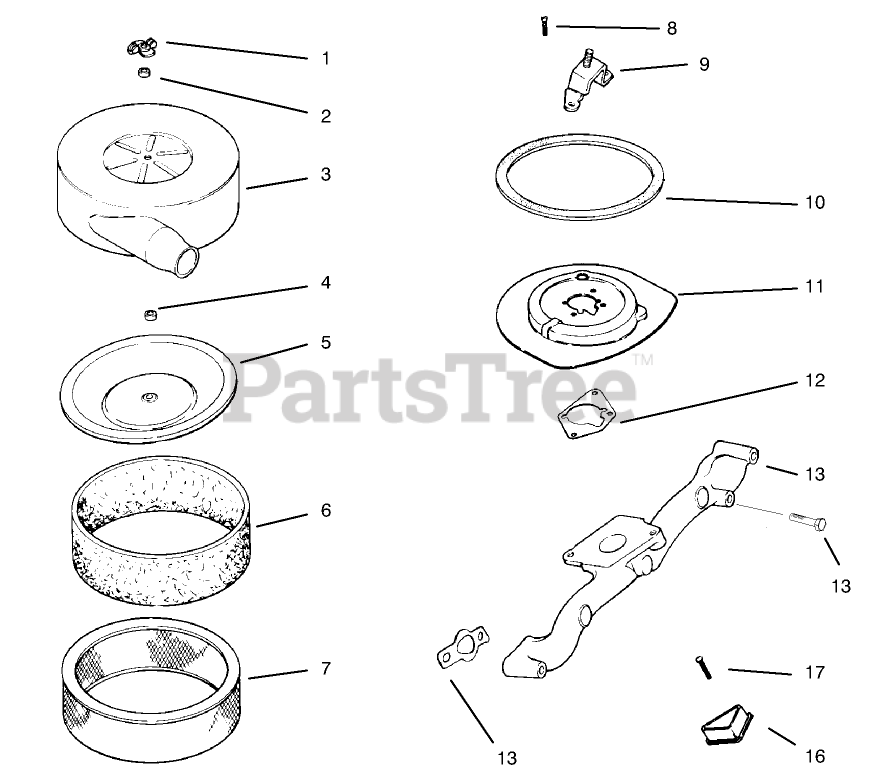

AIR INTAKE/FILTRATION (CH20QS PS64556 KOHLER) Parts Diagram

  • Title

1

Kohler 12 100 01-S

NUT-WING

$3.99

$

In Stock, only 4 left!

0

2

Kohler 230046-S

Seal

$6.49

$

In Stock, only 1 left!

0

3

Toro 24 096 34-S

Cover-Air Cleaner

$

$

Currently unavailable

4

Kohler 231032-S

Seal-Breather

$8.49

$

In Stock, only 2 left!

0

5

Kohler 24 096 01-S

COVER-AIR CLEANER, INNER

$16.99

$

In Stock, only 1 left!

0

6

Kohler 24 083 02-S

Element-Precleaner

$6.99

$

Usually ships in 2-5 days

0

7

Kohler 47 083 03-S

Element-Cleaner, Air

$23.99

$

In Stock, Qty 20+

0

8

Toro M-0639016-S

Screw

$

$

Currently unavailable

9

Kohler 24 126 22-S

Bracket-Air Cleaner
(Superseded to 24 126 207-S)

$13.99

$

Usually ships in 2-5 days

0

10

Toro 24 032 07-S

Seal-Air Cleaner

$

$

Currently unavailable

11

Kohler 24 094 05-S

Base-Air Cleaner
(Superseded to 24 094 91-S)

$71.99

$

Usually ships in 2-5 days

0

12

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

$2.99

$

In Stock, Qty 20+

0

13

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 9

0

14

Toro M-0639055-S

Screw

$

$

Currently unavailable

15

Kohler 24 164 14-S

Manifold-Intake

$229.99

$

Usually ships in 2-5 days

0

16

Kohler 24 096 17-S

COVER-HOUSING, BLOWER
(Superseded to 24 096 160-S)

$4.99

$

In Stock, only 2 left!

0

17

Kohler 15 086 09-S

Screw

$

$

Not available

Toro 24 113 17-S

Decal-Maintenance

Note: Not illustrated

$

$

Currently unavailable
