30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 230000001 - 230999999) (2003) VAVLE ASSEMBLY NO. 54-0090 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

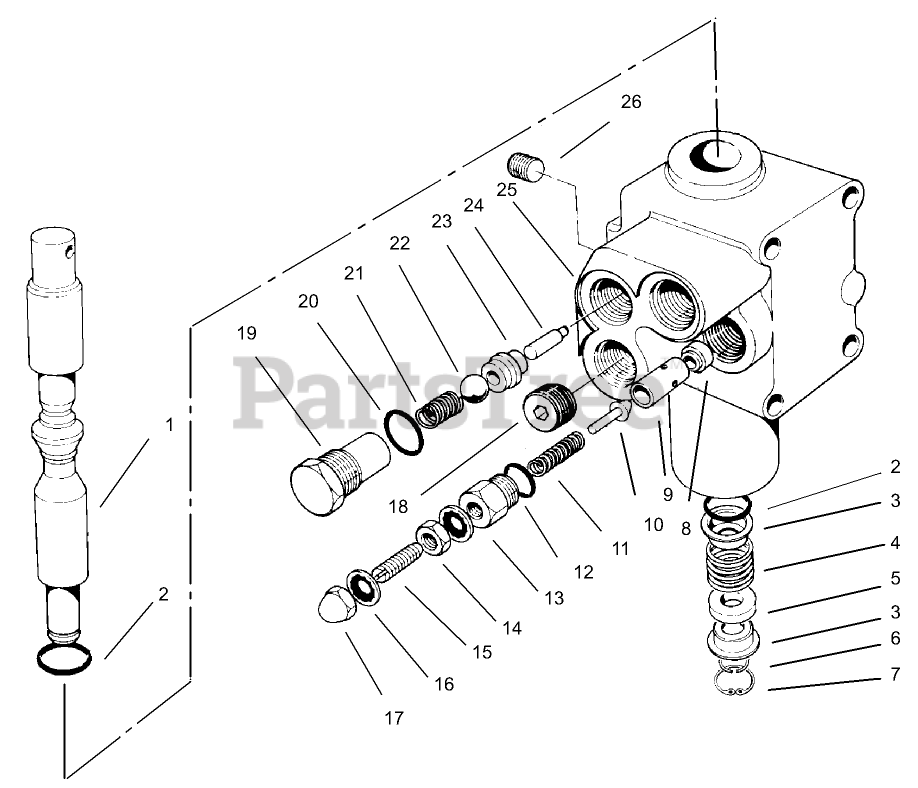

VAVLE ASSEMBLY NO. 54-0090 Parts Diagram

  • Title

1

Toro 54-0260

SPOOL

$

$

Not available

2

Toro 22-8500

O-RING

$19.99

$

Usually ships in 3-6 days

0

3

Toro 22-8380

RETAINER

$23.99

$

Usually ships in 3-6 days

0

4

Toro 22-8410

SPRING

$20.99

$

Usually ships in 3-6 days

0

5

Toro 27-5200

FLOAT SPACER

$

$

Not available

6

Toro 22-8480

RING-SNAP

$59.99

$

Usually ships in 3-6 days

0

7

Toro 22-8490

RING-SNAP

$8.49

$

Usually ships in 3-6 days

0

8

Toro 55-3640

SEAT-RELIEF

$

$

Not available

9

Guide

Note: Not serviced separately

$

$

Not available

10

Plunger

Note: Not serviced separately

$

$

Not available

11

Spring

Note: Not serviced separately

$

$

Not available

12

Seal-Dust

Note: Not serviced separately

$

$

Not available

13

Cap-PV Adjustment

Note: Not serviced separately

$

$

Not available

14

Nut

Note: Not serviced separately

$

$

Not available

15

Screw-Set

Note: Not serviced separately

$

$

Not available

16

Stat O Seal

Note: Not serviced separately

$

$

Not available

17

Nut-Acorn

Note: Not serviced separately

$

$

Not available

18

Toro 28-1120

PLUG

$

$

Not available

19

Toro 22-8330

PLUG

$60.99

$

Usually ships in 3-6 days

0

20

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

21

Toro 22-8340

SPRING

$21.99

$

Usually ships in 3-6 days

0

22

Toro 22-8350

BALL

$13.99

$

Usually ships in 3-6 days

0

23

Toro 22-8370

SEAT-VALVE

$99.99

$

Usually ships in 3-6 days

0

24

Toro 22-8360

PIN

$53.99

$

Usually ships in 3-6 days

0

25

Body

Note: Not serviced separately

$

$

Not available

26

Toro 55-3650

PLUG

$38.99

$

Usually ships in 3-6 days

0

Toro 55-3630

Adjustable Relief Valve (Incl. Ref. #9-17)

Note: Not illustrated

$

$

Not available
