30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 230000001 - 230999999) (2003) ELECTRICAL SCHEMATIC Parts Diagram

Groundsmaster Rear-Engine Riding Mower

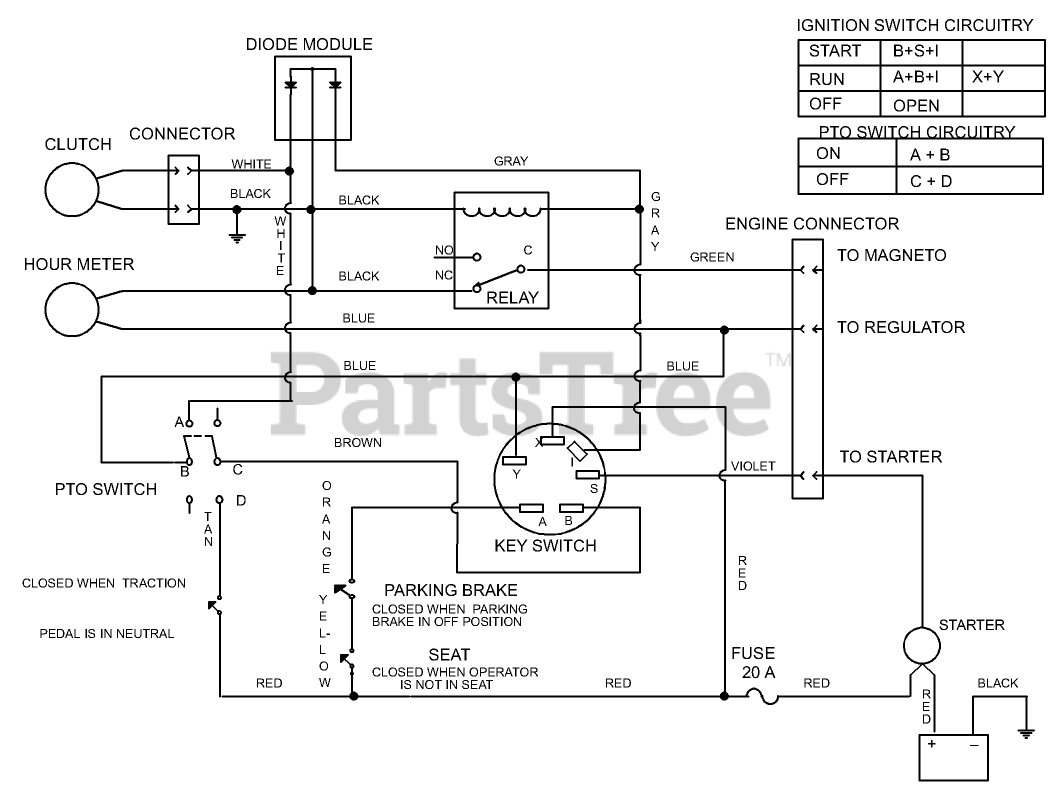

ELECTRICAL SCHEMATIC Parts Diagram

  • Title

Toro 94-5848

WIRE HARNESS PL120

$

$

Not available

Toro 94-5849

DIODE - CIRCUIT BOARD

$

$

Not available
