30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) DIFFERENTIAL ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

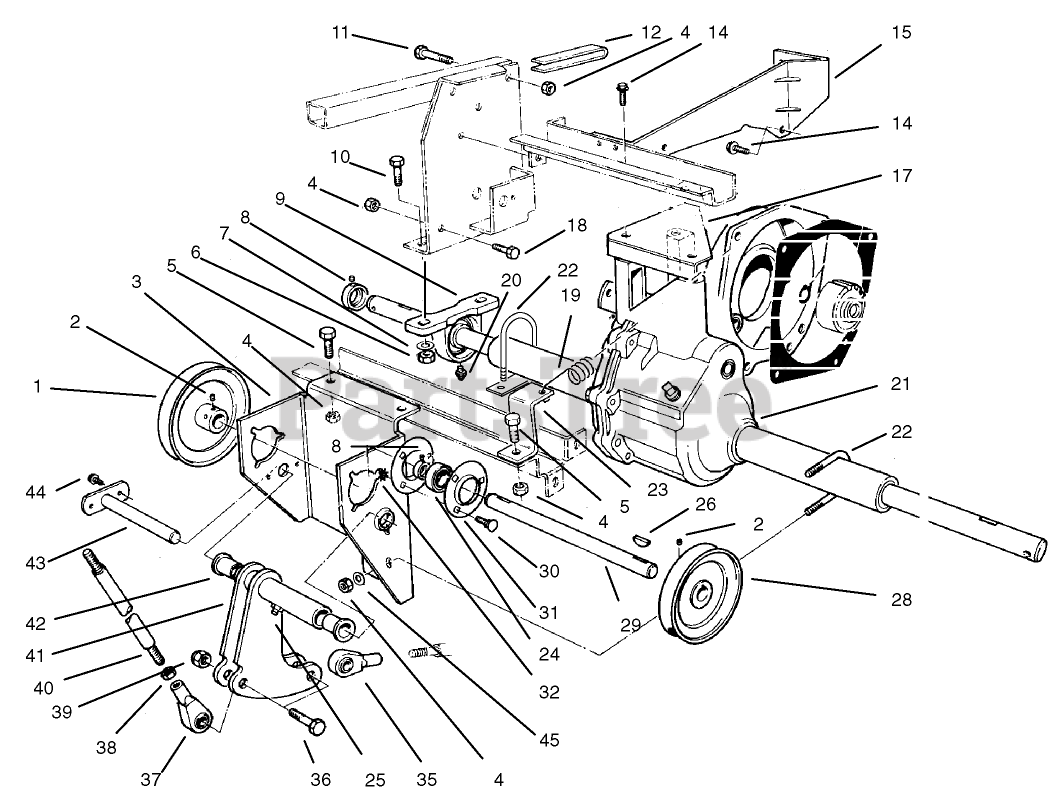

DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title

1

Toro 54-2390

JACKSHAFT OUTPUT PULLEY

$

$

Not available

2

Toro 3241-1

SCREW-SET, SQH

$28.99

$

Usually ships in 3-6 days

0

3

Toro 60-9130

Bracket-Jackshaft
(Superseded to 60-9130-03)

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

7

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3245-35

SCREW-SET, HSH

$0.99

$

In Stock, Qty 10

0

9

Toro 72-4060

BEARING - PILLOW BLOCK

$

$

Not available

10

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

12

Toro 80-3750

TUBE SPACER

$

$

Not available

14

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

15

Toro 59-1620

Bracket-Transaxle
(Superseded to 59-1620-03)

$

$

Not available

17

Toro 60-8990

TRANSAXLE PLATE

$

$

Not available

18

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 76-9430

SPRING-EXTENSION
(Superseded to 76-9430-03)

$33.99

$

Usually ships in 3-6 days

0

20

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

21

Toro 98-2850

ASM-TRANSAXLE/DIFF.

$

$

Not available

22

Toro 54-8970

U-BOLT

$

$

Not available

23

Toro 92-6273

Bracket-Spring
(Superseded to 92-6273-03)

$

$

Not available

24

Toro 251-288

BEARING-BALL

$100.99

$

In Stock, only 3 left!

0

25

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

26

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

28

Toro 54-2380

JACKSHAFT INPUT PULLEY

$109.99

$

Usually ships in 3-6 days

0

29

Toro 54-1600

JACKSHAFT

$215.99

$

Usually ships in 3-6 days

0

30

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

31

Toro 251-341

FLANGE

$19.99

$

In Stock, only 2 left!

0

32

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

35

Toro 251-304

BALL JOINT LH

$89.99

$

Usually ships in 3-6 days

0

36

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

37

Toro 251-305

BALL JOINT RH

$89.99

$

In Stock, only 2 left!

0

38

Toro 3220-4

NUT-JAM

$2.99

$

Usually ships in 3-6 days

0

39

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

40

Toro 54-1490

Rod-Steering
(Superseded to 54-1490-03)

$

$

Not available

41

Toro 54-2060

Bellcrank Assembly (Incl. Ref. #25 & 42)

$

$

Not available

42

Toro 46-6680

BUSHING PM

$27.99

$

In Stock, only 1 left!

0

43

Toro 59-1470

Shaft-Bellcrank
(Superseded to 59-1470-03)

$

$

Not available

44

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

45

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
