30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) BLOWER HOUSING AND BAFFLES ASSEMBLY KOHLER ENGINE CH20QS-64678 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

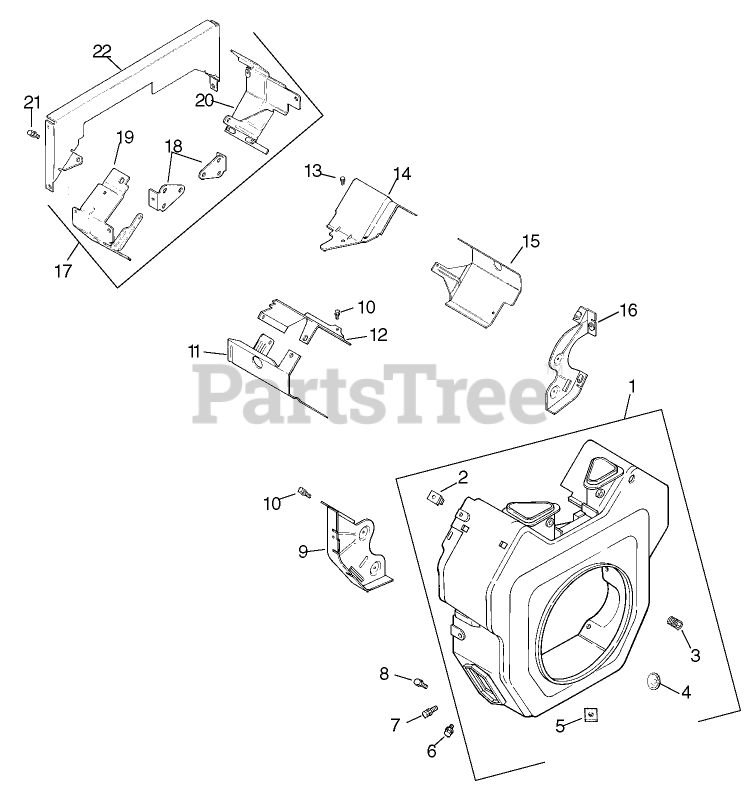

BLOWER HOUSING AND BAFFLES ASSEMBLY KOHLER ENGINE CH20QS-64678 Parts Diagram

  • Title

1

Kohler 24 027 83-S

Blower Housing ASM (Incl. Ref. # 2-5 &24 755 90-S)
(Superseded to 24 027 488-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$178.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 9

0

3

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 139 16-S

PLUG-BUTTON (9/16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

5

Kohler 24 100 02-S

NUT-PLASTIC

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

6

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

7

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

8

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 5

0

9

Kohler 24 146 16-S

Plate-Backing (No. 2 Side)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 14

0

11

Kohler 24 063 20-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$28.99

$

Usually ships in 2-5 days

0

12

Kohler 24 063 17-S

Baffle-Valley (No. 2 Side)
(Superseded to 24 063 70-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

Usually ships in 2-5 days

0

13

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 2 left!

0

14

Kohler 24 063 59-S

BAFFLE-VALLEY (No. 1 SIDE)
(Superseded to 32 063 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

15

Kohler 24 063 58-S

Baffle-Barrel, Cylinder (No. 1 Side)
(Superseded to 24 063 85-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 1 left!

0

16

Kohler 24 146 20-S

Plate-Backing (No. 1 Side)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

17

Kohler 24 755 14-S

Q-duct Kit (Incl. Ref. #18-22)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$262.99

$

Usually ships in 2-5 days

0

20

Kohler 24 063 12-S

Baffle-Air, Ducted (No. 1 side)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$64.99

$

Usually ships in 2-5 days

0

21

Kohler M-639010-S

Screw-HF (M6x1.0x10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 24 146 04-S

Plate-Air Backing, Ducted

Note: Call PartsTree Customer Service for more information on Kohler Parts

$55.99

$

Usually ships in 2-5 days

0

Kohler 24 755 90-S

Access Hole Plug Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$13.99

$

Usually ships in 2-5 days

0

Kohler 24 755 90-S

Access Hole Plug Kit

Note: Not illustrated

$13.99

$

Usually ships in 2-5 days

0

Kohler 24 113 95-S

Decal-20 HP

Note: Not illustrated

$17.99

$

In Stock, only 1 left!

0

Kohler 24 113 95-S

Decal-20 HP

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 1 left!

0

28

2412604

Bracket-Support

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

29

Kohler 24 063 13-S

Baffle-Air, Ducted (No. 2 side)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$61.99

$

Usually ships in 2-5 days

0
